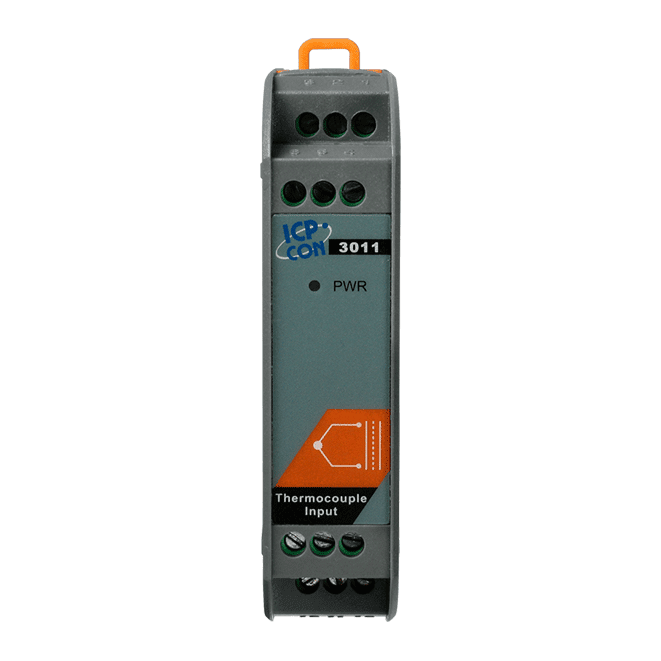

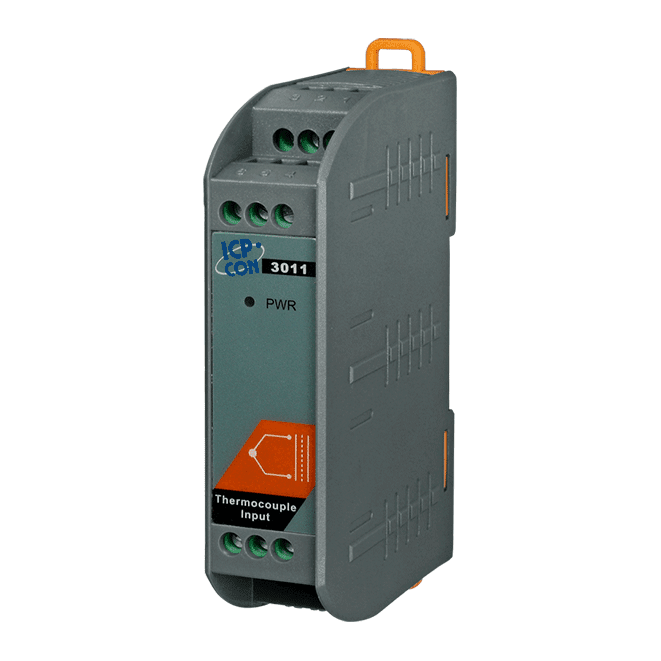

SG-3011-G Thermocouple Input Signal Conditioner, 1-ch, 24-bit
Single-channel thermocouple input signal conditioner with 24-bit A/D, 0 ~ 10 VDC or 0 ~ 20 mA analogue output, 1000 VDC three-way isolation and DIN-rail mounting.
- Single thermocouple input supporting J, K, T, E, R, S, B, N, C, L, M and L2 (DIN43710) types
- 24-bit A/D converter with thermocouple linearisation and cold junction compensation
- Adjustable CJC offset and open thermocouple detection
- 0 ~ 10 VDC or 0 ~ 20 mA analogue output with 12-bit resolution
- Three-way isolation rated at 1000 VDC
- Switch-selectable response time of 0.5 ms or 100 ms
1.315,46 kr. pr. stk.
| 1–9 stk. | 1.315,46 kr. | |
|---|---|---|
| 10–30 stk. | 1.270,61 kr. | −3 % |
| 31+ stk. | 1.248,19 kr. | −5 % |
Produktinformation "SG-3011-G Thermocouple Input Signal Conditioner, 1-ch, 24-bit"
The SG-3011-G CR converts a thermocouple signal into a standard analogue output for control and monitoring systems. A microprocessor-controlled 24-bit A/D converter samples both the thermocouple and the cold junction input, and linearisation and cold junction compensation are applied to the reading.
The module accepts a broad selection of thermocouple types, including J, K, T, E, R, S, B, N, C, L, M and L2 (DIN43710). Its CJC offset can be adjusted, open thermocouple detection is provided, and the response time can be switched between 0.5 ms and 100 ms.
- Three-way isolation rated at 1000 VDC, with an internally isolated supply for the input and output circuitry
- Reverse polarity protection on the power input (+10 ~ +30 VDC)
Its DIN-rail housing and an operating range of -25 ~ +75 °C make it suitable for building, factory and machine automation, as well as remote maintenance, remote diagnosis and test equipment.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Thermocouple Input Signal Conditioner |
|---|---|
| Isolation: | 1000 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Isolation | |
|---|---|
| Three-way Isolation | 1000 VDC |
| Analog Input | |
| Channels | 1 |
| Type | J, K, T, E, R, S, B, N, C, L, M, L2 |
| Resolution | 24-bit |
| Accuracy | ±0.2% of FSR |
| Input Impedance | 1.8 MΩ |
| Open Wire Detection | Yes |
| Offset Mode | Adjustable CJC Offset |
| Response Time | 100 ms |
| Analog Output | |
| Channels | 1 |
| Type | 0 ~ 10 VDC, 0 ~ 20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Current Output Wiring | <50 Ω |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.44 W |
| Mechanical | |
| Dimensions (mm) | 25 mm x 114 mm x 70 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
