TPD-280-M2 2.8-inch Touch HMI Device, RS-485 Modbus RTU
2.8-inch resistive touch HMI with one RS-485 port, Modbus RTU support and +12 ~ 48 VDC terminal-block power, for wall-mounted building and home automation control.
- 2.8-inch 240 x 320 TFT colour touch screen with 65535 colours and resistive touch
- One RS-485 port including Self-Tuner, with Modbus RTU protocol support
- Free HMIWorks development tool with GUI design and Ladder Designer
- C language environment and support for custom communication protocols
- Buzzer, rotary switch and reset button built in
- Terminal-block power input at +12 ~ 48 VDC, 1.5 W consumption
1.375,25 kr. pr. stk.
| 1–9 stk. | 1.375,25 kr. | |
|---|---|---|
| 10–30 stk. | 1.337,88 kr. | −3 % |
| 31+ stk. | 1.307,99 kr. | −5 % |
Produktinformation "TPD-280-M2 2.8-inch Touch HMI Device, RS-485 Modbus RTU"

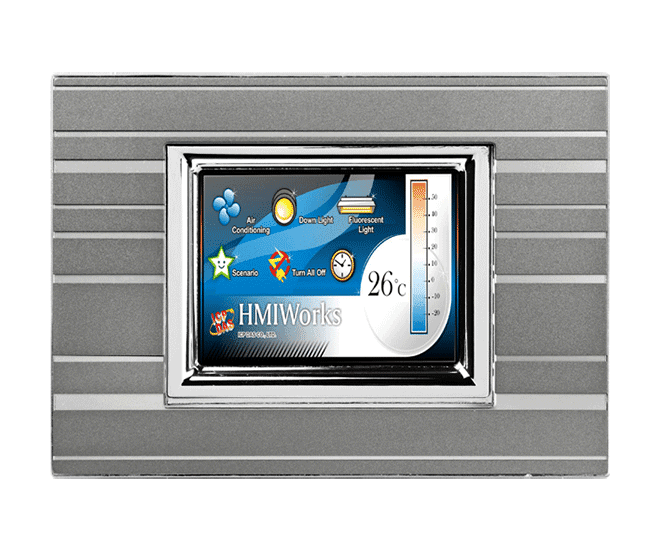

TPD-280-M2 CR is a compact 2.8-inch touch HMI for building and home automation, where it can replace mechanical switches with an intelligent control pad. Its 240 x 320 colour TFT screen with resistive touch shows user-defined screens, and it installs on a standard wall-mount outlet.
The unit has one RS-485 port with Self-Tuner support and speaks Modbus RTU. Engineers can build applications with the free HMIWorks tool, using its GUI design environment, the Ladder Designer for PLC-style programming, or C language for custom communication protocols. The manufacturer states that Ladder Designer can be learned in no more than 30 minutes.
- Buzzer, rotary switch and reset button on the front panel

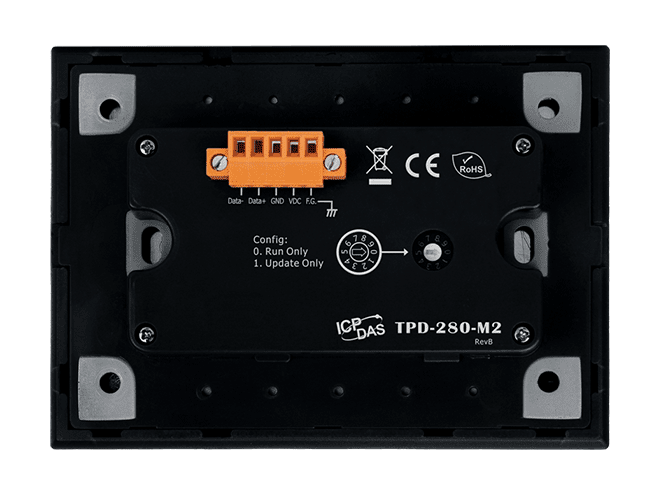

- Powered from a terminal block at +12 ~ 48 VDC, consuming 1.5 W
- Front panel rated IP40, operating range -20 ~ +70 °C

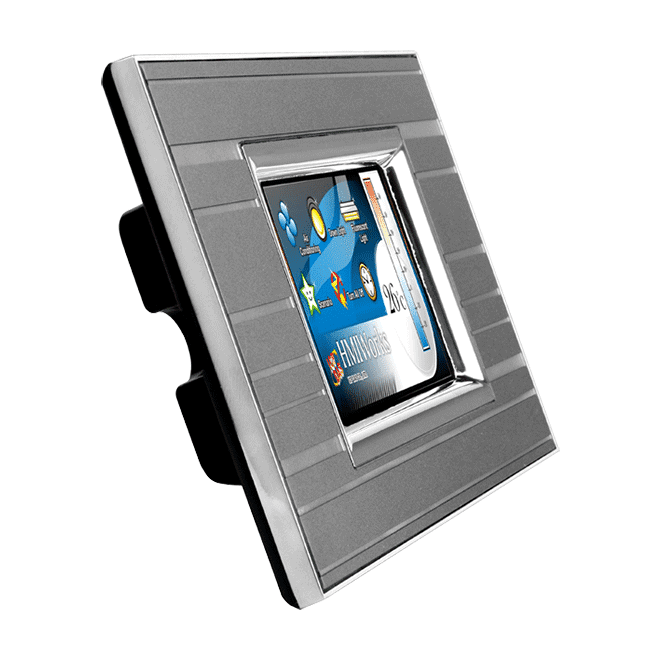

The gray cover variant (CR) is the one sold here. It measures 127 mm x 92 mm x 31 mm and is intended for wall mounting.
Applications
- Building automation control panels
- Home automation control pads
- Replacing mechanical switches with intelligent touch controls
| Product type: | Touch HMI |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Wall |
| Housing: | Gray cover |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Display | |
| Type | LCD 2.8” TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Resistive Touch |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| COM Ports | |
| Ports | 1 x RS-485 (including Self-Tuner) |
| Power | |
| Consumption | 1.5 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 127 mm x 92 mm x 31 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
