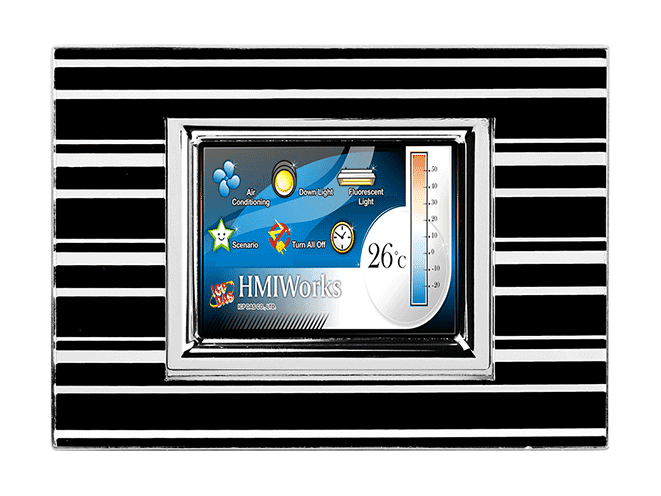

TPD-283-M3 2.8-inch Touch HMI with Ethernet (PoE), Black Cover
The TPD-283-M3 CR is a 2.8-inch colour touch HMI with a 10/100 Base-TX PoE Ethernet port and Modbus TCP support, designed for building and home automation.
- 2.8-inch TFT colour touch screen, 240 x 320 resolution, 65535 colours
- Power over Ethernet to IEEE 802.3af, Class 1 (48 V), with one RJ-45 10/100 Base-TX port
- Modbus TCP protocol support
- Free HMIWorks development tool with Ladder Designer and C language environment
- Supports custom communication protocols written in C

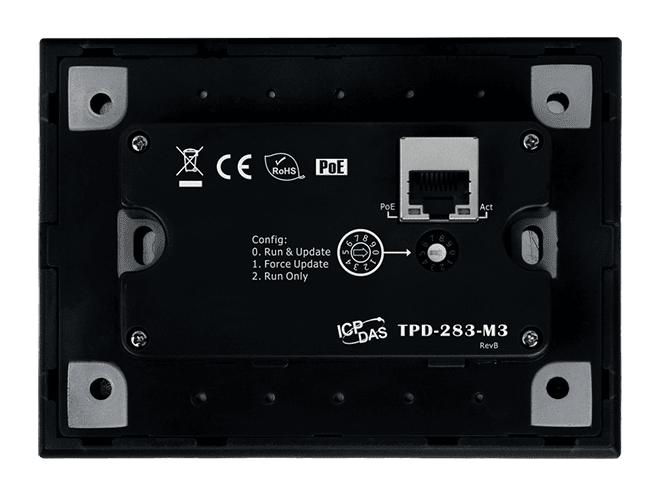

- Built-in buzzer, rotary switch and reset button
1.315,46 kr. pr. stk.
| 1–9 stk. | 1.315,46 kr. | |
|---|---|---|
| 10–30 stk. | 1.270,61 kr. | −3 % |
| 31+ stk. | 1.248,19 kr. | −5 % |
Produktinformation "TPD-283-M3 2.8-inch Touch HMI with Ethernet (PoE), Black Cover"

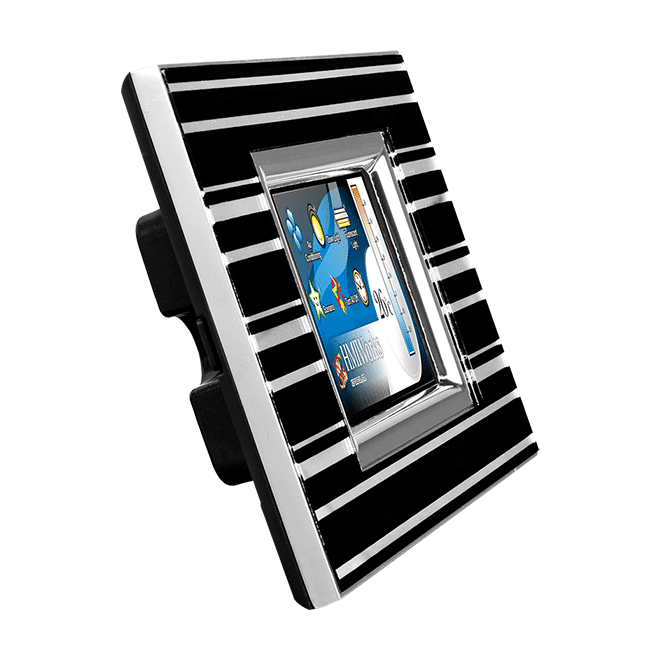

The TPD-283-M3 CR is a compact touch HMI with a black cover, built around a 2.8-inch TFT colour touch screen with 240 x 320 resolution and 65535 colours. It is powered over Ethernet to IEEE 802.3af Class 1 (48 V), drawing 1.5 W, so a single RJ-45 cable handles both power and network connection. It is intended for building and home automation, where a small wall-mounted panel can replace conventional mechanical switches with programmable control.
Application programs can be developed with the free HMIWorks tool. PLC users can work in Ladder Designer, while IT users can work in the C language environment, which also supports custom communication protocols written in C. The manufacturer states that creating an application program with Ladder Designer takes no more than 30 minutes to learn.
The unit measures 127 mm x 92 mm x 30 mm and is designed for wall mounting. Its front panel is rated IP40, and it operates from -20 ~ +70°C with storage between -30 ~ +80 °C and humidity of 10 ~ 90% RH, non-condensing.
Applications
- Building automation
- Home automation
- Replacing mechanical switches with intelligent control pads
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP |
| Ports: | 1 |
| PoE: | Yes (IEEE 802.3af) |
| Power input: | PoE, 48 V |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Wall-mount |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Display | |
| Type | LCD 2.8” TFT (Resolution 240 x 320, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 160 cd/m2 |
| Touch Panel | Resistive Touch |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| Power | |
| Consumption | 1.5 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Mechanical | |
| Dimensions (mm) | 127 mm x 92 mm x 30 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
