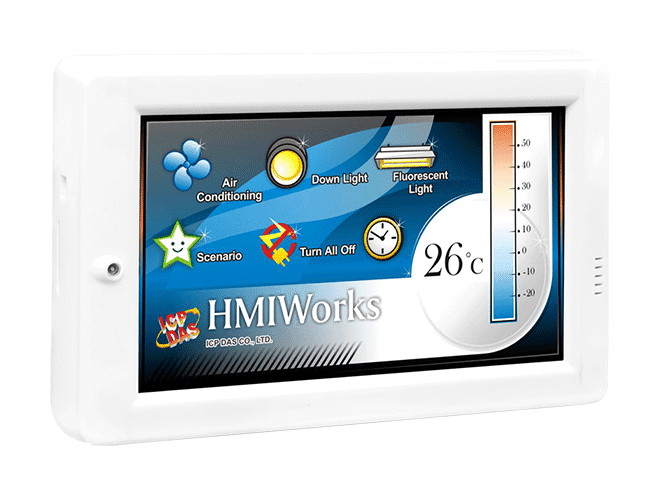

TPD-430-H 4.3-inch Touch HMI Device with RS-485 and RTC, US Outlet Box
A 4.3-inch colour touch HMI with a 480 x 272 TFT display, RS-485 with Modbus RTU support and a real time clock, designed for wall mounting in a US outlet box.
- 4.3-inch colour TFT touch screen, 480 x 272 resolution, 65,535 colours
- One RS-485 port with Modbus RTU protocol support
- Real time clock (RTC) on board
- Free HMIWorks development tool with Ladder Designer and C language support
- Wall mounting in a US outlet box, powered from +12 to 48 VDC
- Buzzer, rotary switch and reset button
1.681,70 kr. pr. stk.
| 1–9 stk. | 1.681,70 kr. | |
|---|---|---|
| 10–30 stk. | 1.629,38 kr. | −3 % |
| 31+ stk. | 1.599,48 kr. | −5 % |
Produktinformation "TPD-430-H 4.3-inch Touch HMI Device with RS-485 and RTC, US Outlet Box"
TPD-430-H CR is a compact touch HMI for engineers who want to replace mechanical switches with intelligent control pads. Its 4.3-inch TFT touch screen offers 480 x 272 resolution and 65,535 colours, allowing user-defined picture frames and clear status displays in a small footprint.
The unit provides one RS-485 port with Modbus RTU protocol support and includes a real time clock. It is powered from a terminal block at +12 to 48 VDC and is supplied in the variant suited to a US outlet box, with a buzzer, rotary switch and reset button on board.
Application programs can be developed with the free HMIWorks tool. Ladder Designer suits PLC-oriented users, while C language support covers custom communication protocols and IT-focused development. The manufacturer states that Ladder Designer can be learned in no more than 30 minutes.
Applications
- Replacing mechanical switches with intelligent wall-mounted control pads
- Operator control and status display in compact installations
| Product type: | Touch HMI |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | Wall-mount (US outlet box) |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 4.3” TFT(Resolution 480 X 272, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 1 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2.5 W |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 126 mm x 82 mm x 24 mm |
| Installation | Wall Mounting (Suitable for the outlet box in United States) |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
