TPD-433-H-EU 4.3-inch Touch HMI with PoE Ethernet and RS-485
A 4.3-inch colour touch HMI with PoE Ethernet, RS-485, RTC and Modbus TCP/RTU support, designed to be wall-mounted in a European 86 x 86 mm outlet box.
- 4.3-inch 480 x 272 TFT colour touch screen with 65535 colours and 400 cd/m2 brightness
- PoE powered via IEEE 802.3af Class 1, with an alternative +12 ~ 48 VDC terminal block supply
- 1 x RS-485 port with Self-Tuner and 1 x RJ-45 10/100 Base-TX Ethernet port
- Modbus TCP and Modbus RTU support, plus custom C-language communication protocols
- Real-time clock, buzzer, rotary switch and reset button on the main unit
- HMIWorks development tool with Ladder Designer and C language environment, supplied free of charge
1.808,76 kr. pr. stk.
| 1–9 stk. | 1.808,76 kr. | |
|---|---|---|
| 10–30 stk. | 1.756,44 kr. | −3 % |
| 31+ stk. | 1.719,07 kr. | −5 % |
Produktinformation "TPD-433-H-EU 4.3-inch Touch HMI with PoE Ethernet and RS-485"

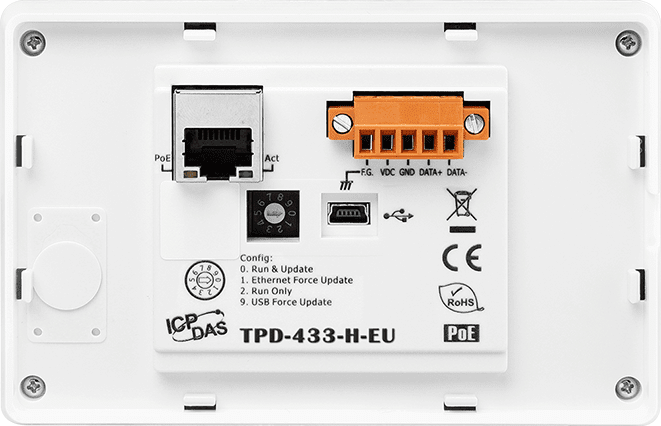

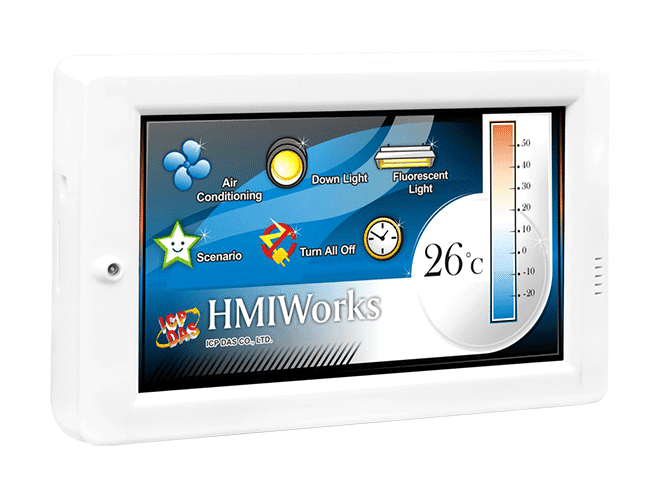

The TPD-433-H-EU CR is a compact touch HMI built around a 4.3-inch 480 x 272 TFT colour touch screen. It combines a 32-bit RISC CPU, 16 MB SDRAM and 16 MB Flash with an RS-485 port and a 10/100 Base-TX Ethernet port that can be powered over PoE, making it suitable for local operator panels where a single cable carries both power and network.
Programming options cover both PLC-oriented and C-language workflows. HMIWorks, which is supplied free of charge, includes Ladder Designer for users familiar with ladder logic and a C language environment for custom applications, and the unit also supports a custom communication protocol written in C. Modbus TCP and Modbus RTU are listed among its supported protocols.
The unit has a real-time clock, a buzzer, a rotary switch, a reset button and a status LED. It is dimensioned for mounting in the European 86 x 86 mm outlet box and operates from either PoE (IEEE 802.3af, Class 1) or a +12 ~ 48 VDC terminal block supply, with an operating range of -20 ~ +50 °C.
Applications
- Wall-mounted control pads replacing mechanical switches
- Local operator panels for machine or building control
- Modbus-based device monitoring and control at the panel level
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet, RS-485, USB |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | 1 x RS-485, 1 x RJ-45 |
| PoE: | IEEE 802.3af |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | Wall (86 x 86 mm outlet box) |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 4.3” TFT(Resolution 480 X 272, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 1 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2.5 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 126 mm x 92 mm x 29 mm |
| Installation | Wall Mounting (Suitable for the European 86mm x 86mm outlet box) |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
