TPD-433-M2 4.3-inch Touch HMI Device, RS-485/RS-232, Ethernet PoE
Compact 4.3-inch colour touch HMI with RS-485, RS-232, PoE Ethernet, real-time clock and USB download port, designed for wall-mounted control pads.
- 4.3-inch 480 x 272 TFT colour touch screen, 65535 colours, 400 cd/m2 brightness
- RJ-45 10/100 Base-TX Ethernet with PoE (IEEE 802.3af, Class 1)
- 1 x RS-485 (including Self-Tuner) and 1 x RS-232 (3-pin) serial ports
- Modbus TCP/RTU protocol support plus custom C-language communication protocols
- Free HMIWorks development tool with Ladder Designer and C language environment
- Real-time clock, buzzer, rotary switch and reset button
2.174,99 kr. pr. stk.
| 1–9 stk. | 2.174,99 kr. | |
|---|---|---|
| 10–30 stk. | 2.115,20 kr. | −3 % |
| 31+ stk. | 2.070,35 kr. | −5 % |
Produktinformation "TPD-433-M2 4.3-inch Touch HMI Device, RS-485/RS-232, Ethernet PoE"

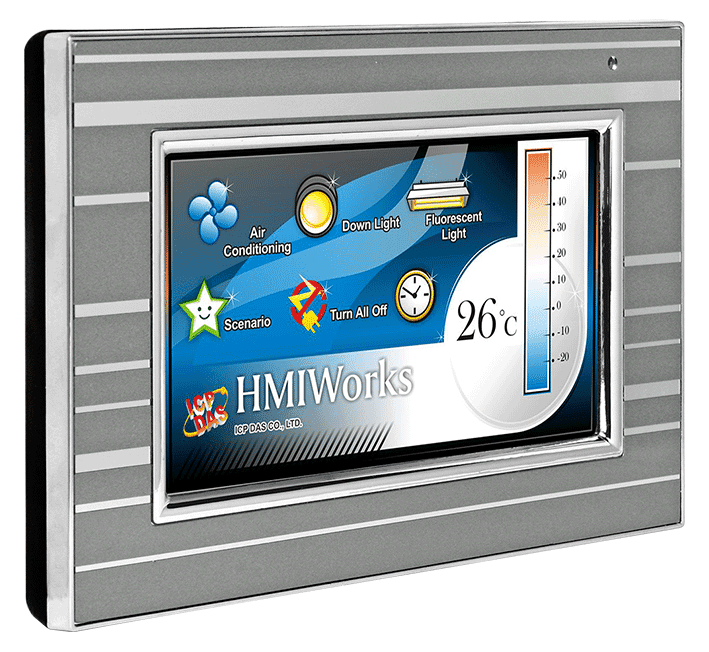

TPD-433-M2 CR is a grey 4.3-inch touch HMI with a 480 x 272 TFT display showing 65535 colours. It is built for operator panels that replace mechanical switches with intelligent control, and it mounts directly on a wall in a compact 140 mm x 98 mm x 30 mm housing.

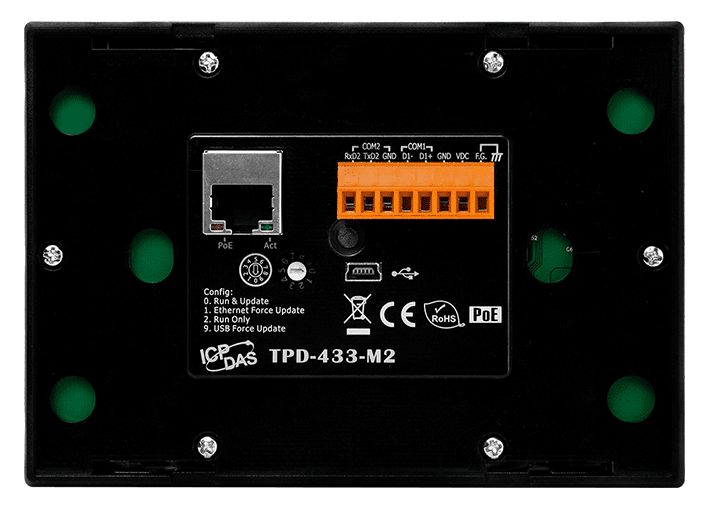

Communication is covered by one RJ-45 10/100 Base-TX Ethernet port, one RS-485 port with Self-Tuner and one 3-pin RS-232 port. The unit supports Modbus TCP and Modbus RTU, and it can also run a custom communication protocol written in C. Power can come from IEEE 802.3af PoE (Class 1, 48 V) or from a +12 ~ 48 VDC terminal block.
Programming is handled with the free HMIWorks tool. Ladder Designer suits PLC users, while C language support is available for those who prefer text-based coding. A real-time clock and a USB 1.1 client port for firmware updates complete the feature set.
Applications
- Replacing mechanical switches with intelligent control pads
- Wall-mounted operator panels for machine and equipment control
| Product type: | Touch HMI |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | 3 |
| PoE: | Yes (IEEE 802.3af) |
| Power input: | +12 ~ 48 VDC or PoE |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | Wall |
Specifikationer
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 16 MB SDRAM/16 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 4.3” TFT(Resolution 480 X 272, 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 1 LED |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Reset Button | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-485 (including Self-Tuner) 1 x RS-232 (3-pin) |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 2.5 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 140 mm x 98 mm x 30 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: IP40 |
| Environment | |
| Operating Temperature | -20 ~ +50°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
