U-7517M OPC UA I/O Module, 8-ch AI, 4-ch DO, Dual-port Ethernet PoE
OPC UA I/O module with 8 differential analogue inputs and 4 isolated open-collector digital outputs, linking to OPC UA, MQTT and RESTful API systems over a dual-port PoE switch.
- OPC UA Server/Client, MQTT Client and RESTful API (HTTP and HTTPS) running simultaneously
- 8 differential analogue input channels, 16-bit resolution, voltage and current ranges selectable by jumper
- 4 isolated open-collector digital outputs (sink type), 700 mA per channel with short-circuit protection

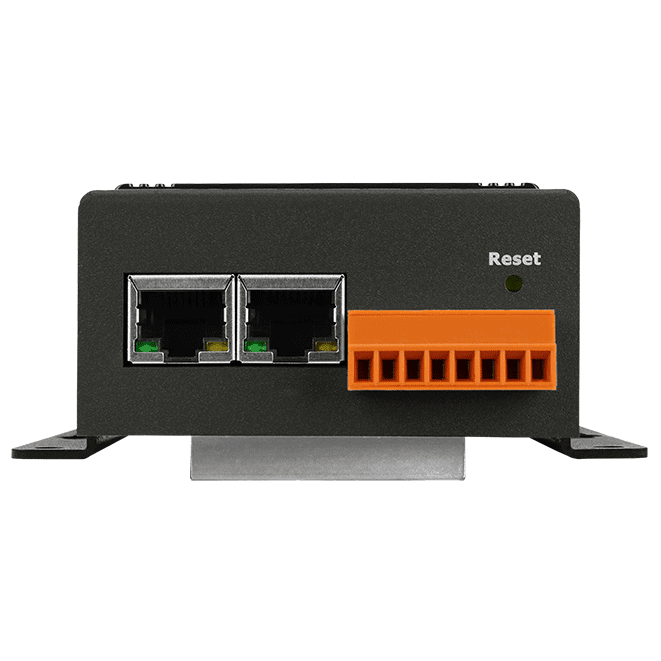

- Dual-port 10/100 Base-TX Ethernet switch for daisy-chain topology
- IEEE 802.3af, Class 3 Power over Ethernet, or +12 ~ +48 VDC terminal block power
- Rule setting (IF, THEN, ELSE), schedule and scaling functions
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "U-7517M OPC UA I/O Module, 8-ch AI, 4-ch DO, Dual-port Ethernet PoE"

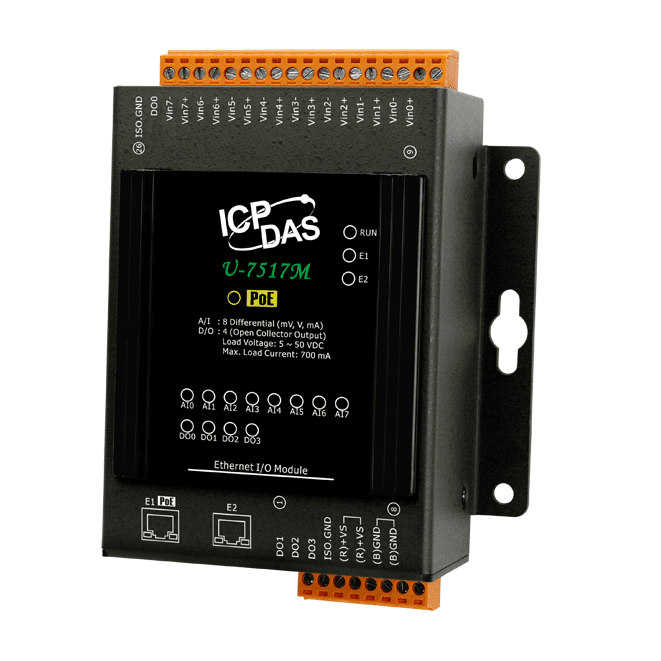

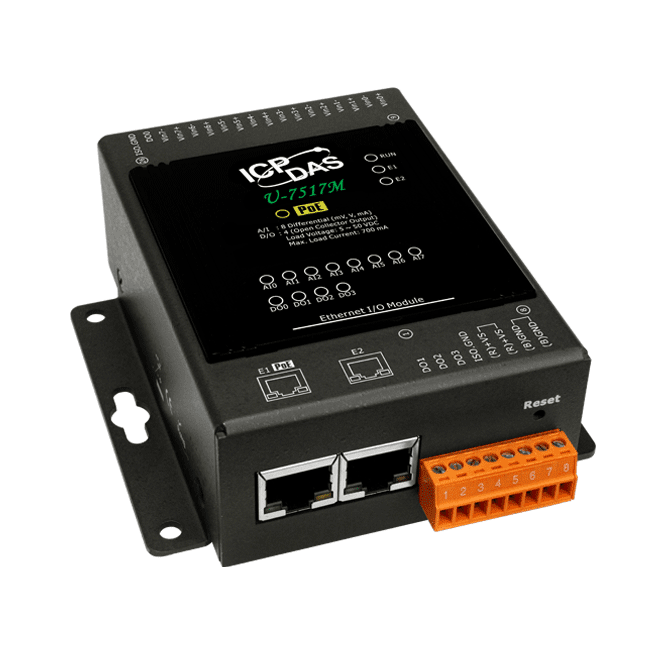

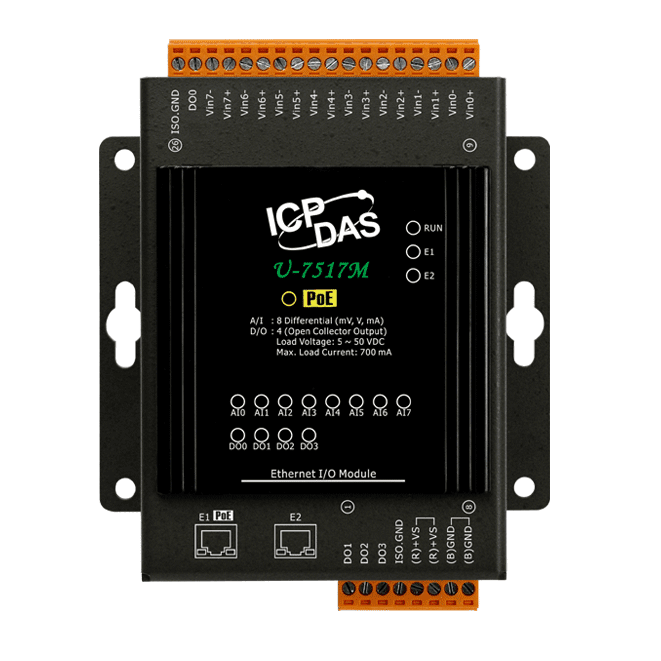

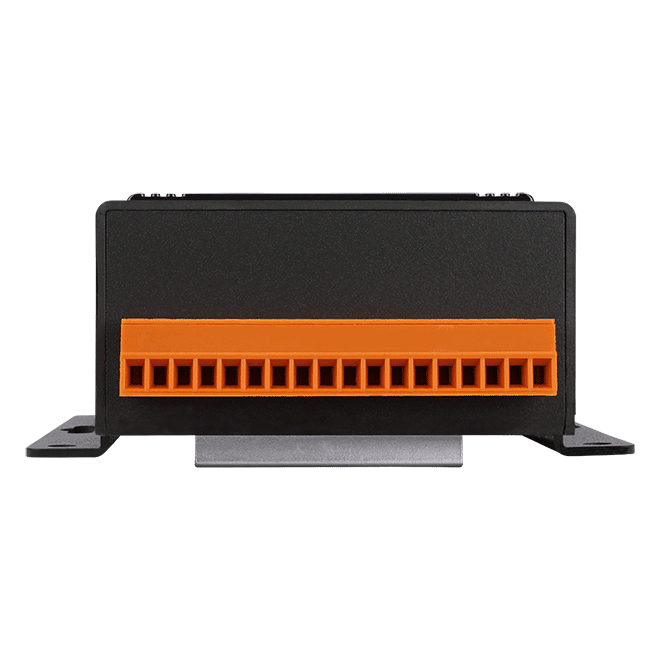

The U-7517M CR is an OPC UA I/O module that combines eight analogue inputs and four digital outputs with a built-in dual-port Ethernet switch. The switch allows devices to be daisy-chained, which reduces cabling and the number of external switches needed in a network.
Powering is handled through Power over Ethernet to IEEE 802.3af, Class 3, so the module can be supplied from a PoE network or from a +12 ~ +48 VDC terminal block. Analogue inputs support voltage and current ranges selectable by jumper, with scaling to convert raw signals into more readable values. Data can be published over OPC UA Server/Client, MQTT Client and RESTful API, which can run simultaneously.
On-board logic rules (IF, THEN, ELSE), scheduled actions and I/O trigger messages help with local automation and device tracking. Configuration, control and monitoring are done through the built-in web interface, with no additional app required.

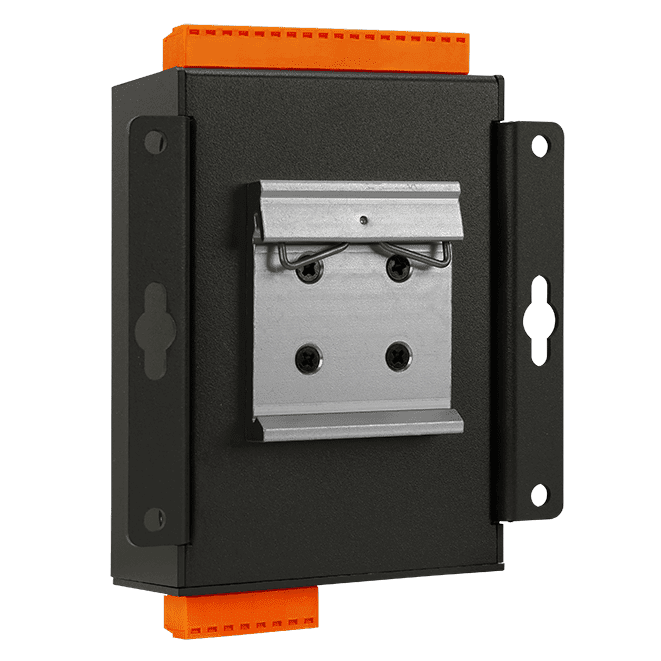

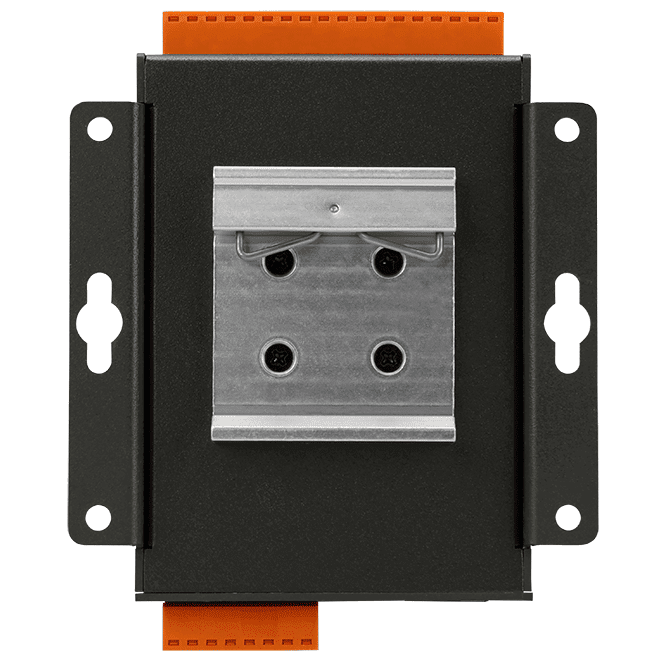

- Suitable for DIN-rail installation in control cabinets
Applications
- Transmitting I/O values to cloud or field control systems for display, analysis or control strategy
- Distributed analogue sensing and digital switching over Ethernet
- OPC UA-based data acquisition and integration
| Product type: | OPC UA I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Digital outputs: | 4 |
| Analog inputs: | 8 |
| Ports: | 2 |
| PoE: | IEEE 802.3af, Class 3 |
| Isolation: | 2500 VDC (I/O) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication(Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Input | |
| Channels | 8 (Differential) |
| Type | Voltage, Current |
| Range | ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V ±20 mA, 0 to 20 mA, 4 to 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 samples/second (Total) Fast Mode: 50 samples/second (Total) |
| Input Impedance | Voltage: 2 MΩ Current: 125 Ω |
| Common Mode Rejection | 86 dB (min.) |
| Normal Mode Rejection | 100 dB |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For 4 ~ 20 mA only |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Digital Output | |
| Channels | 4 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 700 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 6.2 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
