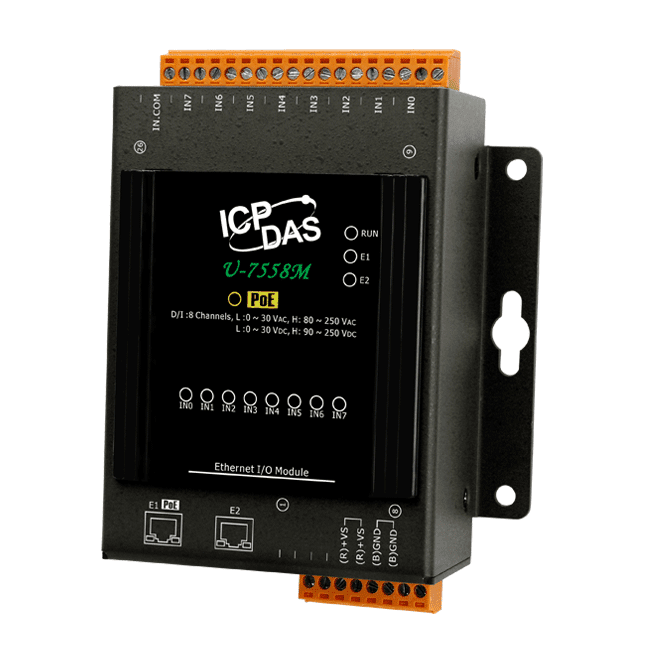

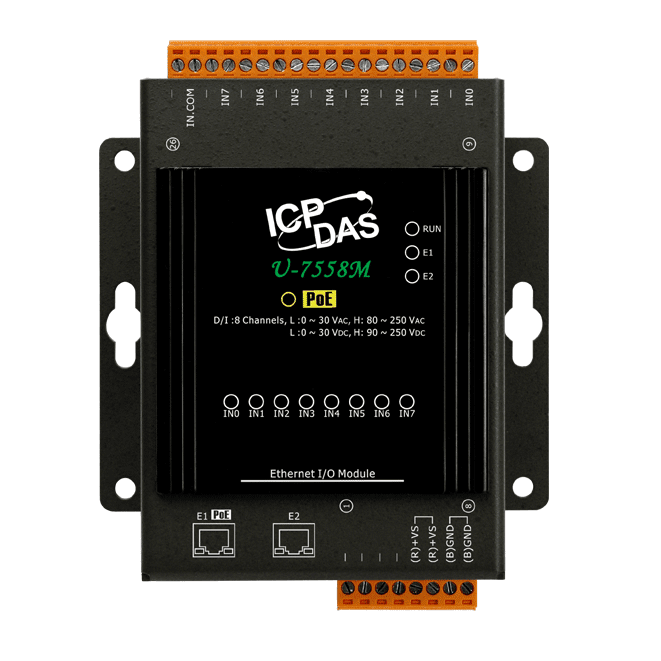

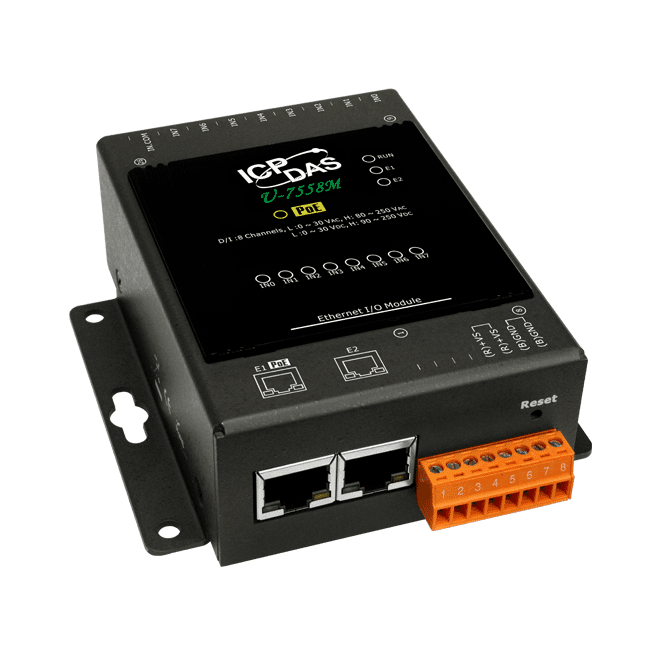

U-7558M OPC UA I/O Module, 8-ch AC/DC Digital Input with PoE
OPC UA I/O module with 8 AC/DC digital inputs, a dual-port Ethernet switch for daisy-chaining and IEEE 802.3af PoE. Supports OPC UA, MQTT and RESTful API at the same time.
- OPC UA Server / Client, MQTT Client and RESTful API, executable simultaneously
- 8 AC/DC digital input channels, wet contact, sink/source type
- Dual-port 10/100 Base-TX Ethernet switch for daisy-chain topology
- IEEE 802.3af (Class 3) Power over Ethernet, or +12 ~ +48 VDC terminal block power
- IF, THEN, ELSE logic rules, scheduled rule execution and I/O trigger messages
- Built-in web server user interface, with IoTstar cloud management software support
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "U-7558M OPC UA I/O Module, 8-ch AC/DC Digital Input with PoE"
The U-7558M is an Ethernet I/O module that brings eight AC/DC digital input channels onto an OPC UA network. Its OPC UA Server and Client, MQTT Client and RESTful API (HTTP or HTTPS) functions can run simultaneously, so the same input data can feed a field control system and a cloud platform without extra gateways.
A built-in dual-port 10/100 Base-TX switch lets units be daisy-chained along a line, reducing cable runs and the number of external switches. The module can be powered over Ethernet under IEEE 802.3af (Class 3) or from a +12 ~ +48 VDC terminal block, which helps where a separate supply point is inconvenient.
Configuration, control and I/O monitoring are handled through the built-in web user interface in a standard browser, with no additional app required. Logic rules (IF, THEN, ELSE), scheduled rule execution and I/O trigger messages written to CSV files or sent as line messages support local automation and device tracking.
Applications
- Sending digital input status to cloud systems for display and analysis
- Feeding I/O values to field control systems over OPC UA
- Remote digital input monitoring on daisy-chained Ethernet networks
- PoE-powered input points in distributed machine or panel installations
| Product type: | OPC UA I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | MQTT, OPC UA, RESTful API |
| Digital inputs: | 8 |
| Ports: | 2 |
| PoE: | IEEE 802.3af (Class 3) |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Protocol | • OPC UA Server / Client • MQTT Client • RESTful API |
| Function | • Web Interface for Configuration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting |
| CPU Module | |
| CPU | 32-bit CPU (400 MHz) |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal ±8 kV Air for random point |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input/Counter | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | 80 ~ 250 VAC ±90 ~ ±250 VDC |
| OFF Voltage Level | 30 VAC (max.) ±30 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 150 kΩ |
| Overvoltage Protection | 300 VAC |
| Ethernet | |

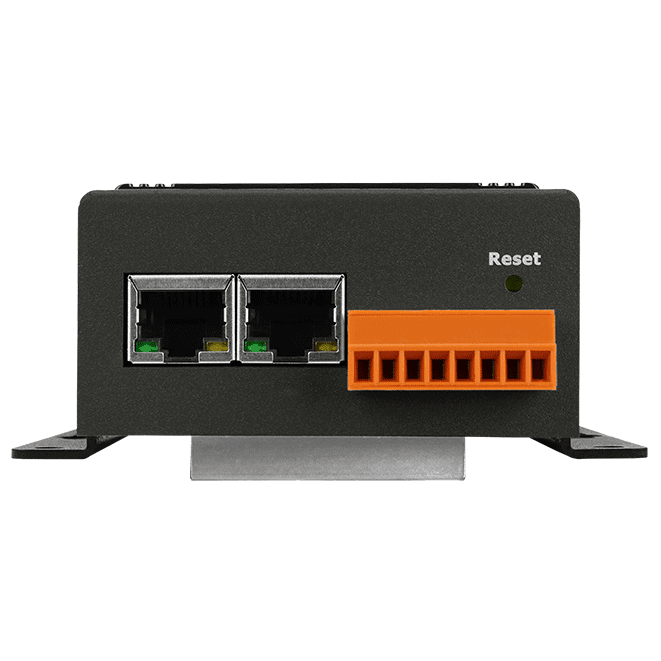

| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 5.7 W |
| Powered from PoE | IEEE 802.3af, Class3 |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 97 x 120 x 47 (W x L x H) |

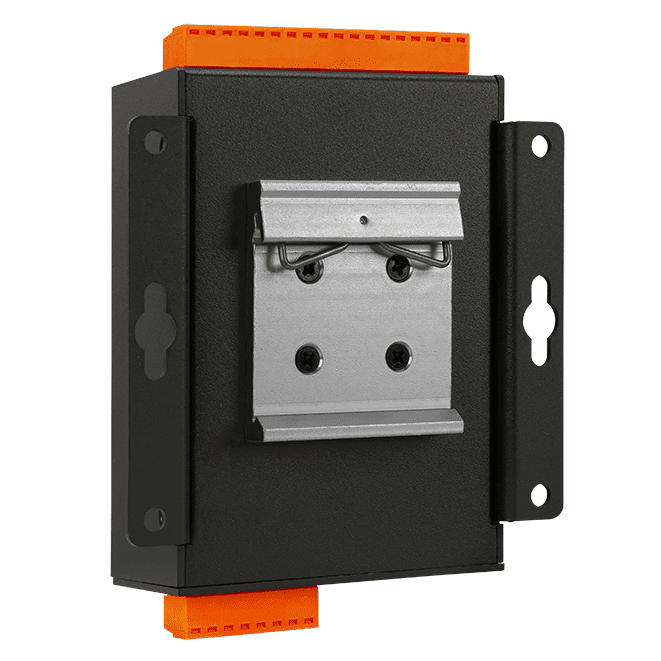

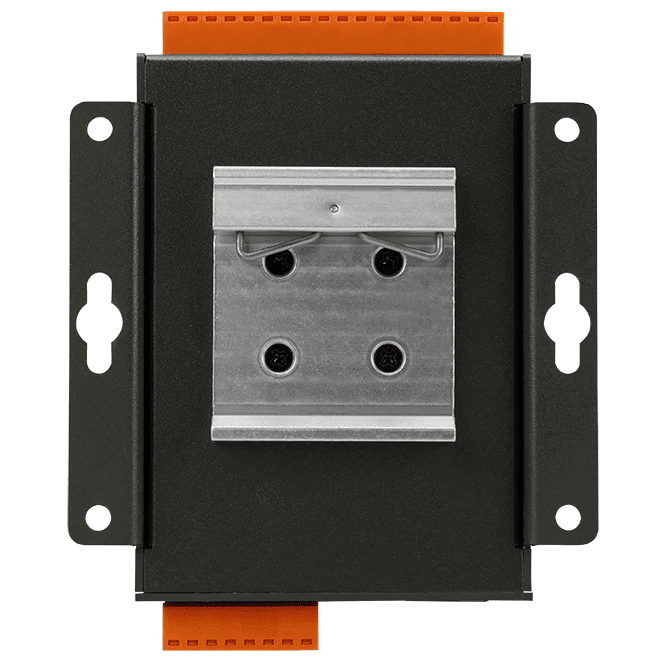

| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
