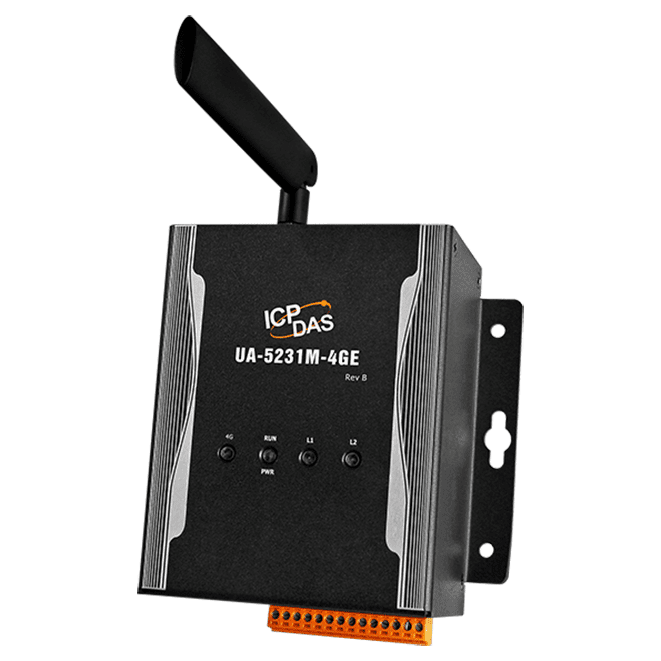

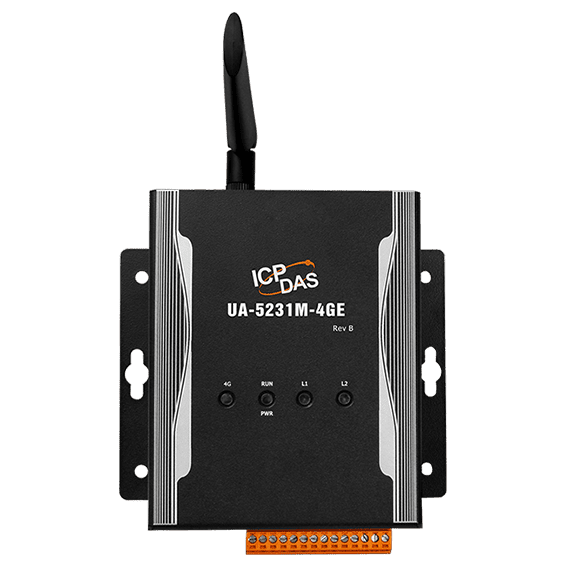

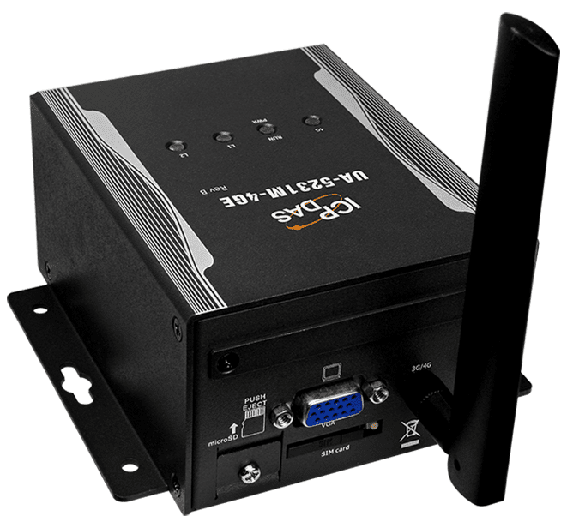

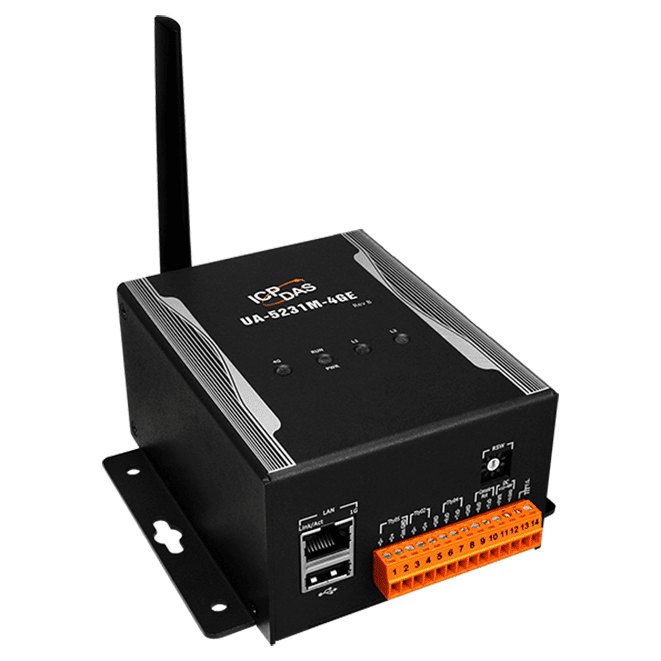

UA-5231M-4GE IIoT Communication Server, 1 Ethernet Port, 4G LTE, Metal Case
IIoT communication server with one Ethernet port and 4G LTE (FDD) connectivity. It gathers I/O data via Modbus and EtherNet/IP and republishes it over OPC UA, MQTT and SNMP or to cloud platforms.
- 4G LTE (FDD) communication with 1 x 10/100/1000 Base-TX Ethernet port in a metal case
- Gateway from Modbus TCP, Modbus RTU/ASCII and EtherNet/IP to OPC UA, MQTT and SNMP, enabled at the same time
- Simultaneous writing of I/O data to a remote MS SQL, MySQL or MariaDB database and a local microSD logger
- Offline data recovery mechanism for the remote database
- Built-in MQTT broker including WebSocket support
- Cloud integration with Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, plus IFTTT notifications
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "UA-5231M-4GE IIoT Communication Server, 1 Ethernet Port, 4G LTE, Metal Case"
The UA-5231M-4GE CR is an IIoT communication server for linking field devices with IT systems. It reads data from remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII and EtherNet/IP, then makes that data available simultaneously over OPC UA, MQTT and SNMP. The 4G LTE (FDD) link allows it to reach cloud services and remote sites where a wired network is not available.
For data logging, the unit can write I/O values to a remote MS SQL, MySQL or MariaDB database, supporting one database connection with up to 1000 tags, while also saving records to a local microSD card in CSV format. An offline data recovery mechanism is included for the remote database. Security features include HTTPS, an OpenVPN client, SNMP v3, communication encryption, and a dynamic blocklist and whitelist.
Cloud connectivity covers Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, while IFTTT logic can trigger app notifications. A PID function is available for local control logic. The metal case is designed for DIN-rail mounting and is rated for an operating temperature of -25 ~ +75°C. This variant is intended for Asia only, except China.
Applications
- Connecting remote I/O modules and controllers to MES, ERP and SCADA systems
- Uploading I/O data to Microsoft Azure, Amazon Web Services, IBM Cloud or ThingSpeak
- Logging I/O data to remote SQL databases with local backup on microSD
- Triggering mobile app notifications from machine events via IFTTT
| Product type: | IIoT communication server |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB 2.0 host |
| Protocol: | EtherNet/IP, Modbus TCP, MQTT, OPC UA, SNMP |
| Ports: | 1 |
| Isolation: | 2500 VDC (RS-485) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| Data Logger | |
|---|---|
| Local Data Logger | Record I/O data, and save to the local MicroSD card in CSV format. |
| Remote Database | Record I/O data, and send to the remote database of MS SQL, MySQL and MariaDB. Support keeping 1 database connection, with a max. 1000 Tags. |
| Software | |
| OS | Linux Kernel 3.2.14 |
| Protocol | · OPC UA Server · MQTT Broker/Client · Modbus TCP Master · Modbus RTU/ASCII Master · EtherNet/IP Scanner · SNMP Agent · OpenVPN Client |
| Function | · PID Function · Internal Module |
| IoT Service Integration | · Microsoft Azure · Amazon Web Services · IBM Cloud · ThingSpeak · IFTTT |
| Main Unit | |
| CPU | ARM CPU, 1.0 GHz |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 8 GB eMMC microSD socket with one 32 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Display | |
| Signal | VGA (Analog RGB), reserved |
| LED Indicators | |
| Status | 1 x PWR/RUN 2 x User Defined LEDs 1 x 4G |
| 3G System | |
| Data Transmission Rate | DC-HSPA+ Download: Max. 42 Mbps; Upload: Max 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2 Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4 Mbps |
| Frequency Band | WCDMA 850/900/2100 MHz |
| 4G System | |
| Data Transmission Rate | Download Max 100 Mbps; Upload Max 50 Mbps |
| Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 |
| I/O Expansion | |
| I/O Type | 1 Expansion Port. Support 1 optional XV-board to expand I/O or RS-485 ports(For Rev.B version only) (*1) |
| HMI | |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (console) 1 x RS-232 2 x RS-485 (2500VDC Isolated) |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format | 7N1, 7E1, 7O1, 7N2, 7E2, 7O2, 8N1, 8E1, 8O1, 8N2, 8E2, 8O2 (Among which, Modbus RTU is available in: 8N1, 8E1, 8O1, 8N2) |
| USB | |
| Connector | 1 x 2.0 host |
| Power | |
| Input Range | +12 ~ +48 VDC |
| Consumption | 6.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
