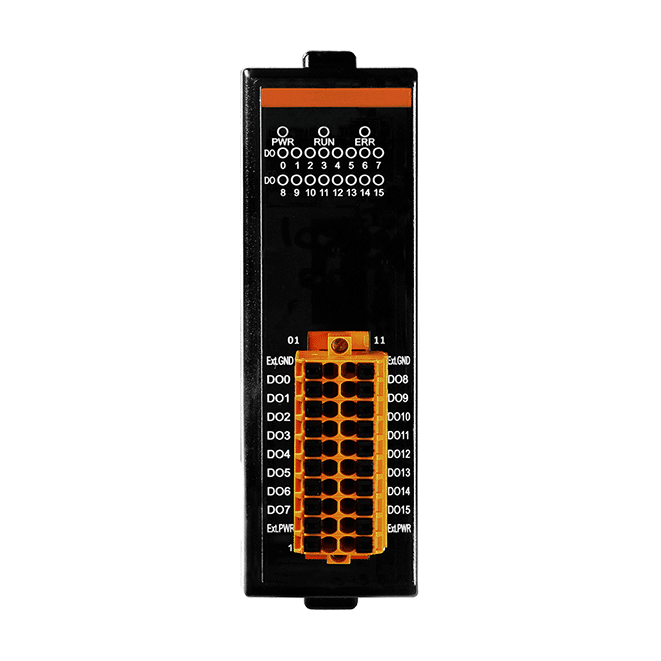

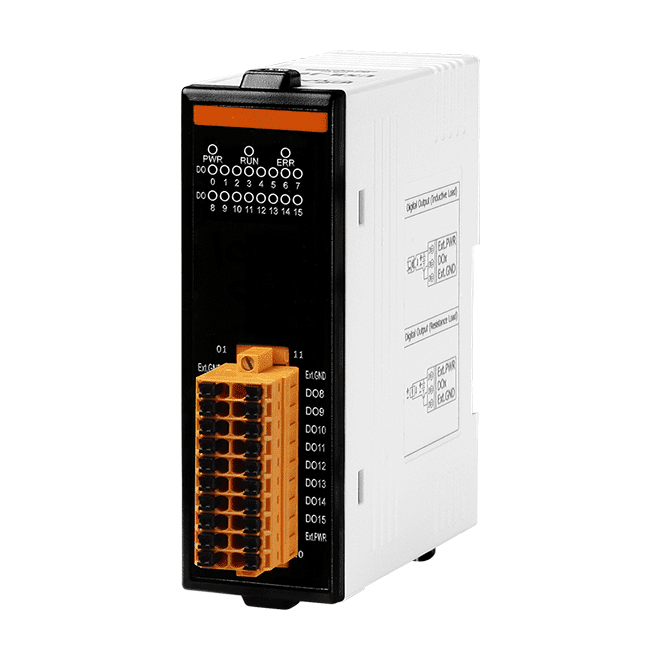

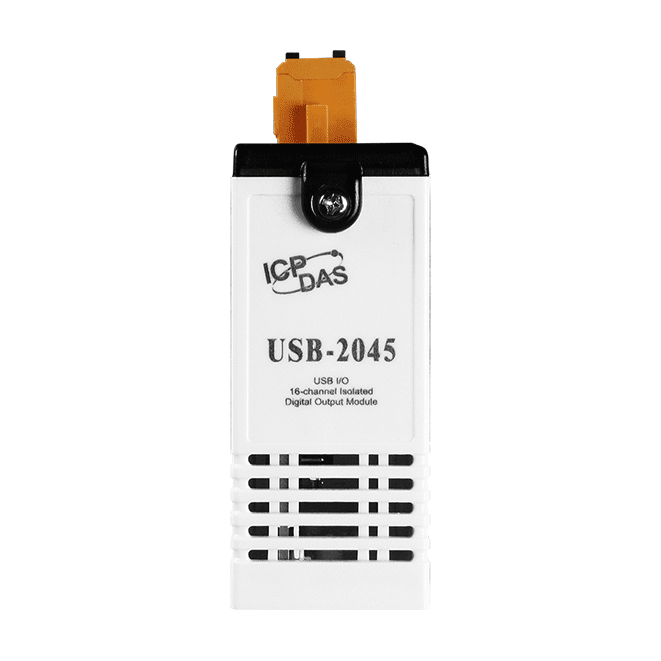

USB-2045 USB I/O Module, 16-ch Digital Output (Sink NPN)
16-channel NPN sink digital output USB I/O module with 1.4 A overload protection. USB bus powered, driver-free plug-and-play, and a 1.5M USB cable is included.
- 16-channel sink-type (NPN) open collector digital output, 650 mA per channel
- Overload protection at 1.4 A with short-circuit protection
- Programmable power-on and safe values with hardware and software watchdogs
- USB bus powered with plug-and-play operation and no driver required
- 16 LED indicators for digital output status
- Lockable USB cable; 1.5M USB cable (CA-USB15) included
1.053,86 kr. pr. stk.
| 1–9 stk. | 1.053,86 kr. | |
|---|---|---|
| 10–30 stk. | 1.023,97 kr. | −3 % |
| 31+ stk. | 1.001,54 kr. | −5 % |
Produktinformation "USB-2045 USB I/O Module, 16-ch Digital Output (Sink NPN)"
USB-2045 CR is a USB 2.0 full-speed I/O module that adds 16 sink-type (NPN, open collector) digital outputs to a PC over a single USB connection. It is bus powered, so no external supply is needed for the module itself, and it works without a driver installation.
Each output channel handles up to 650 mA with overload protection at 1.4 A and short-circuit protection. Power-on and safe output values are programmable, and the module has both a hardware watchdog (1.6 second) and a programmable software watchdog. A safe state can be applied if communication fails, and 16 LED indicators show the status of the outputs.
A utility tool supports configuration and quick I/O testing, and an API library is provided for VB, C++, C#.NET, VB.NET and LabVIEW. The order includes a 1.5M USB cable (CA-USB15), and the cable can be locked in place.
Applications
- Automation
- Measurement and testing
- Laboratory research
- Testing equipment
| Product type: | USB I/O Module |
|---|---|
| Interface: | USB 2.0 Full-Speed |
| Digital outputs: | 16 |
| Power input: | USB bus powered |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | 1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) |
| EMS Protection | |
| ESD (IEC 61000-4-2) | 4 kV contact for each terminal 8 kV air for random point |
| LED Indicators | |
| Status | 3 x Power and Communication 16 x Digital Output |
| Digital Output | |
| Channels | 16 |
| Type | Open Collector, Sink (NPN) |
| Load Voltage | +3.5 ~ +50 VDC |
| Load Current | 650 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A (with short-circuit protection) |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| USB | |
| Specification | USB 2.0 Full-Speed (12Mbps) |
| Power | |
| Consumption | 1.2 W |
| Mechanical | |
| Dimensions (mm) | 33 x 110 x 96 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
