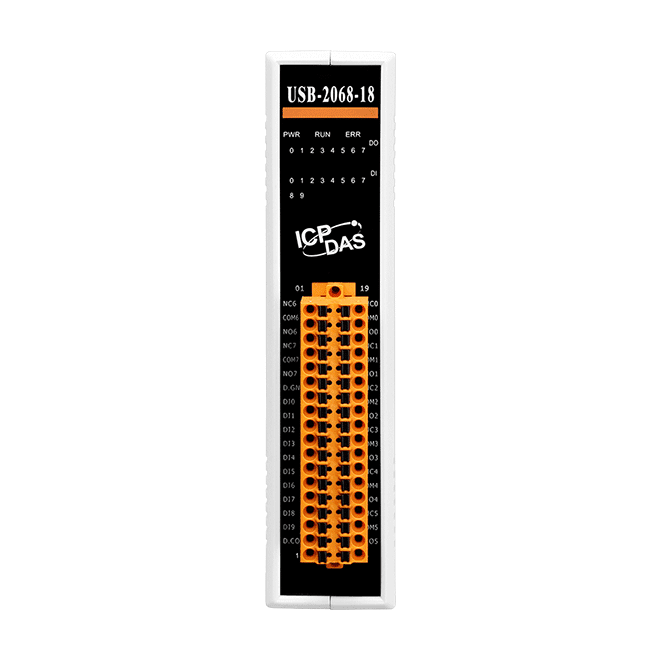

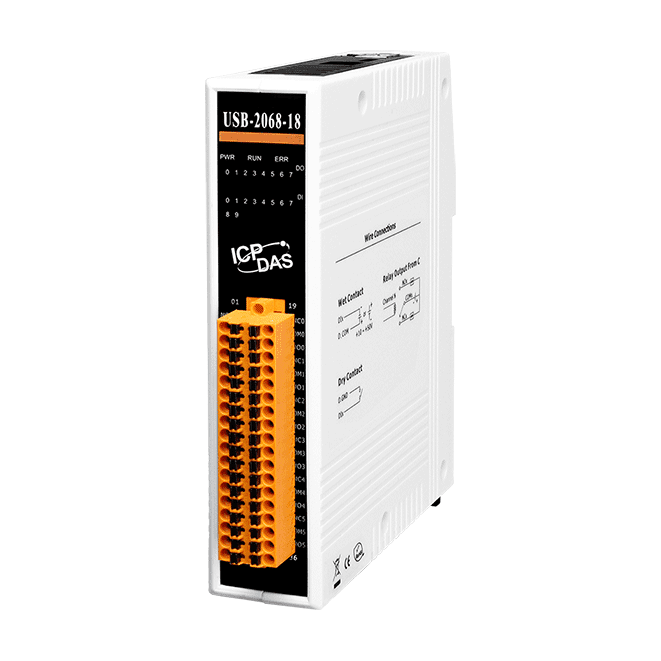

USB-2068-18 USB I/O Module, 10-ch DI and 8-ch Form C Relay Output
USB 2.0 full-speed I/O module with 10 digital inputs (dry or wet contact, 32-bit counters) and 8 Form C relay outputs. Bus powered and driver free, with a 1.5 m USB cable included.
- 10 digital input channels, selectable as dry or wet contact via wire connections
- 8 Form C (SPDT) relay outputs rated 2 A @ 30 VDC
- 32-bit counters on the digital inputs, 500 Hz frequency
- USB 2.0 full-speed (12 Mbps), bus powered, driver free
- Dual watchdog with programmable power-on and safe values for the relay outputs
- 3000 VDC intra-module isolation
1.539,69 kr. pr. stk.
| 1–9 stk. | 1.539,69 kr. | |
|---|---|---|
| 10–30 stk. | 1.494,84 kr. | −3 % |
| 31+ stk. | 1.464,94 kr. | −5 % |
Produktinformation "USB-2068-18 USB I/O Module, 10-ch DI and 8-ch Form C Relay Output"
USB-2068-18 adds digital input and relay output channels to a PC over a single USB 2.0 full-speed connection. It suits engineers who need plug-and-play I/O expansion without a separate power supply, as the module is powered from the USB bus and requires no driver installation.
The 10 digital inputs can be wired as dry or wet contacts, and all channels can run as 32-bit counters at up to 500 Hz. The 8 Form C (SPDT) relay outputs have configurable power-on and safe values, and a dual watchdog helps the module keep operating in demanding environments. The product is rated for an operating range of -25 ~ +75 °C.
Windows and Linux users can build their own applications with the supplied API library and demo programs with source code, using VB, C++, C#.NET, VB.NET or LabVIEW. This ordering code includes a 1.5 m USB cable (CA-USB15).
Applications
- Automation
- Measurement and testing
- Laboratory research
| Product type: | USB I/O Module |
|---|---|
| Interface: | USB 2.0 |
| Digital inputs: | 10 |
| Relay outputs: | 8 |
| Isolation: | 3000 VDC |
| Power input: | USB bus powered |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | 1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) |
| Isolation | |
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | 4 kV contact for each terminal 8 kV air for random point |
| LED Indicators | |
| Status | 3 x Power and Communication 8 x Power Relay 10 x Digital Input |
| Digital Input/Counter | |
| Channels | 10 |
| Type | Dry Contact, Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 VDC ~ +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC Max. |
| Max. Counts | 32-bit |
| Frequency | 500 Hz |
| Min. Pulse Width | 1 ms |
| Input Impedance | 10 KΩ |
| Overvoltage Protection | 70 VDC |
| Relay Output | |
| Channels | 8 Form C (SPDT-NO, NC) |
| Contact Rating | AC: 0.25 A @ 250 VAC AC: 0.5 A @ 125 VAC DC: 2 A @ 30 VDC |
| Operate Time | 5 ms (Max.) |
| Release Time | 6 ms (Max.) |
| Electrical Endurance | 2 x 10^5 ops (at 30 V / 2 A) |
| Mechanical Endurance | 1 x 10^8 ops |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| USB | |
| Specification | USB 2.0 Full-Speed (12Mbps) |
| Power | |
| Consumption | 2.3 W (Max.) |
| Mechanical | |
| Dimensions (mm) | 31 x 147 x 126 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
