VP-6231-CE7 15-inch WinCE ViewPAC with Cortex-A8 CPU and 3 I/O Slots
A Windows CE 7.0 ViewPAC that combines a 15-inch touch display, a 1 GHz Cortex-A8 controller and three I/O expansion slots in one panel-mounted unit.
- 1 GHz Cortex-A8 CPU running Windows CE 7.0
- 15-inch 1024 x 768 TFT LCD with 5-wire resistive touch panel
- 3 I/O expansion slots for I-8K and I-87K series modules
- 1 x 10/100/1000BASE-T Ethernet, 1 x RS-232, 1 x RS-485 (2500 VDC isolated), 2 x USB 2.0 host
- 512 MB SDRAM, 256 MB Flash, SD card storage up to 32 GB
- 128 KB MRAM and 16 KB EEPROM for data retention
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "VP-6231-CE7 15-inch WinCE ViewPAC with Cortex-A8 CPU and 3 I/O Slots"

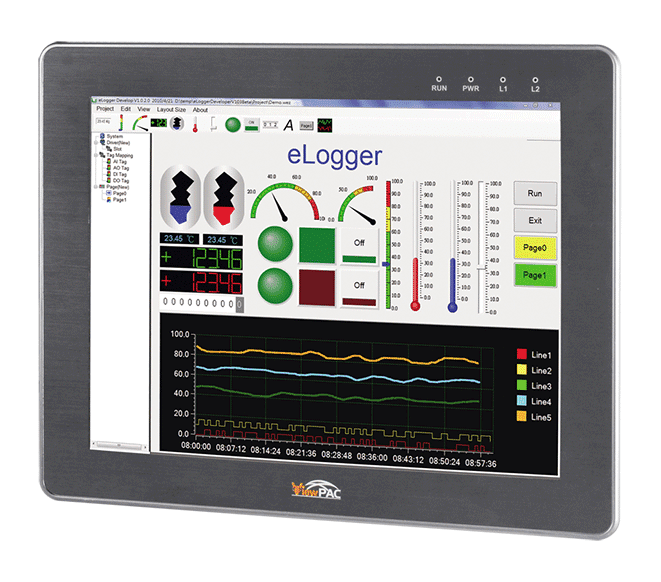

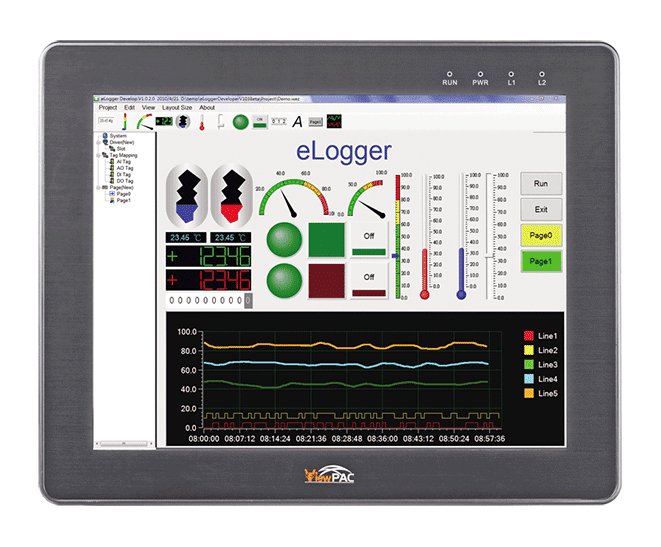

The VP-6231-CE7 CR is a panel-mounted controller that brings HMI, data acquisition and control into a single device. Its 15-inch TFT display with resistive touch panel provides the operator interface, while a 1 GHz Cortex-A8 processor running Windows CE 7.0 handles the application logic.

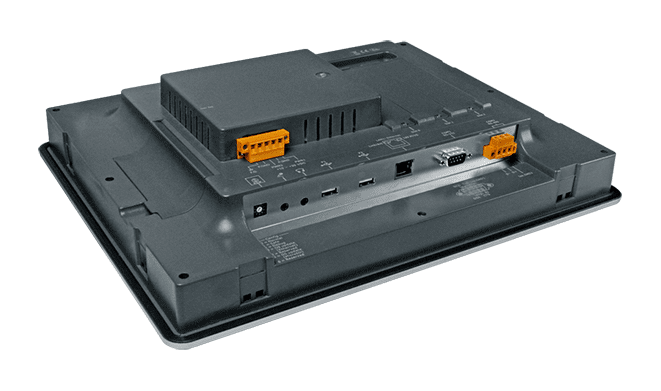

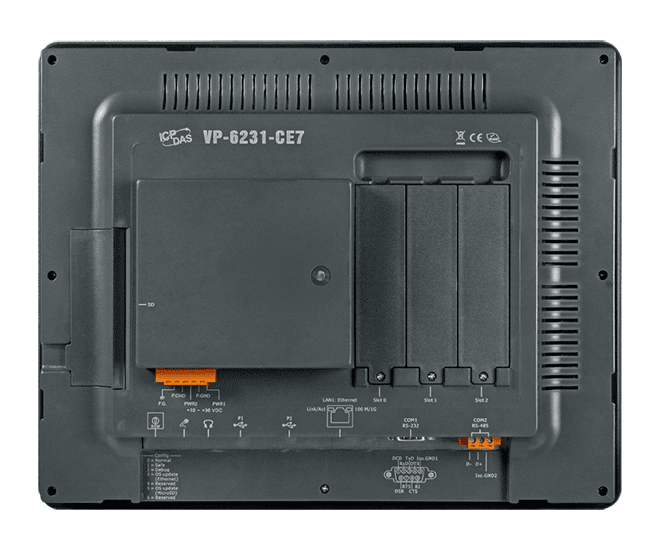

Local expansion uses three I/O slots that accept the I-8K and I-87K series modules. Connectivity includes one 10/100/1000BASE-T Ethernet port, one RS-232 and one RS-485 serial port with 2500 VDC isolation, and two USB 2.0 host ports, which suits engineers who need to join a cabinet's existing network and serial devices without adding separate gateways.
This standard variant is rated for an operating range of -20 ~ +70 °C and has an IP65/NEMA 4 front panel. Non-volatile storage comprises 128 KB MRAM and 16 KB EEPROM for data retention, and a dual watchdog timer and real-time clock support unattended operation.
Applications
- Operator interfaces combined with data acquisition and control in one panel-mounted unit
- Machine control panels requiring local I/O expansion
- Industrial HMI with serial and Ethernet connectivity
| Product type: | WinCE ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0 |
| Ports: | 1 x Ethernet, 2 x serial, 2 x USB |
| Isolation: | 2500 VDC (RS-485) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel |
| Housing: | Plastic, IP65 front |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB SDRAM, 256 MB Flash |
| Storage | SD Card (supports up to 32 GB) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Type | TFT LCD |
| Size | 15" (4:3) |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 1024 x 768 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Color | 16 bit RGB, 64 K full Colors |
| LED Indicators | |
| Status | 1 x System, 1 x Power |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 3 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 0.65 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 381 x 305 x 139 (W x L x H) |
| Panel Cut-out (mm) | 366 x 290, ±1 (W x H) |
| Installation | Panel mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 3030 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
