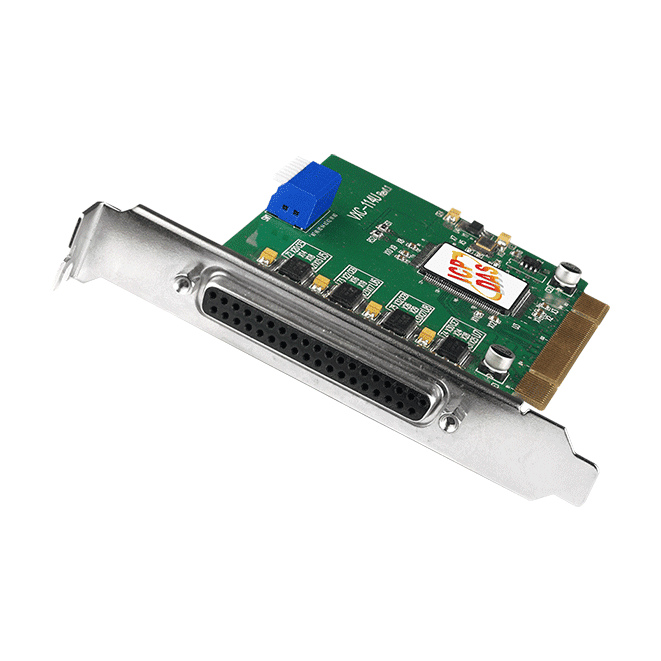

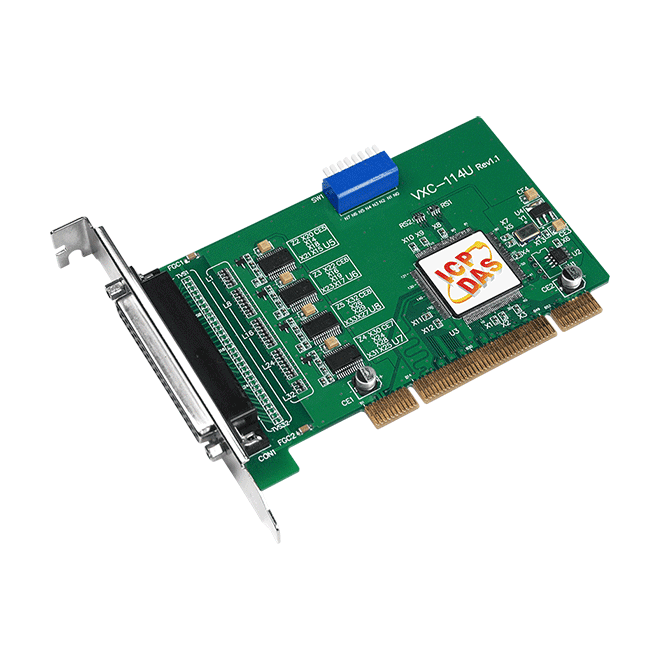

VXC-114U Universal PCI Serial Communication Board, 4 x RS-232 Ports
Universal PCI card adding four RS-232 serial ports, each with a 128-byte hardware FIFO and speeds up to 115200 bps. Includes one CA-4002 connector.
- Four RS-232 serial ports on a DB-37 (female) connector
- 128-byte hardware FIFO for each port
- Baud rates from 50 to 115200 bps with full-duplex communication
- Up to 128 KB software buffer per COM port under Windows
- Built-in COM-Selector (8-bit DIP switch) or automatic COM number assignment by the driver
- Supports 3.3 V and 5 V PCI bus
852,06 kr. pr. stk.
| 1–9 stk. | 852,06 kr. | |
|---|---|---|
| 10–30 stk. | 829,64 kr. | −3 % |
| 31+ stk. | 807,21 kr. | −5 % |
Produktinformation "VXC-114U Universal PCI Serial Communication Board, 4 x RS-232 Ports"
VXC-114U CR is a universal PCI serial communication board that adds four RS-232 ports to a host PC. It suits engineers who need to connect several serial devices such as bar code readers, serial printers, intelligent sensors and instrumentation to a single computer.
Each port has a 128-byte hardware FIFO and supports baud rates from 50 to 115200 bps with full-duplex communication. Under Windows, the driver provides a software buffer of up to 128 KB per COM port, which helps with large file transfers. The COM port number can be set manually with the built-in 8-bit DIP switch selector, or left to the driver to assign automatically.
This is the non-i version of the card, so the isolation and ESD protection features are those of the i versions and are not part of this model. The board supports 3.3 V and 5 V PCI bus signalling and uses a short card design. One CA-4002 connector is included.
Applications
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
| Product type: | Multi-port serial board |
|---|---|
| Interface: | RS-232 |
| Ports: | 4 |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | PCI slot |
Specifikationer
| Hardware | |
|---|---|
| Connector | DB-37 (Female) |
| COM-Selector | Yes (8-bit DIP switch) |
| COM Ports | |
| Ports | 4 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND) |
| Baud Rate | 50 ~ 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 128 bytes |
| Power | |
| Consumption | 120 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 84 x 142 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
