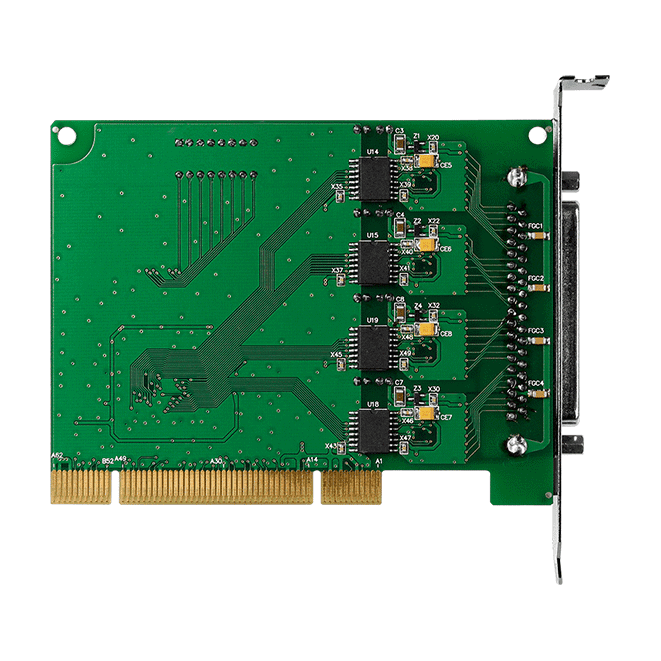

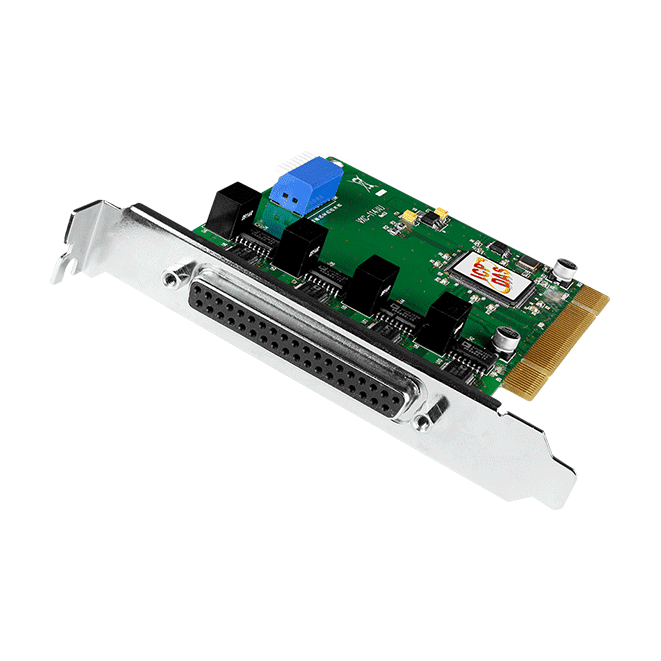

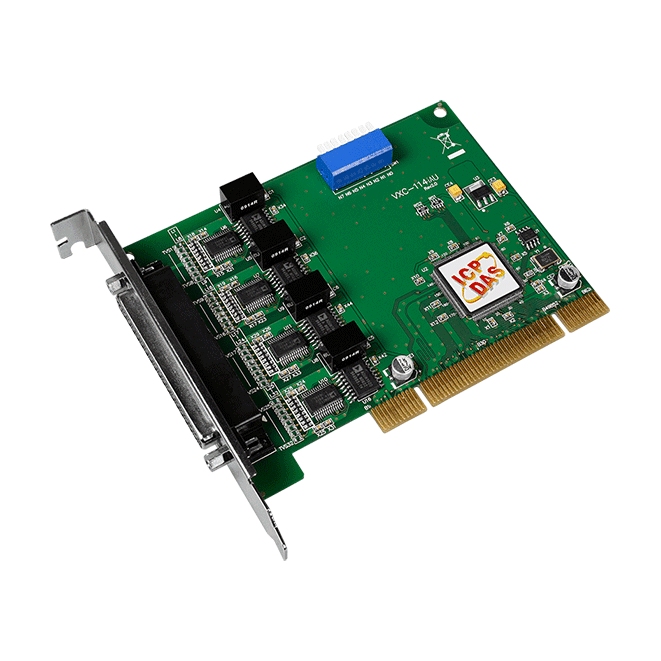

VXC-114iAU/D2 Universal PCI Serial Board, 4 Isolated RS-232 Ports
Universal PCI serial communication card with four isolated RS-232 ports, 128-byte hardware FIFO per port and speeds up to 115200 bps. Suited to bar code readers, printers and instruments.
- Four RS-232 ports on a single universal PCI card with 3.3 V/5 V bus support
- 128-byte hardware FIFO per port and full-duplex communication up to 115200 bps
- Data-line isolation of 2500 VDC and ±4 kV ESD protection on the i version
- Built-in COM-Selector (8-bit DIP switch) or automatic COM number assignment by the driver
- Up to 128 KB software buffer per COM port under Windows for large file transmission
- Supports 5, 6, 7 or 8 data bits, five parity modes and 1, 1.5 or 2 stop bits
1.569,58 kr. pr. stk.
| 1–9 stk. | 1.569,58 kr. | |
|---|---|---|
| 10–30 stk. | 1.517,26 kr. | −3 % |
| 31+ stk. | 1.487,37 kr. | −5 % |
Produktinformation "VXC-114iAU/D2 Universal PCI Serial Board, 4 Isolated RS-232 Ports"
The VXC-114iAU/D2 adds four RS-232 serial ports to a PCI-equipped PC, with each port backed by a 128-byte hardware FIFO and support for full-duplex communication at up to 115200 bps. It suits engineers who need several serial devices on one host without relying on the motherboard's own ports.
The COM port number can be fixed with the 8-bit DIP switch selector or left to the driver to assign automatically. Under Windows the driver provides up to 128 KB of software buffer per COM port, which helps with large file transfers. The 3.3 V/5 V PCI bus support and short card design make it adaptable to a range of host systems.
The 'i' variant isolates the data lines of each port with photocouplers rated at 2500 VDC and adds ±4 kV ESD protection. This helps break ground loops, limit common-mode voltages and protect the host and connected equipment from over-voltage and static discharge in harsh industrial environments.
Applications
- Industrial machinery
- Building automation
- Restaurant appliances
- Laboratory equipment and research
- Industrial communication
| Product type: | Multi-port serial board |
|---|---|
| Interface: | PCI |
| Ports: | 4 |
| Isolation: | 2500 VDC |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | DB-37 (Female) |
| COM-Selector | Yes (8-bit DIP switch) |
| COM Ports | |
| Ports | 4 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND) |
| Baud Rate | 50 ~ 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 128 bytes |
| Isolation | 2500 VDC |
| Power | |
| Consumption | 880 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 93 x 133 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
