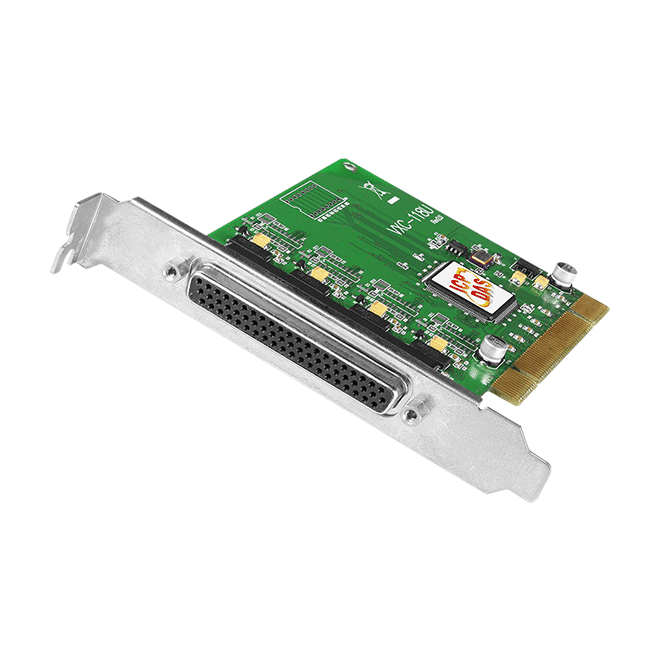

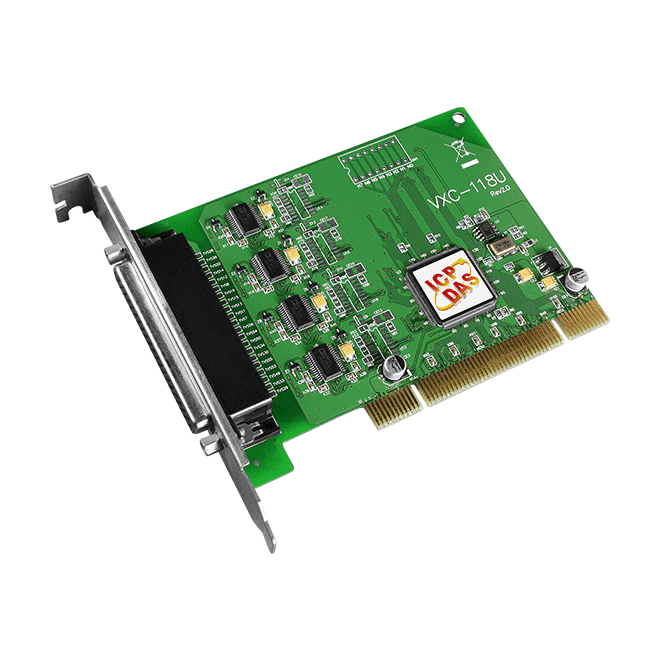

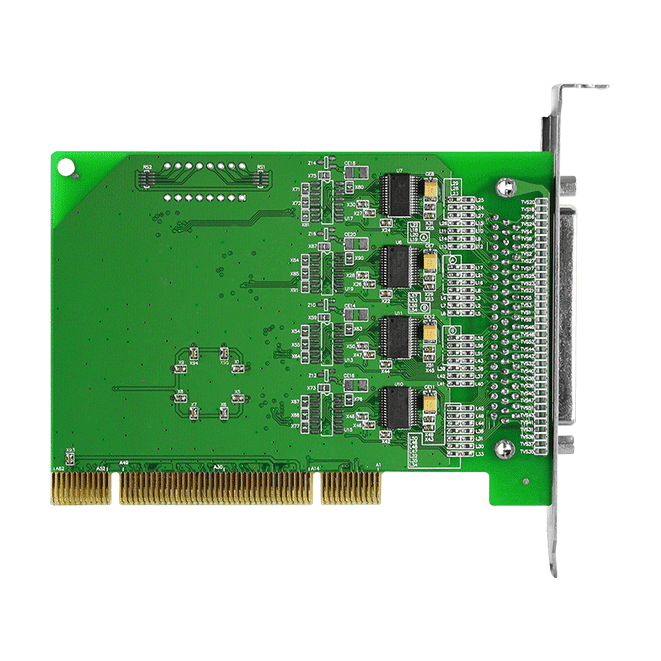

VXC-118U Universal PCI Serial Communication Board, 8 x RS-232
Universal PCI serial card providing 8 RS-232 ports, each with a 256-byte hardware FIFO and speeds up to 115200 bps. Supplied with one CA-PC62M D-Sub connector.
- Eight RS-232 ports on a single universal PCI card
- 256-byte hardware FIFO for each port
- Speeds from 50 to 115200 bps with full-duplex operation
- Supports 3.3 V and 5 V PCI bus
- COM port number assigned automatically or chosen under software control
- Short card design with female DB-62 connector and CA-PC62M D-Sub connector included
1.106,18 kr. pr. stk.
| 1–9 stk. | 1.106,18 kr. | |
|---|---|---|
| 10–30 stk. | 1.076,28 kr. | −3 % |
| 31+ stk. | 1.053,86 kr. | −5 % |
Produktinformation "VXC-118U Universal PCI Serial Communication Board, 8 x RS-232"
The VXC-118U CR adds eight full-duplex RS-232 ports to a PCI-based host, making it a practical choice when a PC needs to talk to several serial devices at once. Each port has its own 256-byte hardware FIFO, which helps buffer data between the card and the host.
The card works with both 3.3 V and 5 V PCI bus signalling and uses a short card layout. COM port numbers can be assigned automatically by the driver to the first available number, or selected manually under software control, which simplifies integration with existing serial applications.
This ordering code includes one CA-PC62M D-Sub connector for the DB-62 female interface. It suits engineers connecting barcode readers, serial printers, intelligent sensors, instrumentation and other equipment fitted with an RS-232 port.
Applications
- Industrial machinery
- Building automation
- Restaurant appliances
- Laboratory equipment and research
- Industrial communication
| Product type: | Multi-port serial board |
|---|---|
| Interface: | PCI |
| Ports: | 8 |
| Operating temperature: | 0 ~ +60°C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB-62 |
| COM Ports | |
| Ports | 8 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND) |
| Baud Rate | 50 - 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 256 bytes |
| Power | |
| Consumption | 120 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 121 x 132 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
