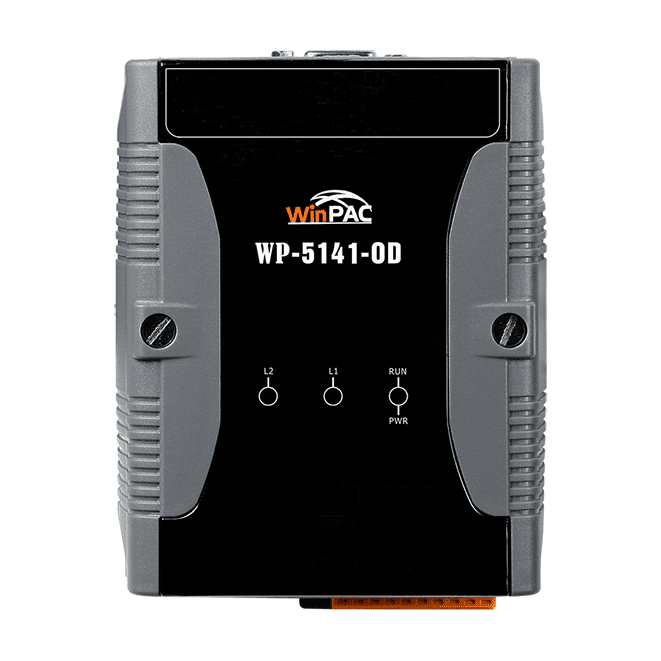

WP-5141-OD-EN WinCE PAC, PXA270 520 MHz with I/O Expansion Bus
WP-5141-OD-EN is a DIN-rail WinCE PAC with a 520 MHz PXA270 CPU, Ethernet, serial and VGA connectivity, and one I/O expansion bus slot for adding I/O functions.
- PXA270 CPU at 520 MHz running Windows CE 5.0
- Hard real-time capability and built-in dual watchdog timers
- 128 MB SDRAM, 64 MB flash and 16 KB EEPROM, with optional microSD up to 32 GB
- Two 10/100 Ethernet ports with auto MDI/MDI-X
- RS-232/485 serial ports, with RS-485 isolated at 2500 VDC
- I/O expansion bus supporting one XW-board
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "WP-5141-OD-EN WinCE PAC, PXA270 520 MHz with I/O Expansion Bus"
WP-5141-OD-EN is a Windows CE 5.0 programmable automation controller built around a 520 MHz PXA270 processor. It combines PLC-style control with the ability to run PC-based software, so engineers can host control logic, SCADA or HMI applications on a single compact unit.
The controller provides 128 MB SDRAM, 64 MB flash, 16 KB EEPROM for data retention and optional microSD storage of up to 32 GB. Connectivity includes two 10/100 Ethernet ports, serial RS-232/485 ports, USB, a VGA display output and audio jacks. An I/O expansion bus lets you add one XW-board to implement functions such as digital and analogue I/O, timer/counter or UART.
- Windows CE 5.0 with .Net Compact Framework 3.5 and FTP and web server services
- Hard real-time capability and dual watchdog timers for dependable operation
- Multilanguage operating system with nine supported languages
- Dual redundant power inputs rated +10 ~ 30 VDC for DIN-rail installation
Applications
- Machine and process control using PC-based control software
- SCADA and HMI front ends with VGA display output
- Data acquisition and I/O expansion through an XW-board
| Product type: | WinCE PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB, VGA |
| Ports: | 2 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 5.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Main Unit | |
| CPU | PXA270 or compatible, 32-bit, 520 MHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 128 MB SDRAM |
| Storage | 64 MB Flash, microSD card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600 |
| LED Indicators | |
| Status | 1 x Power/System, 2 x Programmable |
| I/O Expansion | |
| I/O Type | XW-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 1.1 (host), 1 x USB 1.1 (client) |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 6.0 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 91 x 126 x 52 (W x L x H) |
| Installation | DIN-Rail mounting |
| Ingress Protection Rating | IP30 (Aluminum) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
