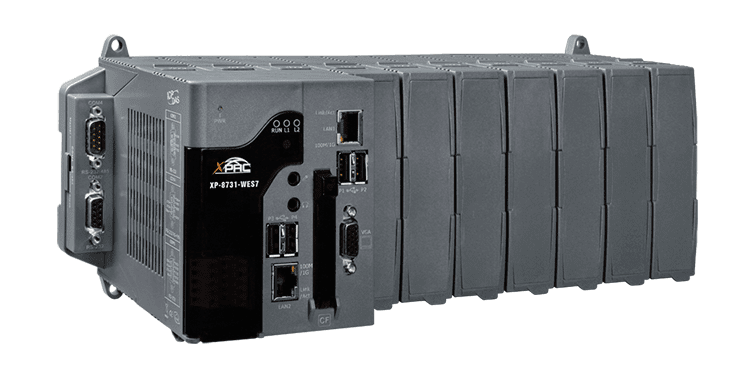

XP-8731-WES7 7-Slot Windows PAC with x86 Dual-Core CPU and WES7
Windows Embedded Standard 7 PAC with a 1 GHz dual-core x86 CPU, seven slots for I-8K and I-87K I/O modules and VGA output, combining control, data acquisition and HMI in one unit.
- Windows Embedded Standard 7 SP1 x86 (32-bit) operating system
- 1 GHz dual-core x86 CPU with 2 GB DDR3 SDRAM and 32 GB flash
- Seven I/O expansion slots for I-8K and I-87K series modules
- Remote expansion via Ethernet I/O and RS-485 I/O modules
- 2 x RJ-45 10/100/1000 Base-TX Ethernet ports
- VGA display output with resolutions up to 1920 x 1080
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "XP-8731-WES7 7-Slot Windows PAC with x86 Dual-Core CPU and WES7"
XP-8731-WES7 is a Windows-based programmable automation controller that brings computing, local I/O and operator interface into a single 7-slot unit. It suits machine and process applications where a visual display and data acquisition need to sit alongside control logic in one housing, rather than in separate HMI and PLC hardware.
The controller runs Windows Embedded Standard 7 SP1 (32-bit) on a 1 GHz dual-core x86 CPU with 2 GB DDR3 SDRAM and 32 GB flash. Because WES7 uses the same Win32 API as Windows 7, desktop applications are generally able to run on it, which helps when reusing existing software. Connectivity includes dual Gigabit Ethernet, VGA, four USB 2.0 ports, RS-232 and RS-485.
Local expansion uses the I-8K and I-87K series I/O modules in the seven slots. Remote I/O can be added through Ethernet I/O modules and RS-485 I/O modules. The power input is redundant, with an alarm relay output, and the unit is rated for -25 ~ +75 °C operation.
Applications
- Integrated HMI, data acquisition and control in a single PAC
- Desktop-style Windows applications on an industrial controller
- Local and remote I/O expansion for machine and process control
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB 2.0, VGA |
| Ports: | 2 |
| Isolation: | 1 kV (power), 3000 VDC (RS-485) |
| Power input: | +10 ~ 30 VDC, redundant |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Software | |
|---|---|
| OS | Windows Embedded Standard 7 SP1 x86 (32-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Framework 3.5 ~ 4.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | x86 CPU, 1 GHz, dual-core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 2GB DDR3 SDRAM, 32 GB Flash |
| Storage | 1x CF card slot |
| Non-Volatile Memory | 512 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 1920 x 1080, 1024 x 768, 800 x 600 , 640 x 480 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 7 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| DIP Switch | 8-bit for address |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Capacity | 35 W |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 18 W (0.75 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 355 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
