XV107A Expansion Board, 8-ch Isolated DI (Sink) and 8-ch DO (PNP Source)
Expansion board with 8 isolated sink-type wet contact digital inputs and 8 isolated source-type PNP digital outputs (10 ~ 40 VDC) for XV-board PAC I/O systems.
- 8 sink-type wet contact digital inputs, ON level +3.5 ~ 50 VDC
- 8 source-type PNP digital outputs, 10 ~ 40 VDC load, 650 mA per channel
- All input channels usable as 32-bit counters, 50 Hz frequency, 10 ms minimum pulse width
- Programmable power-on values for digital outputs
- 3750 VDC intra-module isolation and 70 VDC input overvoltage protection
- Overload and short-circuit protection on digital outputs
545,62 kr. pr. stk.
| 1–9 stk. | 545,62 kr. | |
|---|---|---|
| 10–30 stk. | 530,67 kr. | −3 % |
| 31+ stk. | 523,19 kr. | −4 % |
Produktinformation "XV107A Expansion Board, 8-ch Isolated DI (Sink) and 8-ch DO (PNP Source)"

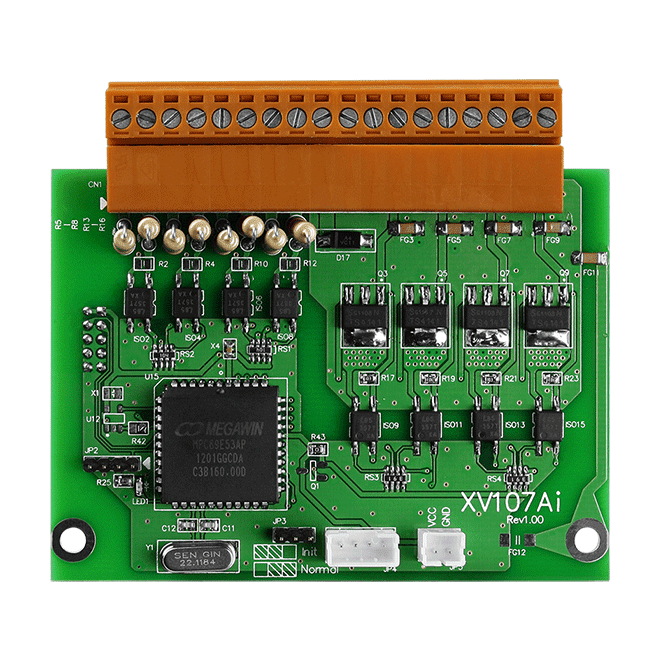

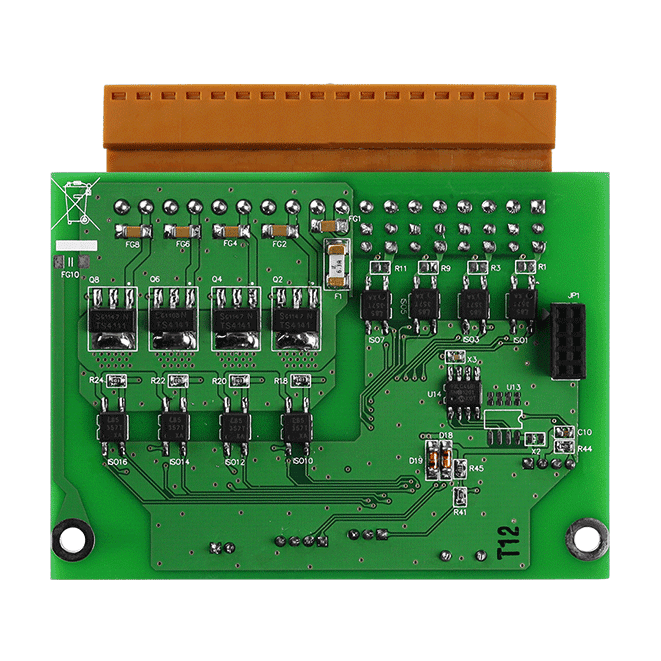

The XV107A CR is an 8-channel isolated digital I/O expansion board. Its eight inputs are sink-type wet contact channels, and its eight outputs are source-type PNP channels rated for a 10 ~ 40 VDC load. It suits engineers who need to add discrete field signals and switched outputs to a PAC I/O stack, with 3750 VDC intra-module isolation between channels and the rest of the board.
Every input channel can operate as a 32-bit counter, with a maximum count of 0 ~ 4,294,967,285 and a frequency of 50 Hz. Output power-on values are programmable, so each output can be set to a defined state when the module starts. The outputs include overload and short-circuit protection, and the inputs tolerate up to 70 VDC overvoltage.
The board communicates through a single RS-232 port using Modbus/RTU at 115200 bps, data format N, 8, 1. It is powered from the terminal block at 5 VDC, draws 0.45 W maximum, and is specified for operation from -25 ~ +75 °C.
| Product type: | Expansion Board |
|---|---|
| Interface: | RS-232 |
| Protocol: | Modbus RTU |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 1 |
| Isolation: | 3750 VDC |
| Power input: | 5 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Digital Input/Counter | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink |
| ON Voltage Level | +3.5 ~ 50 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 32-bit (0 ~ 4, 294, 967, 285) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Input Impedance | 10 KΩ, 0.5 W |
| Overvoltage Protection | 70 VDC |
| Digital Output | |
| Channels | 8 |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | 10 ~ 40 VDC |
| Load Current | 650 mA/channel |
| Overvoltage Protection | 47 VDC |
| Overload Protection | Yes |
| Short-circuit Protection | Yes |
| Power on Value | Yes, Programmable |
| COM Ports | |
| Ports | 1 x RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
| Consumption | 0.45 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
