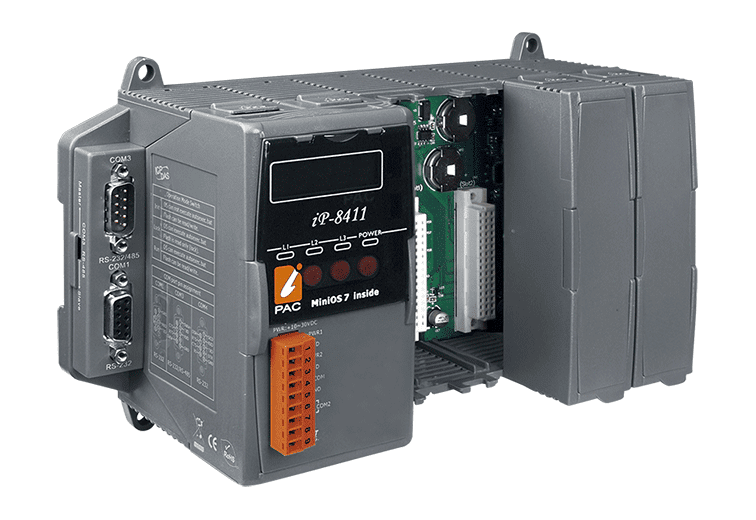

iP-8411 4-Slot Serial PAC with 80186 80 MHz CPU and MiniOS7
The iP-8411 CR is a 4-slot serial PAC with an 80 MHz 80186 CPU and MiniOS7, taking I-8K and I-87K I/O modules and four serial COM ports for remote data acquisition and control.
- 80186 CPU at 80 MHz running the MiniOS7 embedded operating system
- Four slots for I-8K and I-87K series I/O modules
- Four serial ports: two RS-232, one RS-485 (3000 VDC isolated) and one RS-232/RS-485
- C language toolkit with TCP/IP and Modbus libraries
- 512 KB Flash, 16 KB EEPROM, 512 KB SRAM and microSD slot supporting up to 32 GB
- Redundant power inputs, +10 ~ 30 VDC, with 1 kV isolation
3.886,58 kr. pr. stk.
| 1–9 stk. | 3.886,58 kr. | |
|---|---|---|
| 10–30 stk. | 3.767,00 kr. | −3 % |
| 31+ stk. | 3.692,25 kr. | −5 % |
Produktinformation "iP-8411 4-Slot Serial PAC with 80186 80 MHz CPU and MiniOS7"

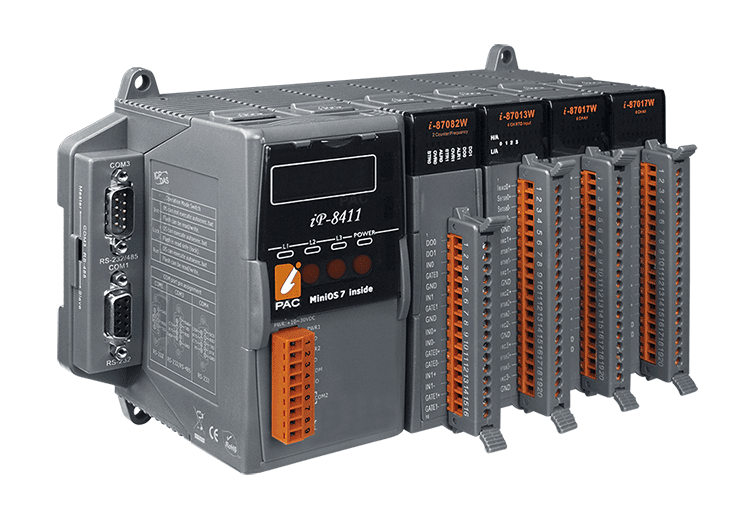

iP-8411 CR is an embedded controller built around the MiniOS7 DOS-like operating system, which boots in 0.4 ~ 0.8 second. Its backplane offers four slots for I-8K and I-87K series I/O modules, covering DI, DO, DIO, AI, AO, counter/frequency and motion modules, so one controller can be configured to suit a range of field signals.
The unit provides four serial COM ports, two RS-232, one RS-485 with 3000 VDC isolation and one switchable RS-232/RS-485, for remote data acquisition, environmental monitoring, power management and factory automation. Redundant power inputs carry 1 kV isolation against noise and surges, and the rated operating range of -25 ~ +75 °C suits harsh industrial sites. The CR ordering code is the RoHS variant named in the product description.
Programming uses a C language software development toolkit that includes TCP/IP and Modbus libraries, with 512 KB Flash, 16 KB EEPROM and a microSD slot for storage expansion of up to 32 GB.
Applications
- Remote data acquisition and control
- Environmental monitoring
- Power management
- Factory automation
- Industrial monitoring, measurement and control
| Product type: | PAC |
|---|---|
| Interface: | RS-232/RS-485 |
| Protocol: | Modbus |
| Ports: | 4 |
| Isolation: | 1 kV |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB SRAM, 512 KB Dual battery backup SRAM |
| Storage Expansion | 1 x microSD card slot, supports up to 32 GB |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x Power, 3 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 4 |
| HMI | |
| DIP Switch | 8-bit for address |
| Push Button | 4 |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Consumption | 6.7 W |
| Mechanical | |
| Dimensions (mm) | 231 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
