iPPC-6831-IoT 15" Panel PC with Atom E3845 and 3 I/O Slots
15-inch fanless Windows 10 IoT Panel PC combining HMI, computing and I/O in one panel-mount unit, with three slots for I-8K and I-87K I/O modules.
- Windows 10 IoT Enterprise LTSC with Intel Atom E3845 1.91 GHz quad-core CPU
- 15-inch LCD with 5-wire resistive touch panel, 1024 x 768 resolution
- Three I/O expansion slots supporting I-8K and I-87K series modules
- Two 10/100/1000BASE-TX Ethernet ports and three USB 2.0 host ports
- Three serial ports: RS-232, RS-485 and switchable RS-232/RS-485 with 2500 VDC isolation
- Fanless design with NEMA 4/IP65 rated front panel for panel mounting
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "iPPC-6831-IoT 15" Panel PC with Atom E3845 and 3 I/O Slots"

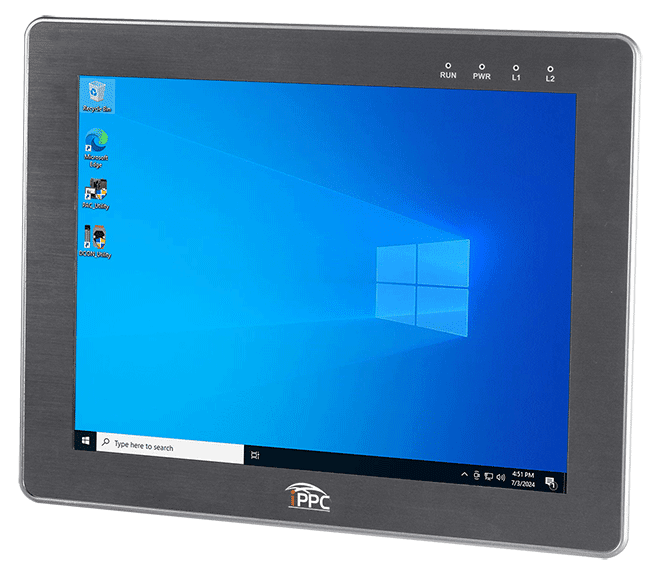

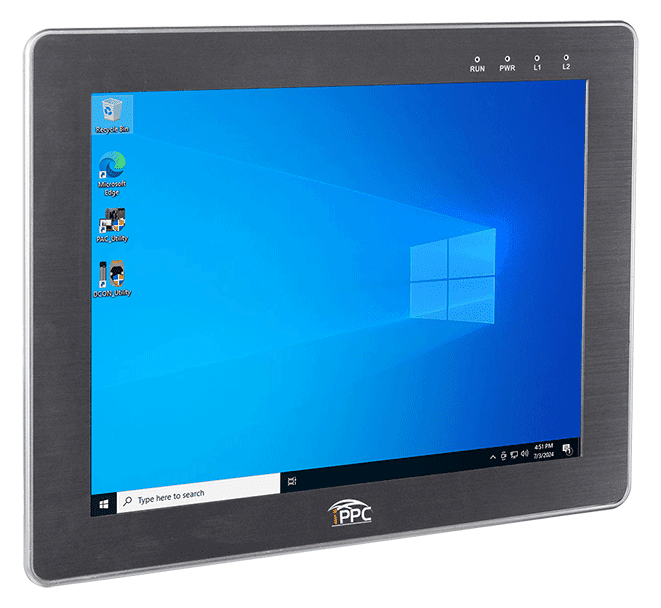

iPPC-6831-IoT CR is a panel-mount industrial PC that brings a 15-inch touch display, an Intel Atom E3845 processor and Windows 10 IoT Enterprise LTSC into a single unit. It suits projects where operator interface, data acquisition and control need to share one enclosure rather than being spread across separate hardware.

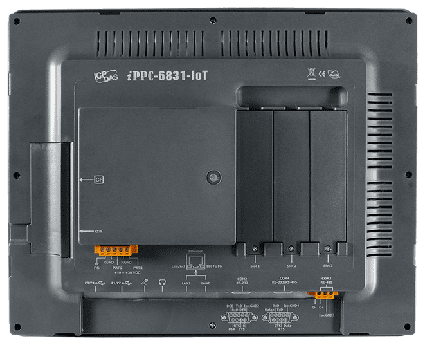

The unit provides 4 GB DDR3 SDRAM and a 128 GB SSD, with a CF card slot for additional storage. Two RJ-45 10/100/1000BASE-TX Ethernet ports, three serial ports (one RS-232, one RS-485 and one switchable RS-232/RS-485, both with 2500 VDC isolation) and three USB 2.0 host ports handle communication. Three slots accept I-8K and I-87K series I/O modules, and the system can also use remote Ethernet and RS-485 I/O modules.
The fanless design has no moving parts, and the front panel is rated NEMA 4/IP65 for protection against sprayed water, humidity and dust. It is specified for an operating temperature range of -20 ~ +60 °C and is intended for panel mounting with a 366 x 290 mm cut-out.
Applications
- HMI and operator control panels
- Data acquisition
- Machine control
- Remote I/O expansion via Ethernet and RS-485 I/O modules
| Product type: | Panel PC |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB 2.0 |
| Ports: | 8 |
| Isolation: | 1 kV (power), 2500 VDC (serial) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -20 ~ +60 °C |
| Mounting: | Panel |
| Housing: | NEMA 4/IP65 front panel |
Specifikationer
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise LTSC |
| Framework Support | .Net Framework 3.5, 4.0, 4.5, 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4 GB DDR3 SDRAM |
| Storage | 1 x 128 GB SSD, 1 x CF card slot |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Size | 15" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 1024 x 768 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Contrast Ratio | 700：1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 3 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 (2500 VDC), 1 x RS-232/RS-485 (2500 VDC) |
| USB | |
| Ports | 3 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 25.0 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 381 x 305 x 88 (W x L x H) |
| Panel Cut-out (mm) | 366 x 290, ±1 (W x H) |
| Installation | Panel Mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 5.1 kg |
| Environment | |
| Operating Temperature | -20 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
