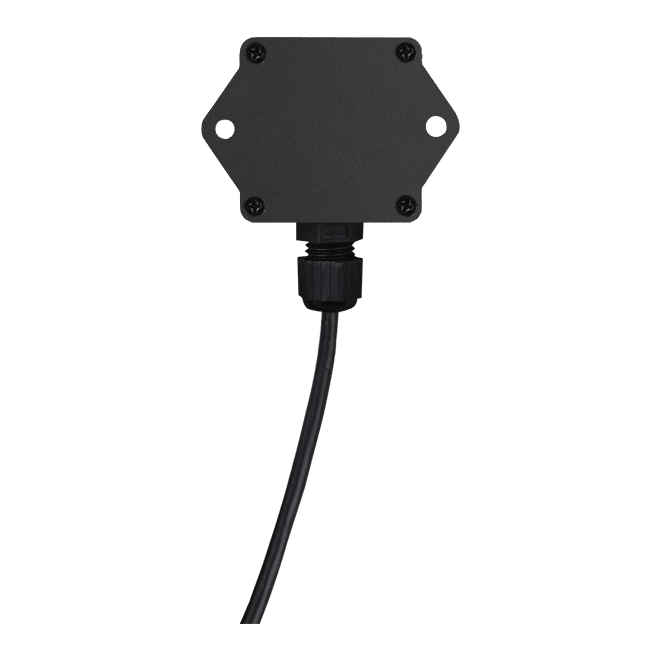

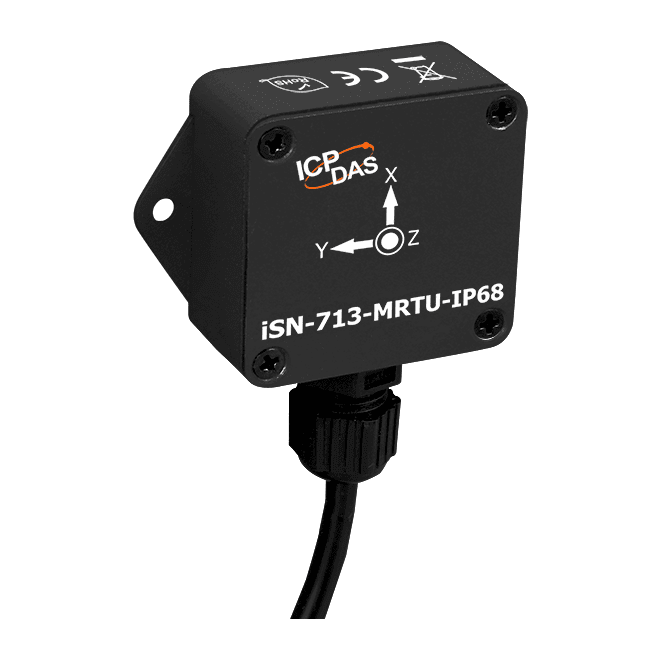

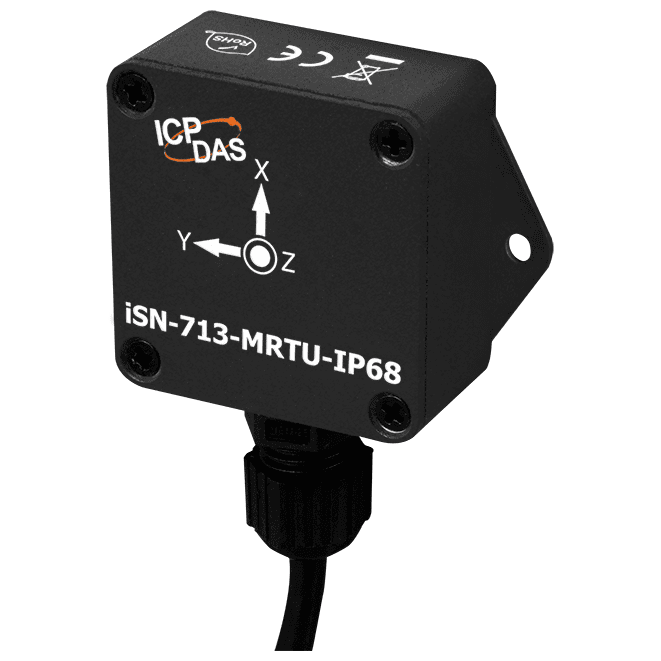

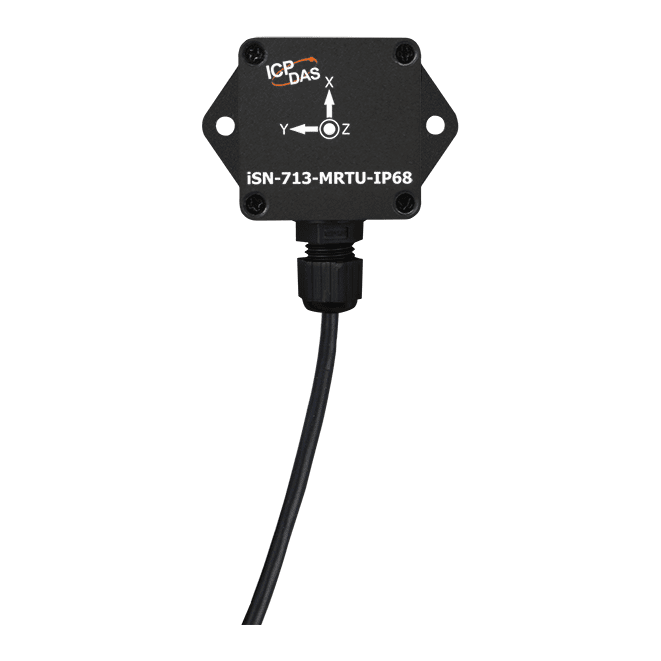

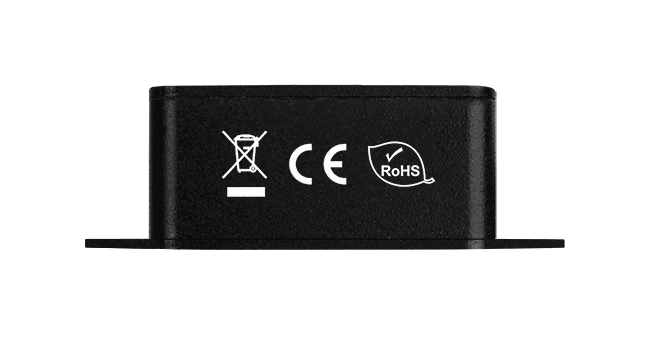

iSN-713-MRTU-IP68 IP68 Three-axis Vibration Sensor, RS-485 Modbus RTU
IP68 three-axis MEMS vibration sensor with an RS-485 Modbus RTU slave interface, for condition monitoring of motors, pumps and production line equipment in harsh environments.
- Three-axis MEMS vibration measurement, ±8g amplitude range
- Frequency range 6 Hz ~ 1 kHz, suited to low frequency vibration
- IP68 protection against water, oil and dust
- Single RS-485 port with Modbus RTU slave protocol
- Selectable baud rates 9600 to 115200 bps, N, 8, 1 data format
- Wall-mount or magnet adsorption installation
3.886,58 kr. pr. stk.
| 1–9 stk. | 3.886,58 kr. | |
|---|---|---|
| 10–30 stk. | 3.767,00 kr. | −3 % |
| 31+ stk. | 3.692,25 kr. | −5 % |
Produktinformation "iSN-713-MRTU-IP68 IP68 Three-axis Vibration Sensor, RS-485 Modbus RTU"
The iSN-713-MRTU-IP68 CR is a vibration sensor module for monitoring equipment condition in harsh industrial settings. Its built-in three-axis MEMS accelerometer measures vibration across X, Y and Z axes, and its IP68 rating protects the housing against water, oil and dust.
Readings are delivered over a single RS-485 port using the Modbus RTU slave protocol. A host or PLC can poll the vibration data with standard Modbus RTU commands, with selectable baud rates from 9600 to 115200 bps and a fixed N, 8, 1 data format. The module suits real-time detection on critical machinery such as production line equipment, motors and pumps.
The unit mounts by wall-mount or magnet adsorption and runs from a +10 ~ +30 VDC supply at 0.3 W. It is rated for an operating temperature of -25 °C ~ +75 °C.
Applications
- Vibration monitoring systems
- Real-time vibration detection on motors and pumps
- Factory monitoring of production line equipment
| Product type: | Vibration sensor module |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | Wall-mount or magnet |
Specifikationer
| Vibration Measurement | |
|---|---|
| Axes | 3 |
| Sensor Type | MEMS |
| Amplitude Range | ±8g |
| Frequency Range | 6 Hz ~ 1 kHz |
| COM Ports | |
| Ports | 1 x RS-485(D+, D-) |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus RTU |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.3 W |
| Mechanical | |
| Dimensions (mm) | 65 x 44 x 21 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
