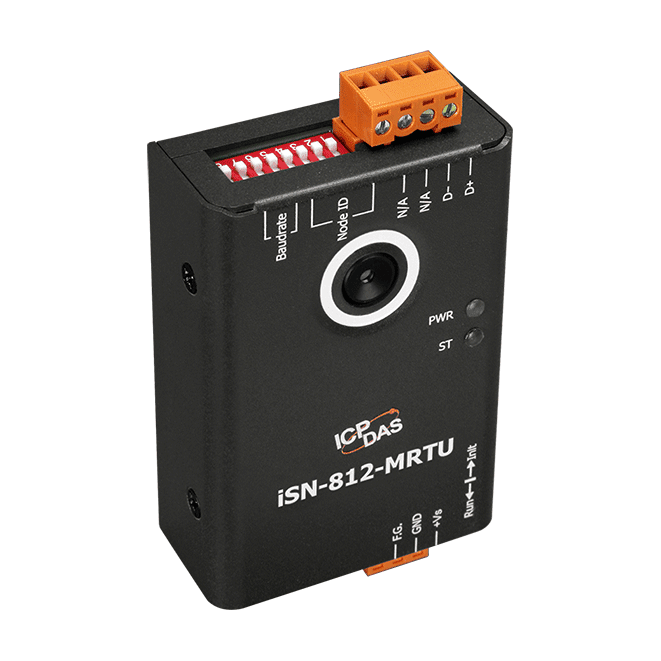

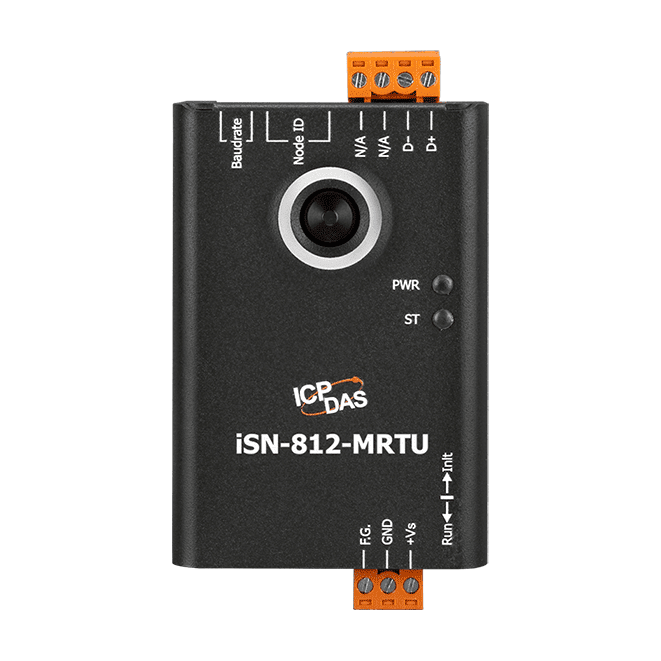

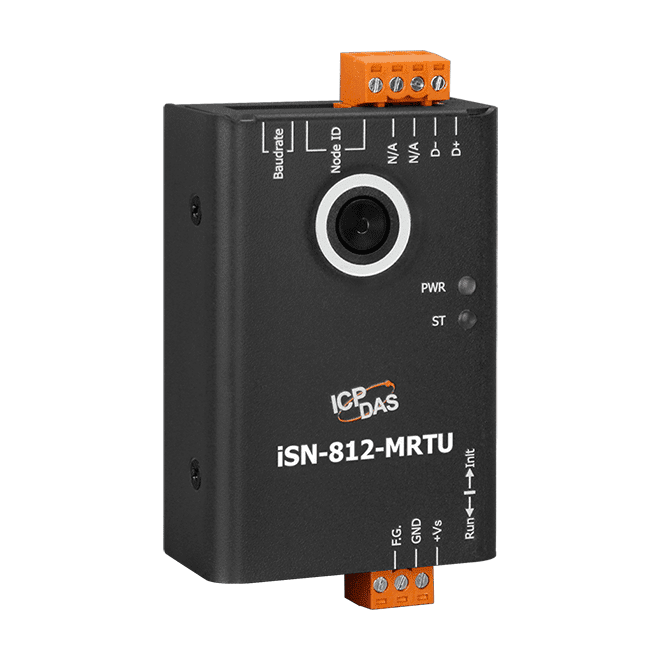

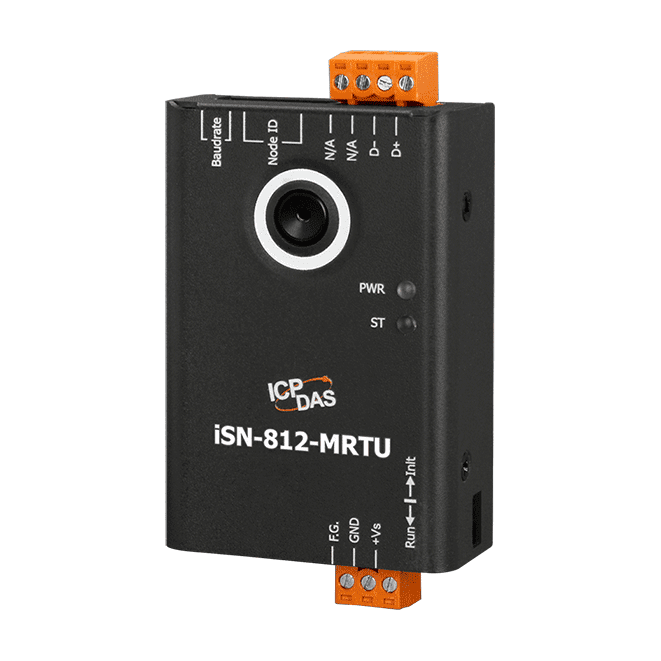

iSN-812-MRTU IR Temperature Sensing Module, Modbus RTU, 768 Pixels
Non-contact infrared temperature sensing module with a 32x24 (768-pixel) array, -40 °C to 300 °C range and Modbus RTU over RS-485 for SCADA integration.
- Non-contact IR temperature measurement from -40 °C to 300 °C
- 768-pixel (32x24) sensor array for temperature distribution across a surface
- Modbus RTU over one RS-485 port at up to 115200 bps
- Temperature threshold detection function
- Accuracy of ±5 °C max.
- Measurement distance up to 2 m
3.565,19 kr. pr. stk.
| 1–9 stk. | 3.565,19 kr. | |
|---|---|---|
| 10–30 stk. | 3.460,55 kr. | −3 % |
| 31+ stk. | 3.385,81 kr. | −5 % |
Produktinformation "iSN-812-MRTU IR Temperature Sensing Module, Modbus RTU, 768 Pixels"
iSN-812-MRTU measures surface temperature without contact, reporting readings over a single RS-485 link using Modbus RTU. It suits engineers who need to feed real-time temperature data into a SCADA or other Modbus master without adding a separate sensor controller.
The 768-pixel (32x24) IR sensor covers a field of view of X: 110° and Y: 75°, with the distance-to-spot ratio given in the source data for each axis. The module is rated for measurement up to 2 m, an accuracy of ±5 °C max. and a range of -40 °C to 300 °C. Its built-in temperature threshold detection function lets you flag out-of-range conditions at the sensor itself.
The unit runs from a +10 to +30 VDC supply and draws 1.5 W. It mounts on DIN-rail, or magnetically or via a universal joint as optional accessories, and is specified for an operating range of -10 °C to 70 °C with 10% to 95% RH non-condensing humidity.
Applications
- Temperature monitoring
- Measuring the temperature of moving objects
- Measurement of the temperature distribution on the surface of an object
- Suitable for hazardous environments
| Product type: | IR Temperature Sensor |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Ports: | 1 |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -10 ~ +70 °C |
| Mounting: | DIN-rail |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1xPWR; 1xST |
| Temperature Measurement | |
| Range | -40°C ~ 300°C |
| Accuracy | ±5°C Max. |
| IR Sensor Pixel | 768(32x24) |
| IR Sensor FOV | X: 110° / D : S =1 : 2.86 Y: 75° / D : S =1 : 1.53 |
| Distance | ≦2m |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Protocol | Modbus RTU |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.5W |
| Mechanical | |
| Dimensions (mm) | 52 mm x 94 mm x 33 mm (W x H x D) |
| Installation | Din-rail or magnetic(Optional), universal joint(Optional) |
| Environment | |
| Operating Temperature | -10°C~70°C |
| Storage Temperature | -20°C~80°C |
| Humidity | 10% ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
