iWSN-110X-160-ME Self-Powered Current Sensing Module, 1-ch CT Input
Self-powered iWSN current sensing module with one split-core CT input and 433 MHz RF communication. Supplied with one 100A CT and an expansion interface.
- Self-powered by a built-in Li-ion battery charged from CT-induced current
- Split-core CT input, Φ16mm (100A), for easy installation on existing conductors
- 433.1000 to 434.6000 MHz RF link with 16 channels and 4 group IDs
- Node ID 1 to 31 and working duty of 1, 10, 30 or 60 seconds set by DIP switch
- Input voltage rating up to 500VAC, 50/60 Hz; CT accuracy ±3% or ±0.3A
- Expansion interface for added flexibility
1.233,24 kr. pr. stk.
| 1–9 stk. | 1.233,24 kr. | |
|---|---|---|
| 10–30 stk. | 1.195,87 kr. | −3 % |
| 31+ stk. | 1.173,45 kr. | −5 % |
Produktinformation "iWSN-110X-160-ME Self-Powered Current Sensing Module, 1-ch CT Input"
The iWSN-110X-160-ME CR is a wireless current sensing module for AC current monitoring where running mains cabling to the sensor is impractical. It runs from a built-in Li-ion battery that is charged by the current induced in its split-core CT, so no separate power supply line is required.

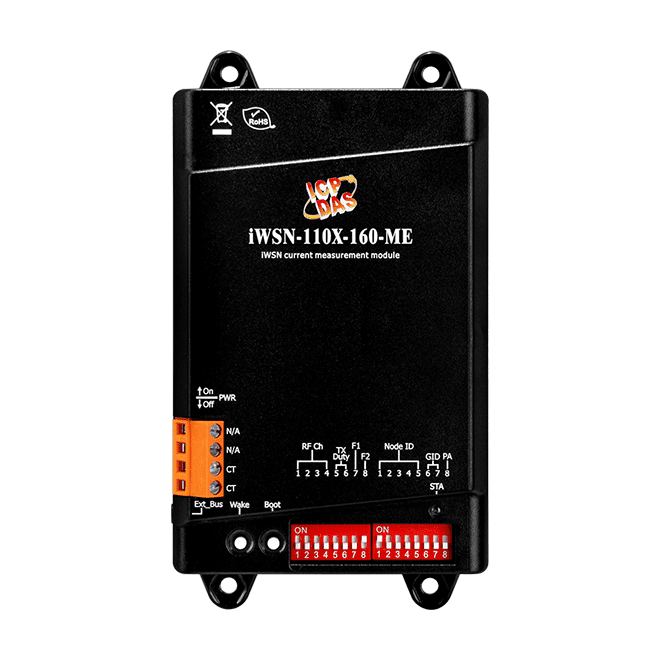

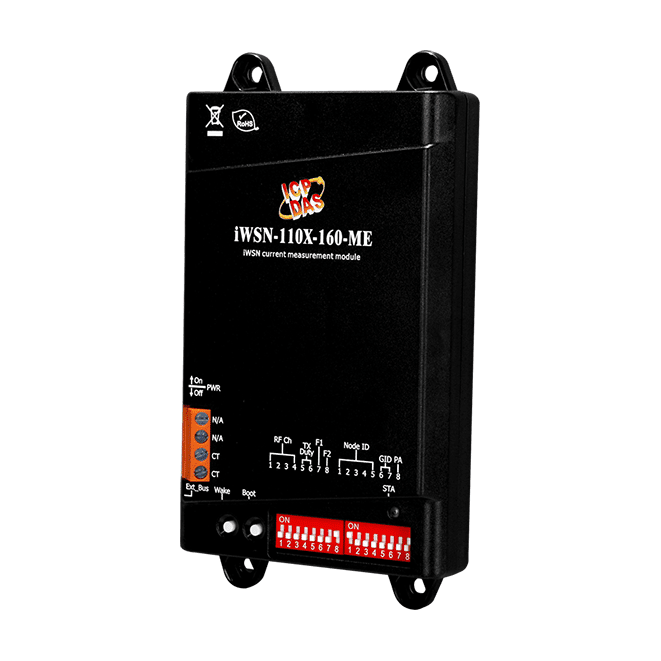

Readings are sent over a sub-1 GHz 433 MHz RF link. Channels, group ID and node ID are set with DIP and rotary switches, which keeps configuration simple on site. The ordering code includes one 100A split-core CT with an 8 m wire, and the module provides an expansion interface for future flexibility.

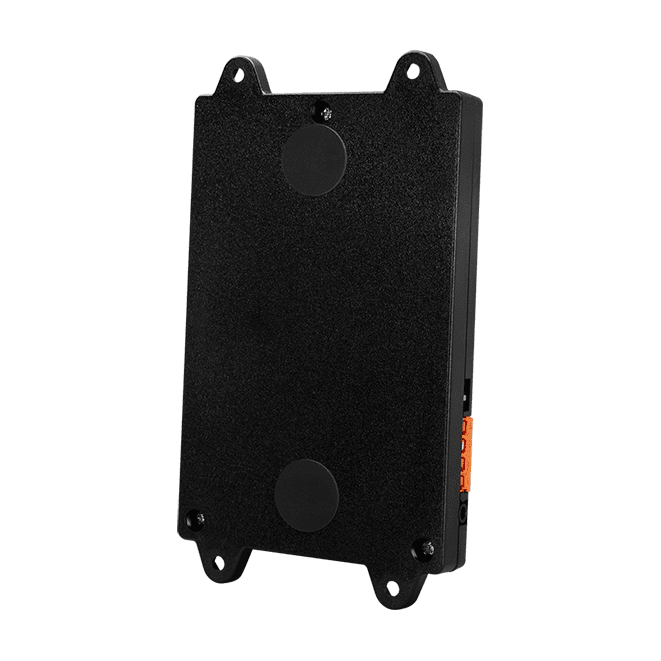

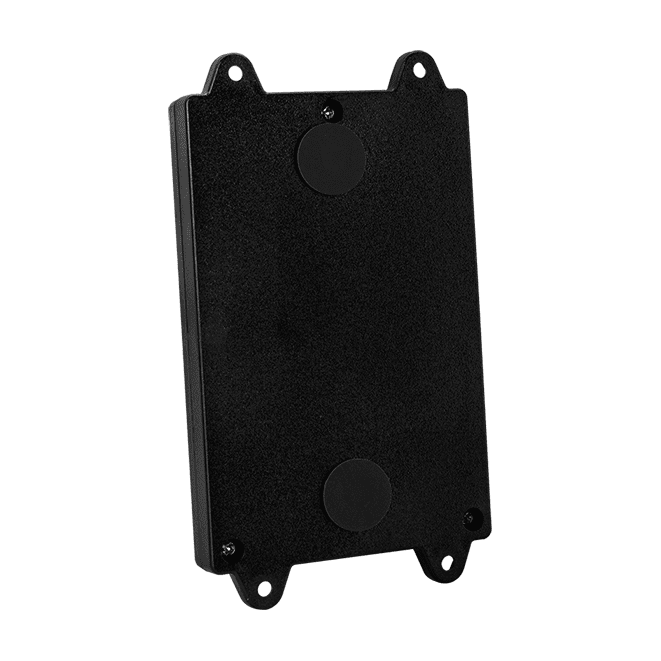

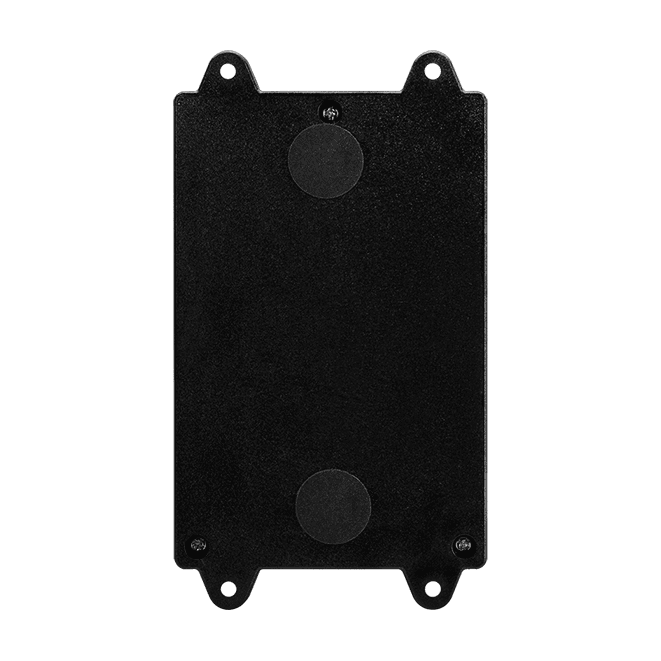

- Mounting by wall-mount bracket or magnet adsorption
- Dimensions 85 x 152 x 25 mm (W x L x H)
- Operating temperature 0 °C to +45 °C
Applications
- Energy saving and power monitoring
- Big data analysis of electrical consumption
- Predictive maintenance
| Product type: | Current sensing module |
|---|---|
| Interface: | 433 MHz RF |
| Analog inputs: | 1 (CT) |
| Ports: | 1 expansion interface |
| Power input: | Self-powered (Li-ion battery) |
| Operating temperature: | 0 ~ +45 °C |
| Mounting: | Wall-mount / magnet |
Specifikationer
| Bus Interface | |
|---|---|
| Channels | 1 |
| Type | 4 pole 3.5mm audio cable with 25 cm wire lead |
| EMS Protection | |
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
| Status | 1 x Power 1 x STA |
| CT | |
| Split-core CT Channels | 1 |
| Split-core CT Type | Φ16mm (100A); 8 m wire |
| Input Voltage | Maximum 500VAC, 50/60 Hz |
| Accuracy | ±3% or ±0.3A |
| RF | |
| Channels | 0 ~ 15 configured by DIP switch |
| Group ID | 0 ~ 3 configured by DIP switch |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 configured by DIP switch |
| Working Duty | 1 sec, 10 sec, 30 sec and 60 sec configured by DIP switch |
| Antenna | |
| Type | 0 dBi Omni directional PCB antenna |
| Power | |
| Consumption | 1-sec Tx Duty: 11 A 10-sec Tx Duty: 3 A 30-sec Tx Duty: 3 A 60-sec Tx Duty: 3A |
| Battery | Li-ion battery (compliant with UL1642) charged by CT induced current |
| Mechanical | |
| Dimensions (mm) | 85 x 152 x 25 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environment | |
| Operating Temperature | 0 °C ~ +45 °C |
| Storage Temperature | -20 °C ~ +50 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
