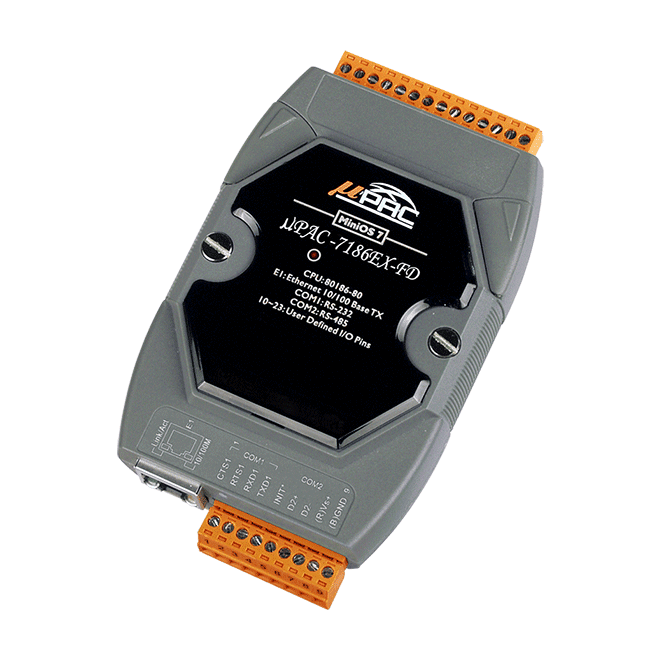

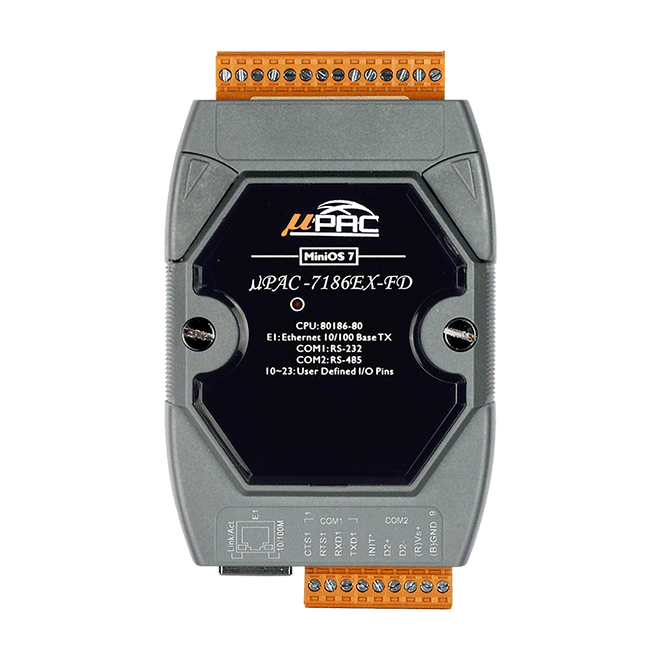

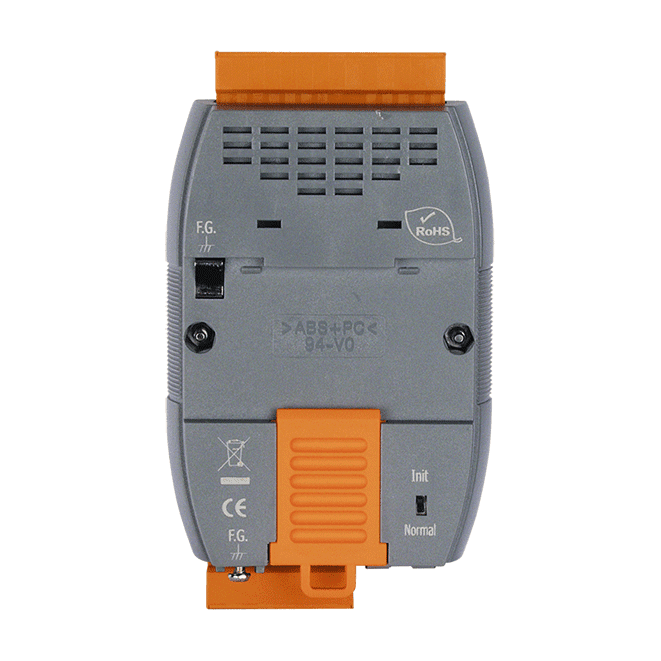

uPAC-7186EX-FD-G Ethernet PAC, 80186-80 CPU, MiniOS7, 64MB NAND Flash
Compact Ethernet programmable automation controller with an 80186-80 CPU, MiniOS7 framework, RS-232/RS-485 ports and 64 MB NAND Flash. Grey cover variant.
- Built-in MiniOS7 framework with C language software development tool kits
- Ethernet connectivity via 1 x RJ-45, 10/100 Base-TX
- RS-232 and RS-485 serial ports, with baud rates up to 115200 bps
- 80186 or compatible 16-bit CPU running at 80 MHz
- 512 KB Flash, 16 KB EEPROM, 512 KB SRAM and 64 MB NAND Flash
- Real-time clock, watchdog timer and 64-bit hardware serial number
2.227,31 kr. pr. stk.
| 1–9 stk. | 2.227,31 kr. | |
|---|---|---|
| 10–30 stk. | 2.160,04 kr. | −3 % |
| 31+ stk. | 2.115,20 kr. | −5 % |
Produktinformation "uPAC-7186EX-FD-G Ethernet PAC, 80186-80 CPU, MiniOS7, 64MB NAND Flash"
The uPAC-7186EX-FD-G is a compact programmable automation controller that brings serial devices onto Ethernet. Its RS-232 and RS-485 ports, combined with a 10/100 Base-TX Ethernet interface, let engineers connect legacy serial equipment to a network and expose it to supervisory software.
Application software is built in C using the MiniOS7 framework and the supplied development tool kits, including Modbus libraries. The controller offers 512 KB of Flash, 16 KB of EEPROM and 64 MB of NAND Flash for storage, along with a real-time clock and a hardware watchdog timer for unattended operation.
The -G suffix identifies the grey cover version. An I/O expansion bus allows one X-board to be fitted for additional analogue, digital or serial functions, with more than 50 expansion boards available for this controller.
Applications
- Integrating serial devices into Ethernet networks
- Standard Modbus communication with SCADA software
- Distributed control and data acquisition at DIN-rail mounted installations
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Ports: | 1 x RJ-45, 1 x RS-232, 1 x RS-485 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NAND Flash | 64 MB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
