CAN-2053C CANopen Slave I/O Module, 16-ch Isolated Wet Digital Input
CANopen slave module with 16 isolated sink/source wet digital inputs, supporting CiA 301 v4.02 and CiA 401 v2.1 with a default EDS file for standard CANopen masters.
- 16-channel isolated wet digital input module with sink/source operation for PNP, NPN, TTL and relay contact signals
- Follows CiA 301 v4.02 and CiA 401 v2.1 and has passed the CiA CANopen Conformance Test tool
- Default EDS file provided for straightforward integration with standard CANopen masters
- Dynamic PDO support, with input polarity settable and saved in the module
- I/O pair-connection function for linking inputs between modules
- Built-in 120Ω terminal resistor; Node ID 1 ~ 99; baud rate 10 k ~ 1 M
1.322,93 kr. pr. stk.
| 1–9 stk. | 1.322,93 kr. | |
|---|---|---|
| 10–30 stk. | 1.285,56 kr. | −3 % |
| 31+ stk. | 1.255,67 kr. | −5 % |
Produktinformation "CAN-2053C CANopen Slave I/O Module, 16-ch Isolated Wet Digital Input"

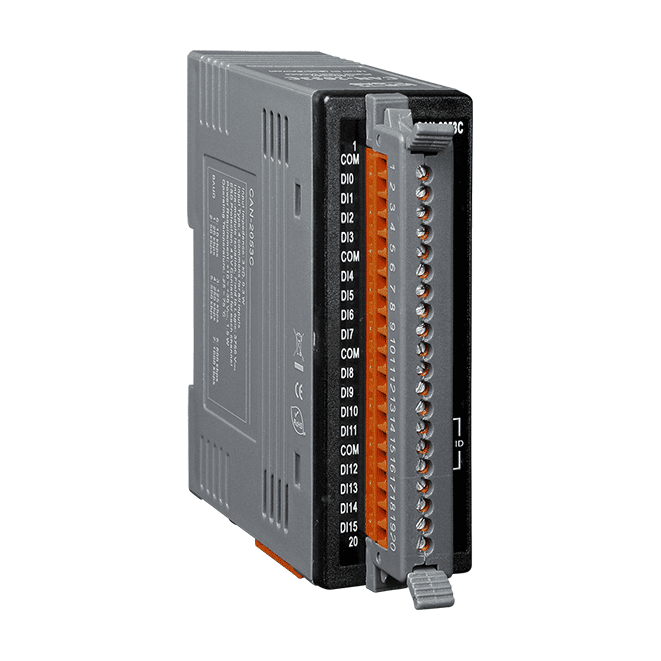

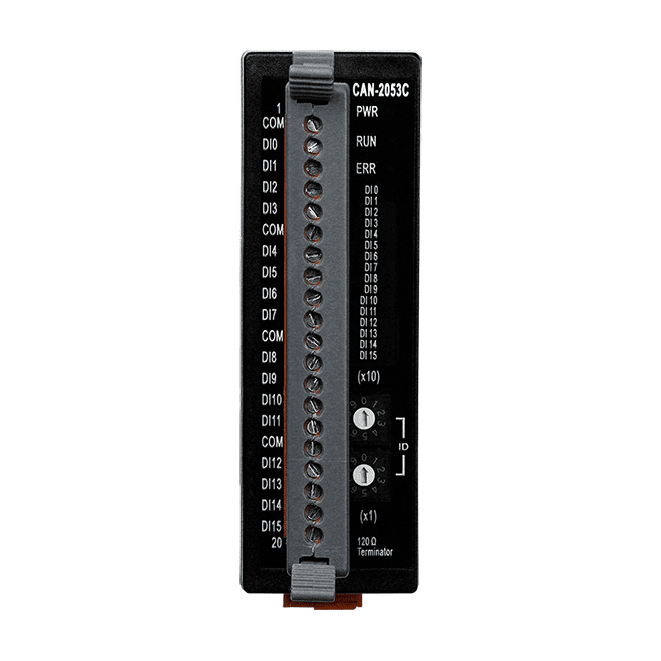

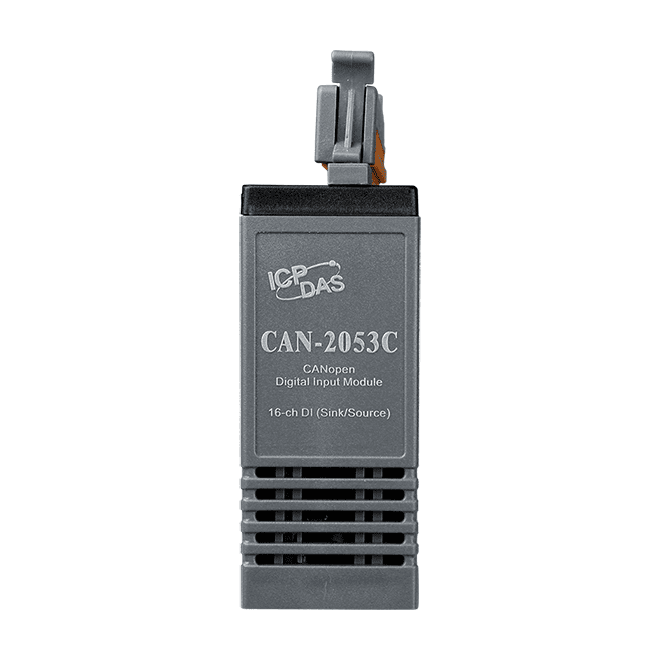

The CAN-2053C CR is a CANopen slave module that brings 16 isolated wet digital inputs onto a CANopen network. Each channel accepts sink or source wiring, so the same module can read PNP, NPN, TTL and relay contact signals without changing hardware. It is a practical choice where an engineer needs to read switch and alarm states over CANopen with galvanic separation between the field and the bus.

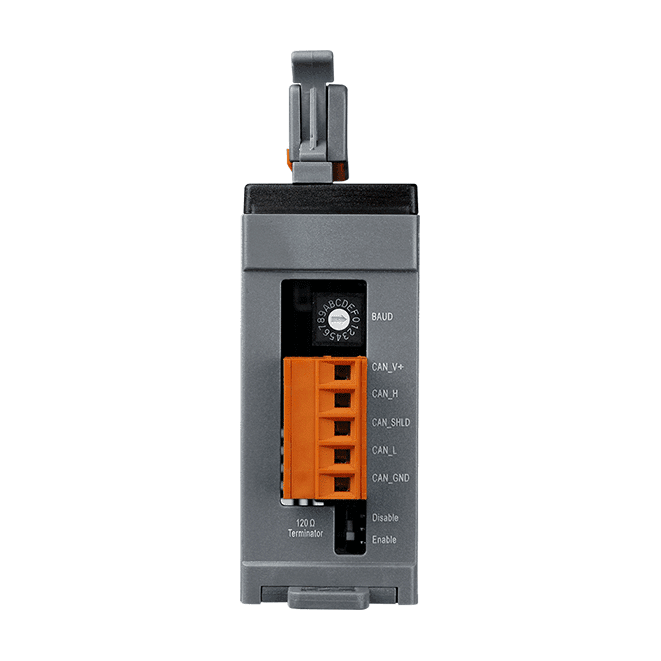

The module implements CiA 301 v4.02 and CiA 401 v2.1 and has passed validation with the CiA CANopen Conformance Test tool. A default EDS file is provided, so it can be configured from a standard CANopen master. Dynamic PDO support, a configurable and savable input polarity setting, and a built-in 120Ω terminal resistor simplify commissioning and network layout. Node IDs from 1 to 99 and baud rates from 10 k to 1 M are supported.
Input behaviour is defined by an ON voltage of +3.5 ~ +30 VDC and an OFF level of +1 VDC maximum, with 4 kV ESD contact protection on every channel. The I/O pair-connection function allows inputs to be linked between modules. The unit mounts on DIN-rail and operates from -25 ~ +75 °C.
Applications
- Alarm detector
- Switch detection
- I/O pair-connection
| Product type: | Digital input module |
|---|---|
| Interface: | CAN |
| Protocol: | CANopen |
| Digital inputs: | 16 |
| Isolation: | 3000 VDC / 2500 Vrms |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | Hardware watchdog |
| LED Indicators | |
| Status | 3 LEDs to PWR, RUN and ERR |
| Digital Input | |
| Channels | 16 (Sink/Source) |
| Type | Wet |
| ON Voltage Level | +3.5 ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Input Impedance | 3 kΩ, 0.3 W |
| CANopen | |
| Baud Rate | 10 k ~ 1 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Built-in 120Ω |
| Protocol | CiA 301 v4.02, CiA 401 v2.1 |
| Node ID | 1 ~ 99 |
| No. of PDOs | 10 RxPDO , 10 TxPDO |
| PDO Mode | Event Triggered, Remotely requested, Cyclic and acyclic SYNC |
| Error Control | Node Guarding protocol / Heartbeat Producer |
| NMT | Slave |
| EMCY Message | Yes |
| Power | |
| Consumption | 1.5 W |
| Mechanical | |
| Dimensions (mm) | 33 x 99 x 78 ( W x L x H ) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
