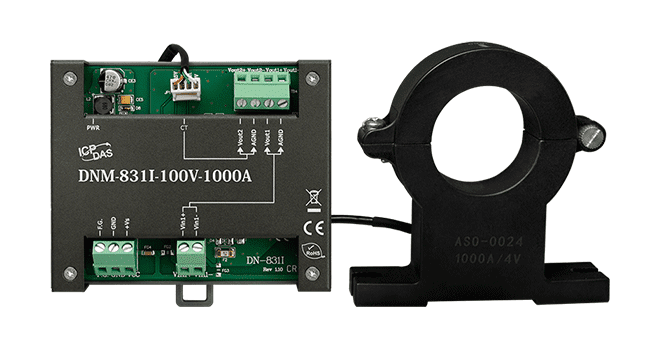

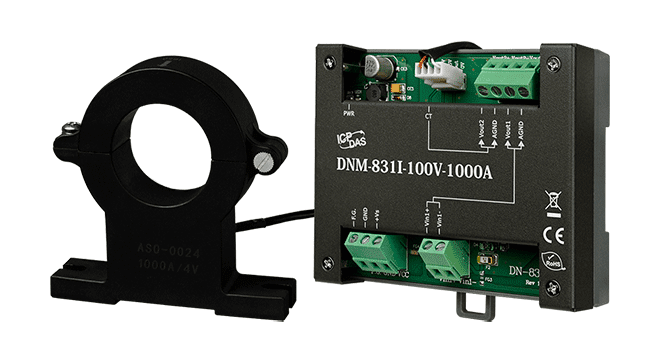

DNM-831I-100V-1000A Voltage Attenuator and Current Transformer, 1-ch Metal
Signal conditioner that attenuates ±100 V and ±1000 A inputs to ±10 V for analogue input modules. Ordering code includes CA-040415-1 cable and ASO-0024 current transformer.
- Measures ±100 V high-voltage and ±1000 A high-current inputs, both scaled to ±10 V outputs
- 3000 VDC intra-module and channel-to-channel isolation
- Linear attenuation ratio with high input impedance
- Clip-type current transformer, Φ40.5 mm inside diameter, 1.5 m leading cable
- Metal casing with DIN-rail mounting, 103 x 93 x 29 mm
- Powered from +10 VDC ~ +30 VDC, 1.8 W consumption
1.823,68 kr. pr. stk.
| 1–9 stk. | 1.823,68 kr. | |
|---|---|---|
| 10–30 stk. | 1.763,89 kr. | −3 % |
| 31+ stk. | 1.726,52 kr. | −5 % |
Produktinformation "DNM-831I-100V-1000A Voltage Attenuator and Current Transformer, 1-ch Metal"
The DNM-831I-100V-1000A pairs one high-voltage attenuator channel with one high-current transformer channel, letting a standard analogue input module measure large AC or DC voltages and currents. Inputs up to ±100 V and ±1000 A are scaled to a ±10 V output.
Electrical isolation is rated at 3000 VDC between the module's internal sections and between channels, which helps keep input-side noise away from the outputs. Its high input impedance and linear attenuation ratio make it suitable for measurement chains where signal integrity matters.
This ordering code includes the CA-040415-1 cable and ASO-0024 current transformer. The clip-type transformer, with a 40.5 mm inside diameter, fits around a conductor without disconnecting it. The metal housing mounts on DIN-rail and is rated for -25 ~ +75 °C operation.
Applications
- High-current measurement using a current transformer and analogue input module
- High-voltage AC/DC measurement with isolated voltage attenuation
- Connection to analogue input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS
| Product type: | Voltage attenuator and current transformer |
|---|---|
| Analog inputs: | 2 |
| Analog outputs: | 2 |
| Isolation: | 3000 VDC |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV contact for power line, input and output channels, ±8 kV air for random point |
| Surge (IEC 61000-4-5) | ±3 kV for power liner |
| CT | |
| Type | Clip |
| Inside Diameter | Φ40.5 mm |
| Leading Cable | 1.5 m |
| Analog Input | |
| Channels | High Current: 1 High Voltage: 1 |
| Type | AC/DC Current AC/DC Voltage |
| Range | High Current: ±1000 A High Voltage: ±100 VDC |
| Accuracy | High Current: 1% of FSR High Voltage: 1% of FSR |
| Bandwidth | High Current: 0 ~ 50 KHz High Voltage: 20 Hz ~ 20 kHz |
| Isolation | High Current: 2.5 KV @ 50 (60) HZ/1 min |
| Analog Output | |
| Channels | High Current: 1 High Voltage: 1 |
| Type | AC/DC Current AC/DC Voltage |
| Range | • High Current: ±10 VDC or 10 VAC • High Voltage: ±10 VDC or 10 VAC |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.8 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 103 x 93 x 29 (W x L x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
