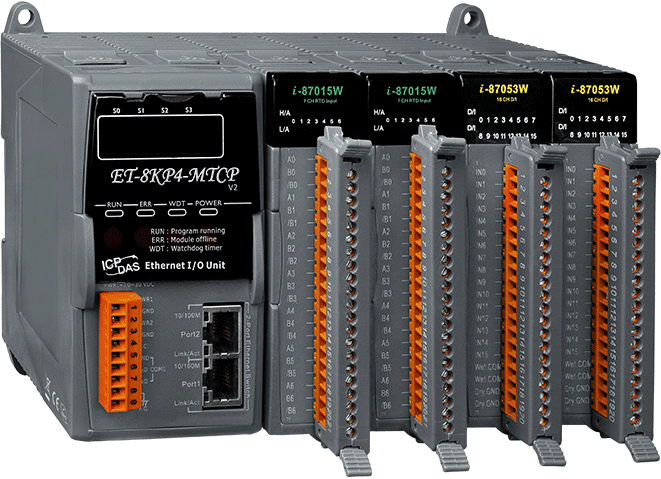

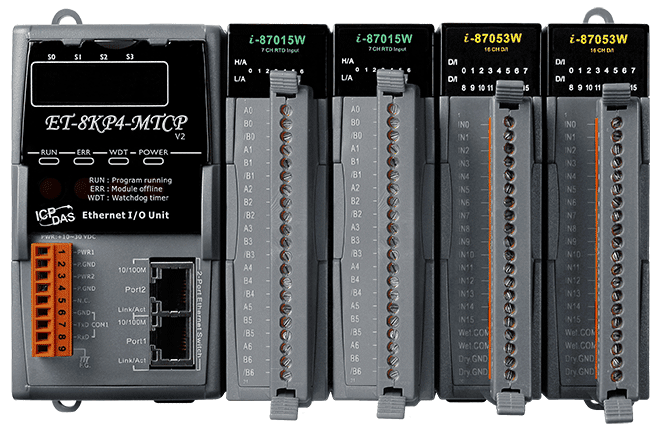

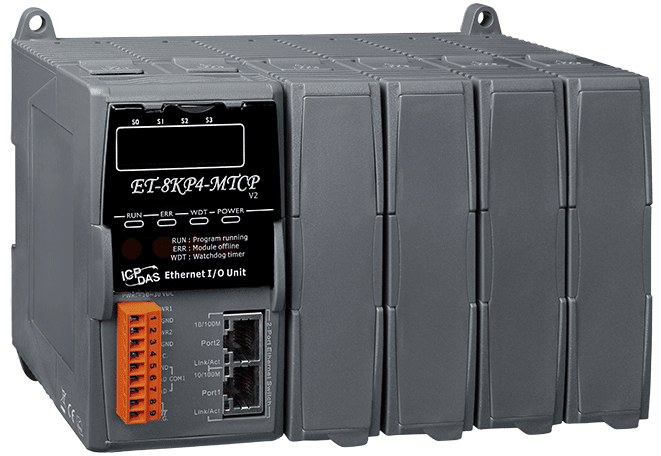

ET-8KP4-MTCP Modbus TCP Ethernet I/O Expansion Unit, 4-Slot for I-8K/I-87K
4-slot Modbus TCP expansion unit for I-8K and I-87K I/O modules over Ethernet, with two switch ports for daisy-chaining and a 10 ~ 30 VDC isolated power input.
- Modbus TCP slave interface for expanding I-8K and I-87K series I/O modules over Ethernet
- Two 10/100 Base-TX RJ-45 ports for daisy-chain topology
- Modbus TCP to RTU gateway function and Modbus RTU/ASCII slave support on RS-232
- Four I/O slots with support for more than 90 I/O modules, including analogue, digital and DI counter types
- Auto configuration and LED status indicators for fault detection
- CPU and software watchdogs, with programmable power-on and safe values
3.580,09 kr. pr. stk.
| 1–9 stk. | 3.580,09 kr. | |
|---|---|---|
| 10–30 stk. | 3.467,98 kr. | −3 % |
| 31+ stk. | 3.400,72 kr. | −5 % |
Produktinformation "ET-8KP4-MTCP Modbus TCP Ethernet I/O Expansion Unit, 4-Slot for I-8K/I-87K"
The ET-8KP4-MTCP CR extends I-8K and I-87K series I/O modules over Ethernet, giving Modbus TCP masters remote access to four I/O slots. It suits industrial monitoring and control installations where remote I/O needs to be added to an existing Modbus TCP network without a dedicated controller at the I/O location.
Two Ethernet switch ports allow units to be daisy-chained, reducing cabling and saving installation space. The unit accepts a wide 10 ~ 30 VDC input with isolated power and is rated for an operating temperature of -25 ~ +75 °C, making it suitable for harsh and electrically noisy environments.
Installation and maintenance are simplified by auto configuration and LED indicators for fault detection. Watchdog and safe-value features help protect the process if communication is lost. The unit also supports Modbus RTU/ASCII on its RS-232 console port and can act as a Modbus TCP to RTU gateway.
Applications
- Industrial monitoring and control
- Remote I/O expansion over Ethernet
- Environmental monitoring
- Harsh or electrically noisy installation environments
| Product type: | Ethernet I/O Expansion Unit |
|---|---|
| Interface: | Ethernet, RS-232 |
| Protocol: | Modbus TCP |
| Ports: | 2 x RJ-45, 1 x RS-232 |
| Isolation: | 1 kV |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Display | |
|---|---|
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x Run, 1x Module offline, 1 x WDT, 1 x Power |
| I/O Expansion | |
| I/O Type | I-87K, I-8K Series |
| Slots | 4 |
| HMI | |
| Push Button | 4 |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX |
| Protocol | Modbus TCP Slave, Modbus TCP to RTU Gateway |
| COM Ports | |
| Ports | 1 x RS-232 (Console) |
| Protocol | Modbus RTU/ASCII Slave |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 188 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
