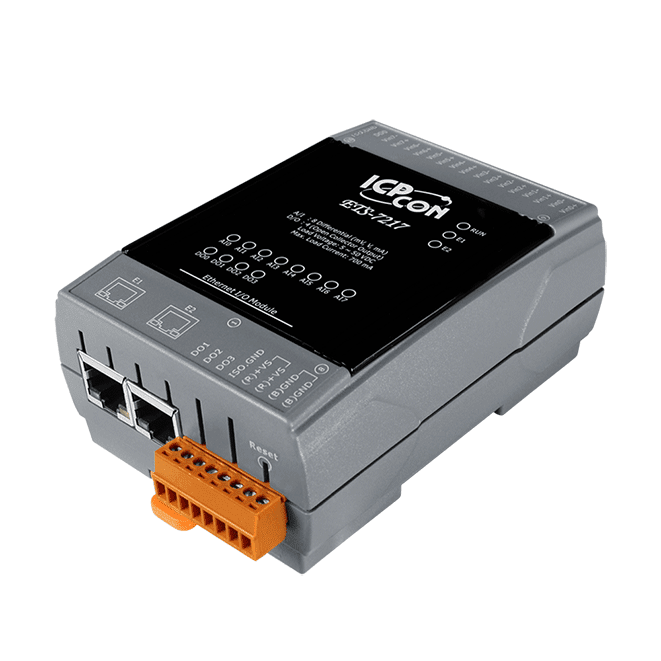

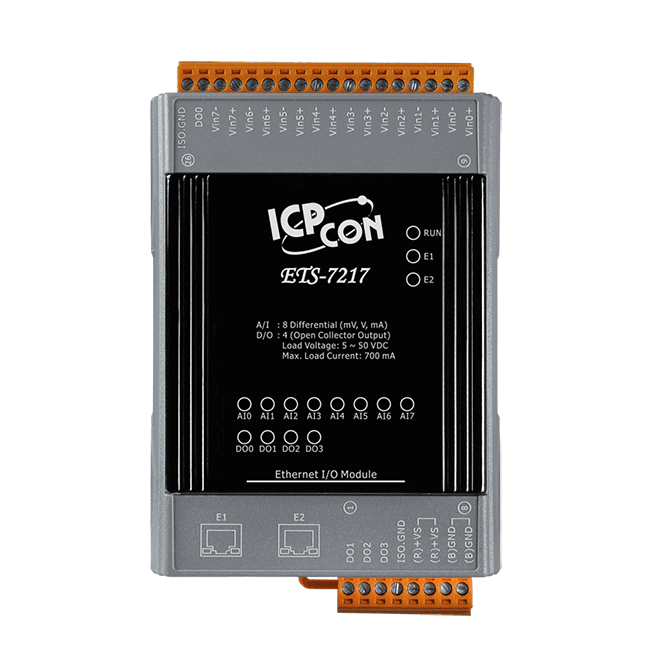

ETS-7217 Ethernet I/O Module with 2-port Switch, 8-ch AI and 4-ch DO
Ethernet I/O module with 8 differential analog inputs, 4 open-collector digital outputs and a 2-port switch for daisy-chaining, supporting Modbus TCP and MQTT.
- 8 differential analog inputs, voltage or current, with jumper-selectable ranges from ±150 mV to 4 ~ 20 mA and 240 Vrms overvoltage protection per channel
- 4 isolated open-collector digital outputs (sink) rated 700 mA per channel, with short-circuit and overload protection
- 2-port 10/100 Base-TX Ethernet switch with LAN bypass for daisy-chain topologies
- Modbus TCP, Modbus TCP/TLS, Modbus UDP, MQTT (optional TLS), Rest API, CoAP, LwM2M, SNMP and HTTP/HTTPS
- Built-in IF-THEN-ELSE logic, configured through a web interface without programming
- Dual watchdog for module and communication, with programmable power-on and safe values for outputs
2.473,96 kr. pr. stk.
| 1–9 stk. | 2.473,96 kr. | |
|---|---|---|
| 10–30 stk. | 2.399,22 kr. | −3 % |
| 31+ stk. | 2.346,90 kr. | −5 % |
Produktinformation "ETS-7217 Ethernet I/O Module with 2-port Switch, 8-ch AI and 4-ch DO"
The ETS-7217 brings eight differential analog inputs and four digital outputs to an Ethernet network, with a built-in 2-port switch so units can be daisy-chained along a line of machinery or across a building. Each analog channel can be given its own input range and can be set to accept voltage or current, which suits a mixed set of digital sensors in IIoT installations.
Control logic runs on the module itself. An IF-THEN-ELSE engine is configured through the built-in web interface, so simple automation can be set up without writing code, and mathematical functions are included. Protocol support covers Modbus TCP, Modbus TCP/TLS, MQTT, Rest API, CoAP and LwM2M.
Protection and isolation are aimed at harsh electrical environments. The analog inputs tolerate 240 Vrms overvoltage, the digital outputs are protected against short-circuit and overload, and the I/O is isolated to 2500 VDC. The module can be powered over PoE (IEEE 802.3af, Class 2) or from a +12 to +48 VDC terminal block, and mounts on a DIN rail.
Applications
- Building automation
- Factory automation
- Machine automation
- Remote maintenance
- Remote diagnosis
- Testing equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, MQTT |
| Digital outputs: | 4 |
| Analog inputs: | 8 |
| Ports: | 2 |
| PoE: | IEEE 802.3af, Class 2 |
| Isolation: | 1500 VDC (Ethernet), 2500 VDC (I/O) |
| Power input: | +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation • I/O channel monitoring and control • Timer operation • Schedule operation • Internal Register operation |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Input | |
| Channels | 8 (Differential) |
| Type | Voltage Current |
| Range | ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V ±20 mA, 0 to 20 mA, 4 to 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 Hz (total channels) Fast Mode: 50 Hz (total channels) |
| Input Impedance | Voltage: 2 MΩ Current: 125 Ω |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For 4 to 20 mA only |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Digital Output | |
| Channels | 4 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 to +50 VDC |
| Load Current | 700 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus TCP/TLS, Modbus UDP, MQTT, Rest API, CoAP, LwM2M, SNMP, SMTP, SNTP, HTTP/HTTPS |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 4.4 W (max.) |
| Powered from PoE | Yes, IEEE 802.3af, Class 2 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 72 x 120 x 38 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 to +75°C |
| Storage Temperature | -30 to +80°C |
| Humidity | 10 to 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
