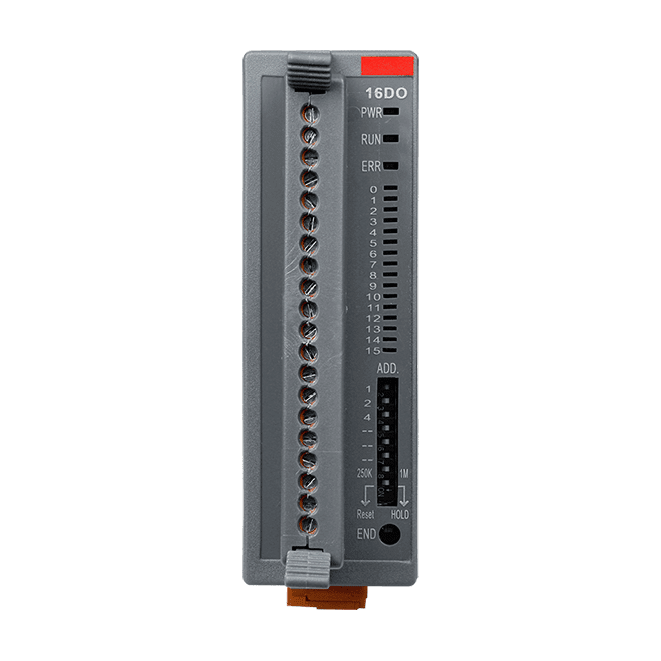

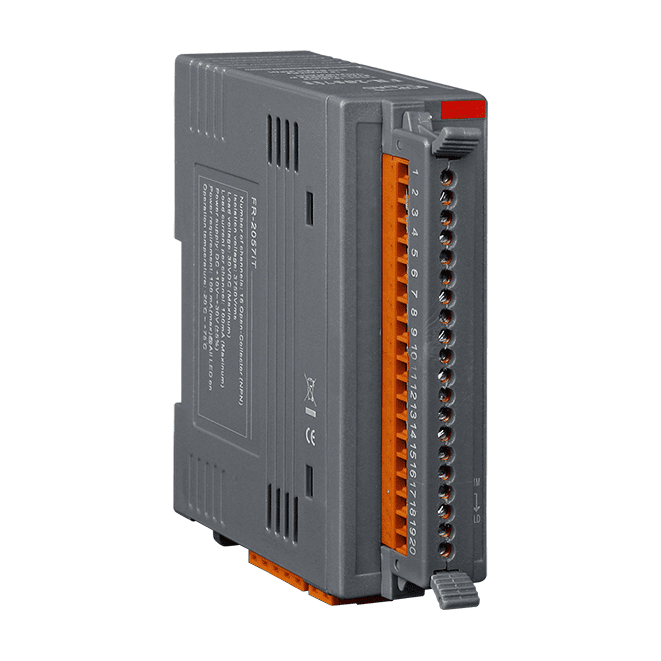

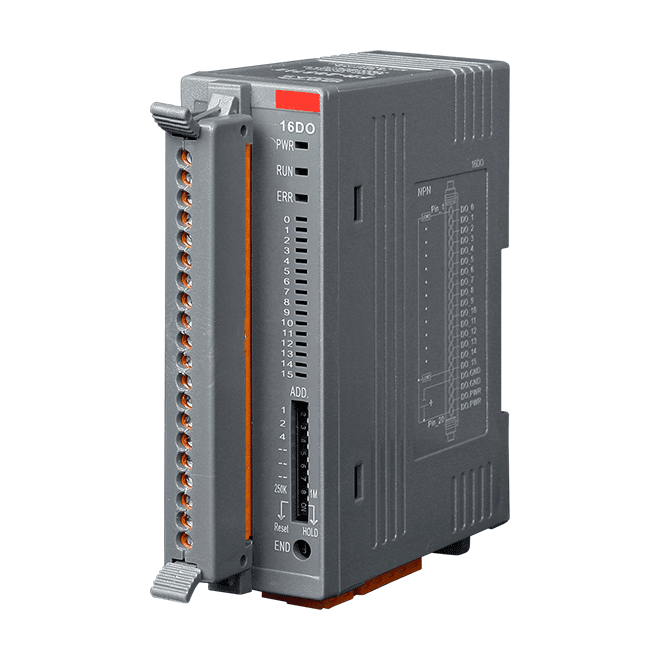

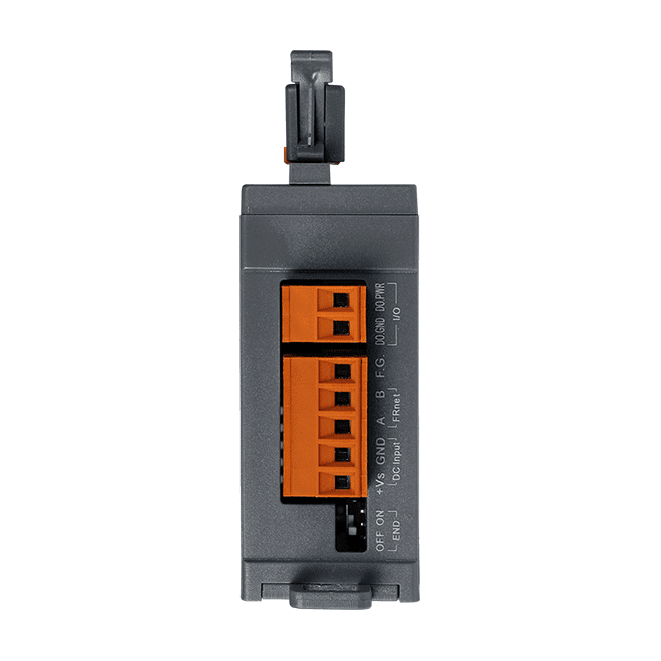

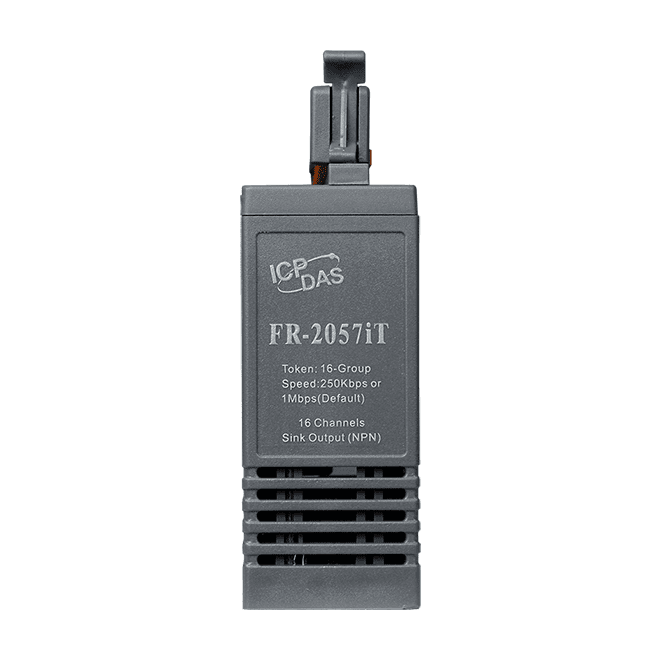

FR-2057iT FRnet I/O Module, 16-ch Isolated Sink DO
FRnet remote I/O module with 16 isolated NPN sink digital outputs, 5 to 30 VDC and 100 mA max. per channel, for daisy-chained control from PC, PAC or PLC.
- 16 isolated open-collector sink (NPN) digital outputs, 5 to 30 VDC load voltage, 100 mA max. per channel
- FRnet interface with daisy-chaining of multiple FR-2000 modules
- Transfer speed selectable by DIP switch: 250 kbps or 1 Mbps (default)
- Transfer distance up to 400 m at 250 kbps or 100 m at 1 Mbps, using Belden 9841 cable
- Broadcasting (1:n) data transmission and easy output duplication
- Fixed I/O scan time and I/O synchronisation, with 2.88 ms or 0.72 ms cyclic time
1.158,49 kr. pr. stk.
| 1–9 stk. | 1.158,49 kr. | |
|---|---|---|
| 10–30 stk. | 1.121,12 kr. | −3 % |
| 31+ stk. | 1.098,69 kr. | −5 % |
Produktinformation "FR-2057iT FRnet I/O Module, 16-ch Isolated Sink DO"
FR-2057iT CR is an FRnet digital output module that adds 16 isolated open-collector sink (NPN) outputs to a PC, PAC or PLC controller. Modules are daisy-chained over a single twisted-pair line, so the output count can be extended without running separate wiring back to the controller.
The module suits engineers who need deterministic output updates. Its fixed I/O scan time and I/O synchronisation keep outputs predictable across the chain, and broadcasting (1:n) allows one transmission to address several modules. Outputs can also be duplicated easily. Protocol handling requires no additional software overhead.
Key electrical data includes a 3750 Vrms intra-module isolation rating, a 10 to 30 VDC isolated power input with reverse polarity protection, and a maximum consumption of 2.4 W. The plastic DIN-rail housing measures 33 x 102 x 110 mm (W x L x H) and operates from -25 to +75 °C.
Applications
- Extending remote digital output control from a PC, PAC or PLC
- Switching NPN sink loads in distributed machine and panel installations
- Wire-saving distributed output control on FRnet networks
| Product type: | FRnet I/O Module |
|---|---|
| Interface: | FRnet |
| Digital outputs: | 16 |
| Isolation: | 3750 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 Vrms |
| EMS Protection | |
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| Surge (IEC 61000-4-5) | Yes |
| LED Indicators | |
| Status | Power, Communication Run, Communication Error, Terminal Resistor, Digital Output |
| Digital Output | |
| Channels | 16 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | +5 VDC ~ +30 VDC Max. |
| Load Current | 100 mA Max. |
| Isolation | 3750 Vrms |
| FRnet | |
| Wire Cable | Belden 9841 (2P twisted-pair cable), When different cables are used, the transmission distance may be changed |
| Transfer Speed | 250 kbps and 1 Mbps (Default) DIP Switch Settings |
| Transfer Distance | Max. 400 m for speed 250 kbps Max. 100m for speed 1Mbps (Default) |
| Cyclic Time | 2.88 ms for speed 250 kbps 0.72 ms for speed 1 Mbps (Default) |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC (Isolation) |
| Consumption | 2.4 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 102 x 110 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
