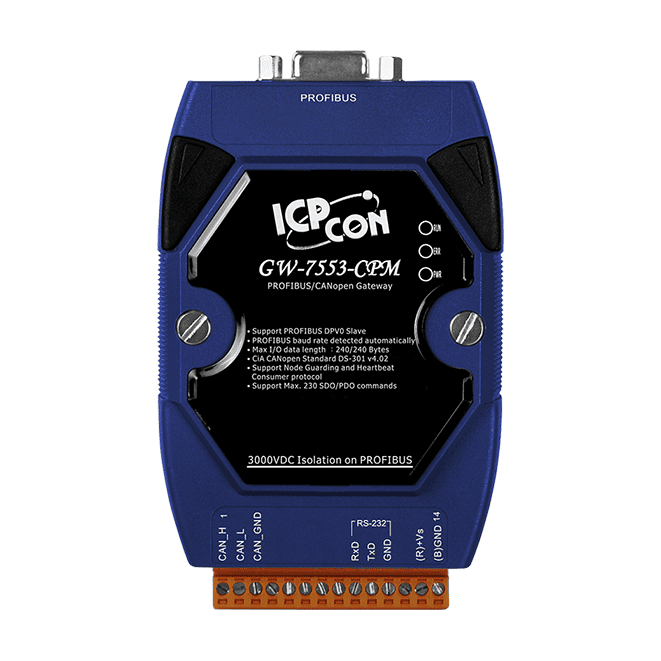

GW-7553-CPM PROFIBUS DP to CANopen Gateway, Plastic Case
PROFIBUS DP-V0 slave to CANopen gateway in a plastic case, letting a PROFIBUS master access CANopen slave devices without custom integration.
- PROFIBUS DP-V0 slave giving a PROFIBUS master access to CANopen slave devices
- Automatic PROFIBUS transmission rate detection, from 9.6 k up to 12 M
- Up to 240 bytes of input and 240 bytes of output data
- CANopen DS-301 v4.02 support with 110 SDO/PDO commands and Node Guarding and Heartbeat Consumer protocol
- Station address 0 to 126 set by DIP switch
- 2500 Vrms network isolation and 3000 VDC PROFIBUS-side isolation
2.967,22 kr. pr. stk.
| 1–9 stk. | 2.967,22 kr. | |
|---|---|---|
| 10–30 stk. | 2.877,53 kr. | −3 % |
| 31+ stk. | 2.817,74 kr. | −5 % |
Produktinformation "GW-7553-CPM PROFIBUS DP to CANopen Gateway, Plastic Case"
GW-7553-CPM is a PROFIBUS DP-V0 slave gateway that places CANopen devices on a PROFIBUS network. The PROFIBUS master reads and writes the CANopen nodes through the gateway, so existing CANopen equipment can be brought into a PROFIBUS system without replacing it.
The gateway supports the CiA CANopen DS-301 v4.02 standard, with 110 CANopen SDO/PDO commands and the Node Guarding and Heartbeat Consumer protocol. The PROFIBUS transmission rate is detected automatically, the station address is set from 0 to 126 with a DIP switch, and up to 240 bytes of input and 240 bytes of output data are available. Galvanic isolation is provided on both networks, with 3000 VDC on the PROFIBUS side and 2500 Vrms for the high-speed iCoupler network isolation.
Firmware and configuration are handled over RS-232 using the configuration utility software. Status is shown by PWR, RUN and ERR LEDs, and the unit mounts on a DIN-rail.
- PROFIBUS DP-V0 slave, station address 0 to 126 set by DIP switch
- Automatic PROFIBUS transmission rate detection, from 9.6 k up to 12 M
- Up to 240 bytes input and 240 bytes output data
- CANopen DS-301 v4.02, 110 SDO/PDO commands
Applications
- Industrial Automation
- Factory Automation
- Process Automation
| Product type: | Gateway |
|---|---|
| Interface: | CANopen, PROFIBUS, RS-232 |
| Protocol: | CANopen, PROFIBUS DP-V0 |
| Ports: | RS-232 |
| Isolation: | 2500 Vrms |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| COM Ports | |
| Ports | RS-232 (For updating firmware and configuration) 3-pin screwed terminal block (RxD, TxD, GND) |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 1, 2 |
| CAN | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Specification | CANopen DS-301 ver4.02 |
| Isolation | 1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| PROFIBUS | |
| Controller | Profichip VPC3+C |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 2.5 W |
| Mechanical | |
| Dimensions (mm) | 72 x 33 x 119 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +85 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
