I-25166-ENC IP66 Industrial Enclosure with DIN-Rail, 255 x 181 x 166 mm
IP66 industrial enclosure for I/O modules and devices in harsh industrial or protected outdoor areas. Includes a DIN-rail, cable glands and captive lid screws.
- IP66 ingress protection rating
- Sturdy housing that protects enclosed modules from moisture and UV rays
- Built-in DIN-rail for easy mounting
- Self-drilling points for fixing
- Operating temperature range -40 ~ +80 °C
- Dimensions 255 mm x 181 mm x 166 mm (W x L x H)
792,25 kr. pr. stk.
| 1–9 stk. | 792,25 kr. | |
|---|---|---|
| 10–30 stk. | 762,36 kr. | −4 % |
| 31+ stk. | 747,41 kr. | −6 % |
Produktinformation "I-25166-ENC IP66 Industrial Enclosure with DIN-Rail, 255 x 181 x 166 mm"

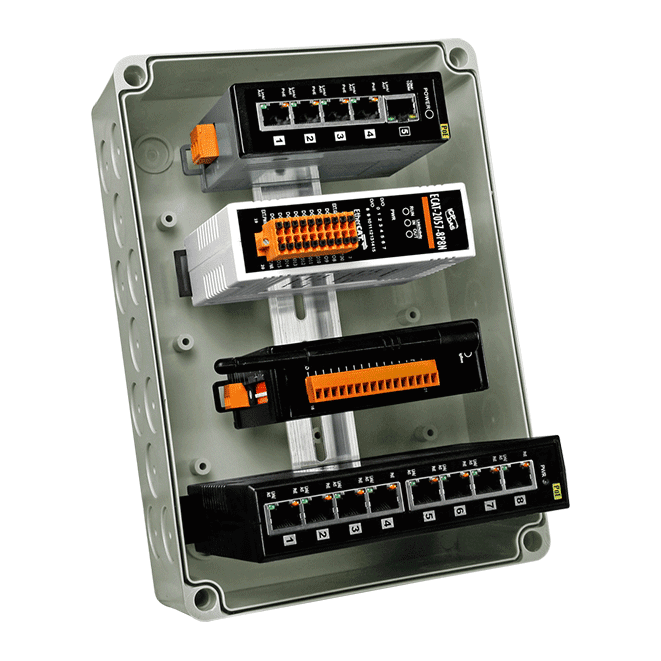

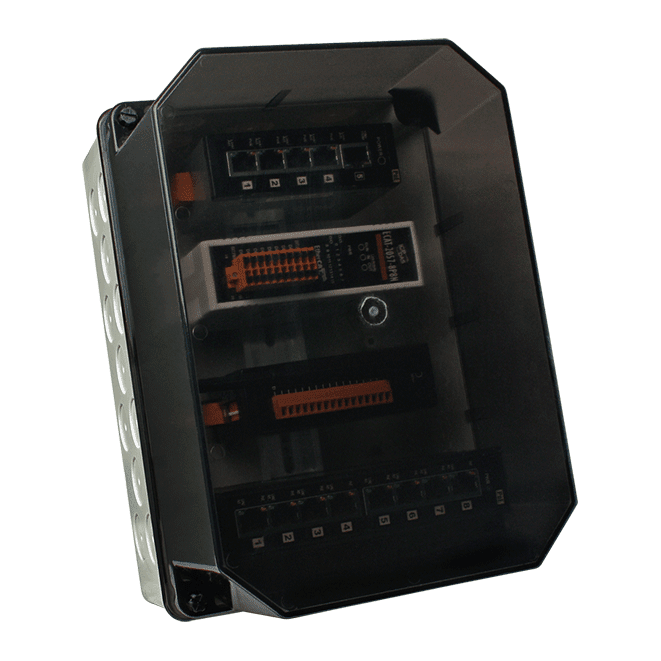

The I-25166-ENC is an IP66 industrial enclosure for housing automation modules in factory floor installations or protected outdoor areas. Its sturdy housing shields the enclosed equipment from moisture and UV rays.
A built-in DIN-rail simplifies mounting, and the enclosure provides self-drilling points for fixing. The kit includes two 4PASO-0028 cable glands (cable range Φ9 ~ 14 mm), one 4SASO-0007 cable gland (cable range Φ7 ~ 4 mm), four captive lid screws and a 210 mm DIN-rail.
Key dimensions are 255 mm x 181 mm x 166 mm (W x L x H), with an operating temperature range of -40 ~ +80 °C. The enclosure is RoHS and WEEE certified.
Applications
- Industrial automation installations
- Protected outdoor areas
- Housing remote I/O and control modules in harsh environments
| Product type: | Enclosure |
|---|---|
| Operating temperature: | -40 ~ +80 °C |
| Mounting: | DIN-rail |
| Housing: | IP66 |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | 255 mm x 181 mm x 166 mm (W x L x H) |
| Ingress Protection Rating | IP66 |
| Environment | |
| Operating Temperature | -40 ~ +80 °C |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
