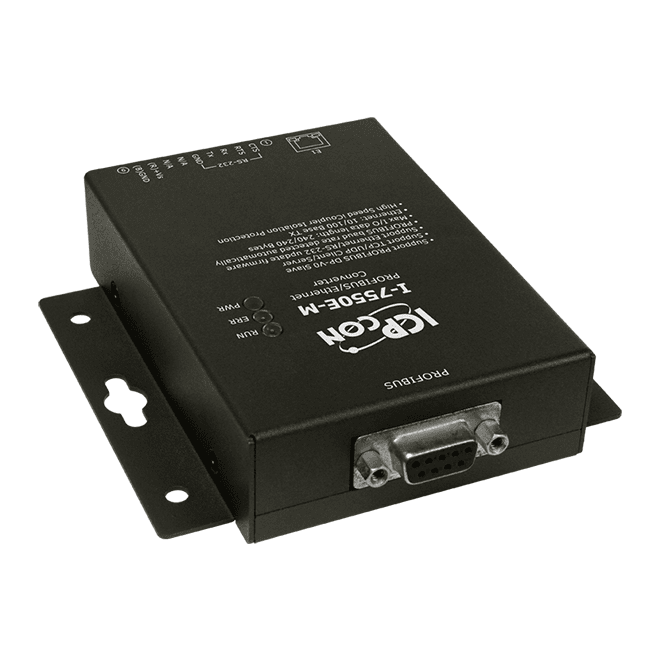

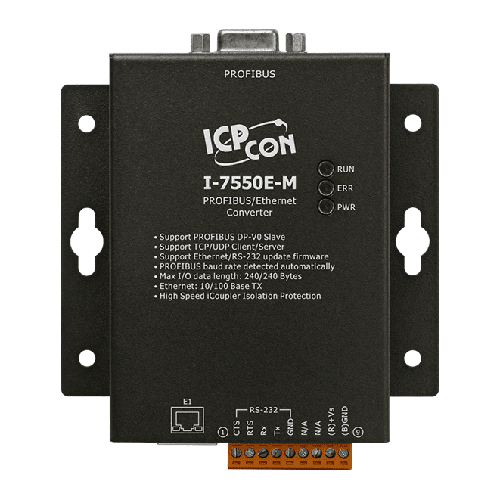

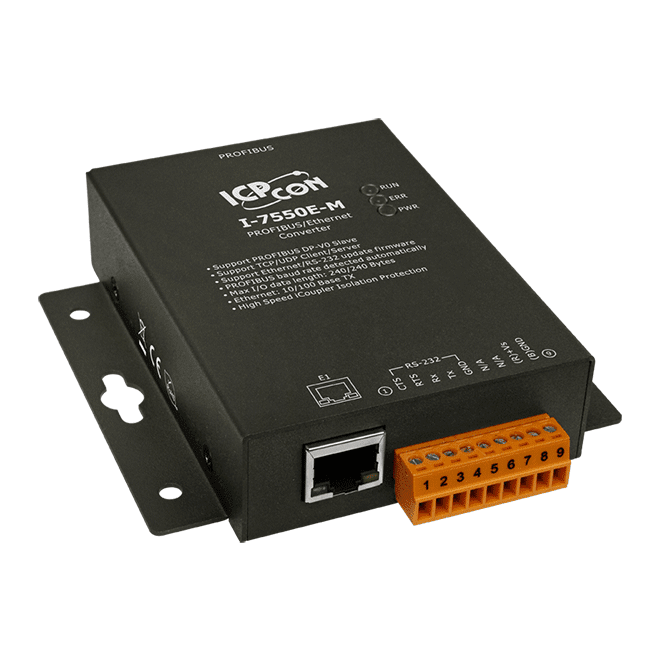

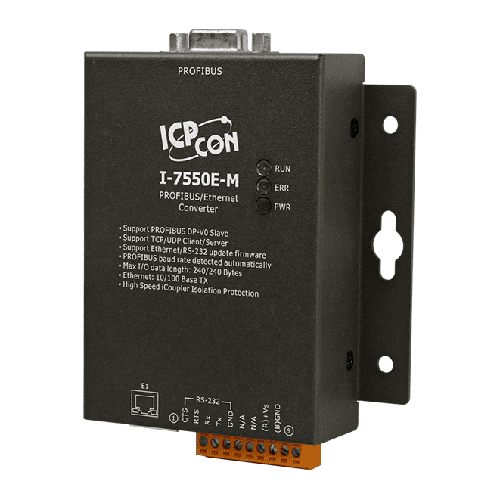

I-7550E-M PROFIBUS DP-V0 Slave to Ethernet Converter, Metal Case
PROFIBUS DP-V0 slave to Ethernet converter in a metal DIN-rail case, allowing a PROFIBUS master to exchange data with TCP/UDP Ethernet devices.
- PROFIBUS DP-V0 slave interface with automatic transmission rate detection
- Up to 240 bytes input and 240 bytes output data length
- Slave address 0 to 126, set by DIP switch or EEPROM
- TCP/UDP server and client modes over 10/100Base-TX Ethernet (auto-negotiating, Auto_MDIX)
- Web-based configuration through the built-in web server
- 2500 Vrms bus-to-logic and 3000 VDC DC-to-DC isolation on the PROFIBUS side
2.802,79 kr. pr. stk.
| 1–9 stk. | 2.802,79 kr. | |
|---|---|---|
| 10–30 stk. | 2.720,57 kr. | −3 % |
| 31+ stk. | 2.660,78 kr. | −5 % |
Produktinformation "I-7550E-M PROFIBUS DP-V0 Slave to Ethernet Converter, Metal Case"
I-7550E-M is a PROFIBUS DP-V0 slave gateway that links a PROFIBUS master to Ethernet devices that speak TCP or UDP. It can be configured as a TCP/UDP server or client, so it can be matched to the communication pattern your network requires.
Configuration is handled through the built-in web server, so settings can be made from a standard web browser. Slave addressing is set by DIP switch or stored in EEPROM, and the module accepts up to 240 bytes of input data and 240 bytes of output data. The transmission rate is detected automatically across the listed PROFIBUS baud rates, from 9.6 k up to 12 M.
The ordering code I-7550E-M CR specifies the metal-cased version, suited to DIN-rail installation in industrial cabinets. Isolation is rated at 2500 Vrms for bus-to-logic and 3000 VDC for DC-to-DC on the PROFIBUS side, and the unit operates from -25 to +75 °C.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | PROFIBUS to Ethernet Converter |
|---|---|
| Interface: | Ethernet, PROFIBUS, RS-232 |
| Protocol: | PROFIBUS DP-V0 |
| Isolation: | 2500 Vrms (bus-to-logic), 3000 VDC (DC-to-DC) |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| Ethernet | |
| Ports | 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| COM Ports | |
| Ports | RS-232 (For updating firmware) 5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND ) |
| Baud Rate | 115200 |
| Parity | None |
| Data Bit | 8 |
| Stop Bit | 1 |
| PROFIBUS | |
| Controller | Profichip VPC3+C |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 2.5 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 96 x 33 x 119 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +85 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
