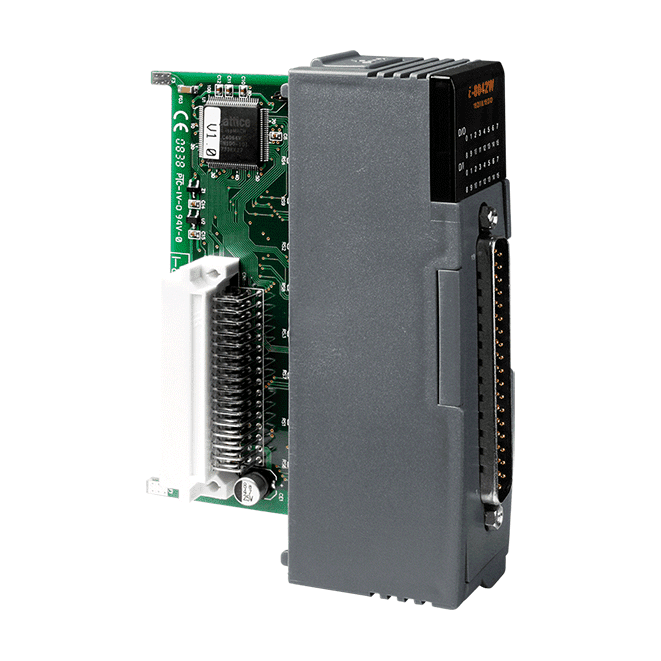

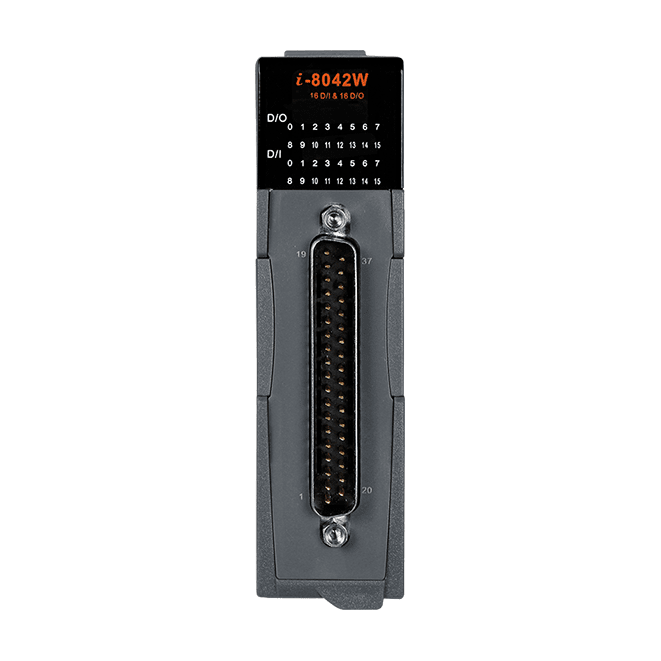

I-8042W-G Isolated Digital I/O Module, 16-ch Wet DI and 16-ch Sink DO
16-channel isolated wet-contact digital input and 16-channel isolated sink-type digital output module for the I-8K/I-87K High Profile series, with 3750 VDC intra-module isolation.
- 16 isolated digital inputs (wet contact) with sink or source wiring selected by connection
- 16 isolated open-collector digital outputs, sink (NPN) type, with short-circuit protection
- 3750 VDC intra-module isolation and ±4 kV ESD protection on each terminal as standard
- Power-on value and safe value options for the outputs
- 32 LED indicators: one power and communication LED plus 32 I/O status LEDs
- Includes CA-4002F DB37 female connector with plastic cover
1.106,17 kr. pr. stk.
| 1–9 stk. | 1.106,17 kr. | |
|---|---|---|
| 10–30 stk. | 1.076,27 kr. | −3 % |
| 31+ stk. | 1.053,85 kr. | −5 % |
Produktinformation "I-8042W-G Isolated Digital I/O Module, 16-ch Wet DI and 16-ch Sink DO"
The I-8042W-G CR is a 16-channel isolated digital input and 16-channel isolated digital output module for automation and control applications. Every input and output channel is photocoupler-isolated.
Each input can be wired for sink or source operation, giving flexibility when matching field devices. The outputs are isolated open-collector, sink (NPN) type, with short-circuit protection. Power-on and safe values can be configured for the outputs, and 32 LED indicators show channel status.
This ordering code includes the CA-4002F DB37 female connector with plastic cover. It is suited to the applications listed below.
Applications
- Industry automation
- Industrial machinery
- Building automation
- Food and beverage
- Semiconductor fabrication
- Control systems
| Product type: | Digital I/O Module |
|---|---|
| Interface: | DB37 |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 32 x I/O |
| Digital Input | |
| Channels | 16 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 ~ +30 VDC |
| OFF Voltage Level | +4 VDC Max. |
| Input Impedance | 3 kΩ, 0.33W |
| Digital Output | |
| Channels | 16 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Overload Protection | 1.1 A |
| Power | |
| Consumption | 1.5 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 85 x 114 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
