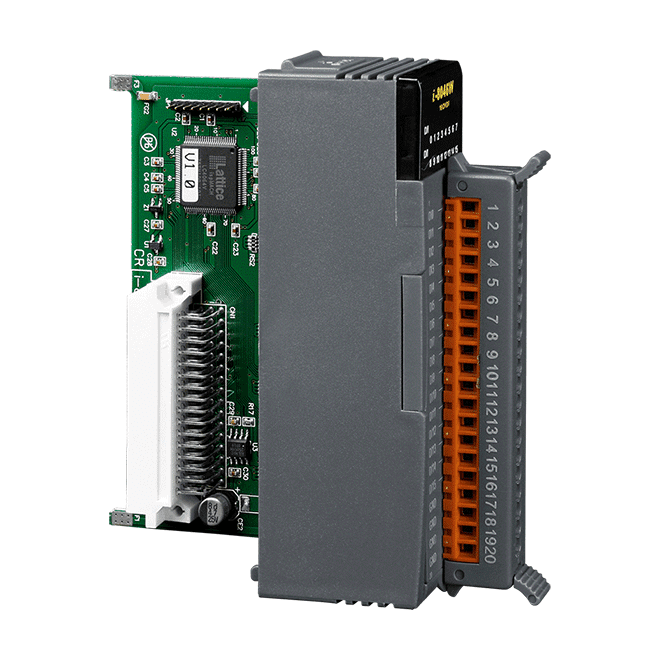

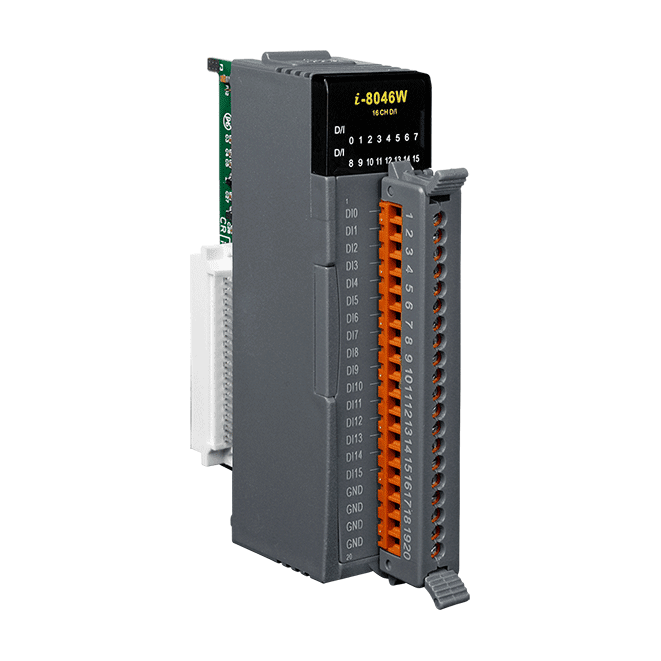

I-8046W-G 16-ch Isolated Dry Contact Digital Input Module
16-channel isolated digital input module for dry contact signals, with up to 500 m effective distance, 16 status LEDs and 3750 VDC intra-module isolation.
- 16 isolated digital input channels for dry contact signals
- Up to 500 m effective distance for dry contact connections
- Photocoupler isolation with 3750 VDC intra-module isolation
- ±4 kV ESD protection on each terminal (IEC 61000-4-2)
- 16 I/O status LEDs plus 1 power and communication LED
- Source type digital input; ON when connected to GND, OFF when open
739,94 kr. pr. stk.
| 1–9 stk. | 739,94 kr. | |
|---|---|---|
| 10–30 stk. | 717,51 kr. | −3 % |
| 31+ stk. | 702,57 kr. | −5 % |
Produktinformation "I-8046W-G 16-ch Isolated Dry Contact Digital Input Module"
The I-8046W-G CR is a 16-channel digital input module from the I-8K/I-87K High Profile PAC I/O range, aimed at engineers who need to read dry contact switches over long cable runs. Each channel is photocoupler isolated, and the module is rated for an effective distance of up to 500 m on dry contact connections.
Protection and noise immunity: Beyond photocoupler isolation, the module offers ±4 kV ESD protection on each terminal (IEC 61000-4-2) and 3750 VDC intra-module isolation, which supports reliable operation in electrically noisy plants.
- Dry contact inputs wired to GND for ON and left open for OFF
- One LED per channel plus a combined power and communication LED for quick fault finding
- Power consumption of 1.3 W max.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Digital input module |
|---|---|
| Digital inputs: | 16 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input | |
| Channels | 16 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source |
| ON Voltage Level | Connect to GND |
| OFF Voltage Level | Open |
| Effective Distance | 500 m Max. |
| Power | |
| Consumption | 1.3 W Max. |
| Mechanical | |
| Dimensions (mm) | 30 x 102 x 115 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
