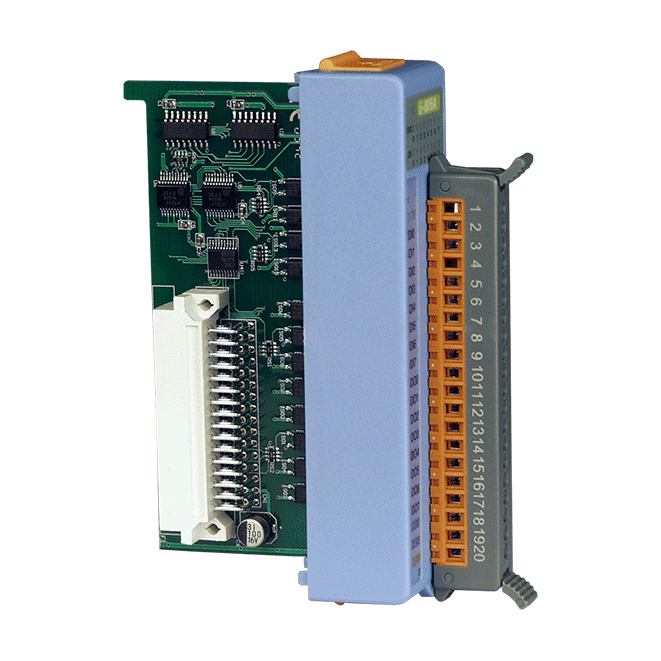

I-8054 Isolated Digital I/O Module, 8-ch DI and 8-ch Sink-type DO
Eight isolated digital inputs and eight sink-type open collector outputs in one low-profile module, with 3750 VDC intra-module isolation and 16 I/O status LEDs.
- 8 isolated digital input channels with wet contact type and sink/source (NPN/PNP) operation
- 8 isolated open collector digital output channels, sink type, 700 mA per channel
- Overload protection on the sink-type digital output channels
- 3750 VDC intra-module isolation
- ±4 kV ESD protection (contact) for each terminal
- 16 I/O status LEDs plus 1 power and communication LED
724,99 kr. pr. stk.
| 1–9 stk. | 724,99 kr. | |
|---|---|---|
| 10–30 stk. | 702,57 kr. | −3 % |
| 31+ stk. | 687,62 kr. | −5 % |
Produktinformation "I-8054 Isolated Digital I/O Module, 8-ch DI and 8-ch Sink-type DO"
The I-8054 CR combines eight isolated digital input channels and eight isolated digital output channels in one low-profile I-8K/I-87K module. It suits engineers who need to read field contacts and switch loads on the same I/O point count without adding separate modules.
The digital inputs accept wet contact signals and work with both sink and source wiring. The outputs are isolated open collector channels operating in sink mode, rated 700 mA per channel with a load voltage from +5 VDC to +50 VDC, and each output has overload protection. Sixteen I/O LEDs show the state of every input and output channel, and a separate LED indicates power and communication, which simplifies commissioning and fault finding.
- Isolation is rated at 3750 VDC within the module, and ESD immunity is ±4 kV contact for each terminal.
- The CR suffix identifies the blue cover version of the I-8054.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Digital I/O Module |
|---|---|
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Isolation: | 3750 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Input Impedance | 10 kΩ, 0.5 W |
| Digital Output | |
| Channels | 8 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 VDC ~ +50 VDC |
| Load Current | 700 mA/Channel |
| Power | |
| Consumption | 0.55 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
