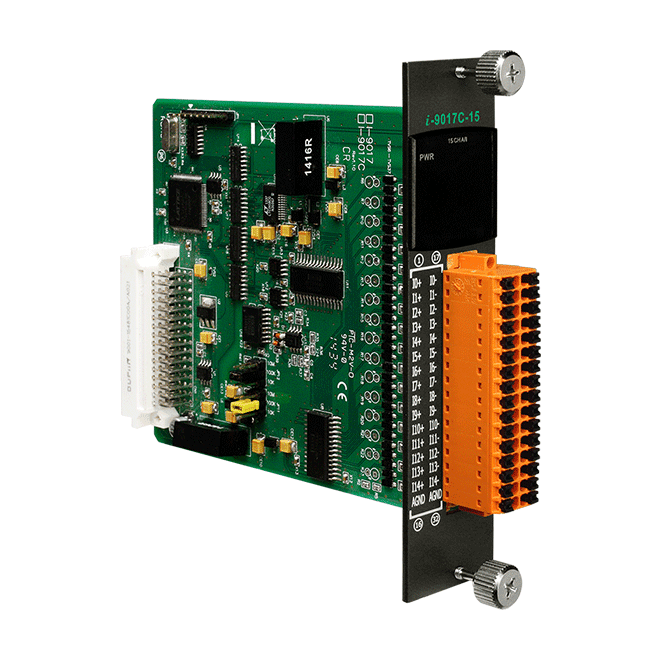

I-9017C-15 Current Input Module, 15-ch Differential, 14-bit 90 KS/s
15-channel differential current input module with 14-bit resolution, ±20 mA range and sampling up to about 90 KS/s. Suited to vibration analysis and process monitoring.
- 15 differential current input channels, ±20 mA range
- 14-bit resolution with 100 kHz A/D converter and 100 kHz bandwidth
- Up to about 90 KS/s in single-channel polling mode
- Polling or interrupt A/D trigger modes
- 2500 VDC intra-module isolation
- ±4 kV contact and ±8 kV air ESD protection
2.608,50 kr. pr. stk.
| 1–9 stk. | 2.608,50 kr. | |
|---|---|---|
| 10–30 stk. | 2.533,75 kr. | −3 % |
| 31+ stk. | 2.481,43 kr. | −5 % |
Produktinformation "I-9017C-15 Current Input Module, 15-ch Differential, 14-bit 90 KS/s"
The I-9017C-15 is a high-speed analogue input module from the I-9K/I-97K series, built for engineers who need to capture current signals across 15 differential channels. Each channel accepts ±20 mA and is digitised by a 14-bit converter with a 100 kHz bandwidth.
Sampling performance depends on the acquisition mode. Single-channel polling reaches about 90 KS/s, single-channel interrupt mode runs at 50 KS/s, and a 15-channel scan delivers 16 KS/s. The A/D conversion can be triggered by polling or by interrupt, so the module can be matched to the timing requirements of the host application.
- Intra-module isolation of 2500 VDC
- ESD protection rated at ±4 kV contact and ±8 kV air
- Operating range of -25 ~ +75 °C
- Certified to CE, UKCA, FCC, RoHS and WEEE requirements
Applications
- High-speed data acquisition
- Process monitoring and control
- Vibration analysis
- Digital pattern generation from digital I/O port
| Product type: | Analog Input Module |
|---|---|
| Analog inputs: | 15 differential |
| Isolation: | 2500 VDC |
| Operating temperature: | -25 ~ +75 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | 1 x Power and Communication |
| Analog Input | |
| Channels | 15-ch Differential |
| Type | Current |
| Range | -20 mA ~ +20 mA |
| Sampling Rate | Single Channel Polling Mode: about 90K S/s Single Channel Interrupt Mode: 50K S/s 15-channel Scan Mode : 16 K S/s |
| Bandwidth | 100 KHz |
| Input Impedance | 125 Ω |
| Zero Drift | ± 0.1 uV/°C |
| Span Drift | ± 10 ppm/°C |
| Power | |
| Consumption | 2 W Max. |
| Mechanical | |
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
