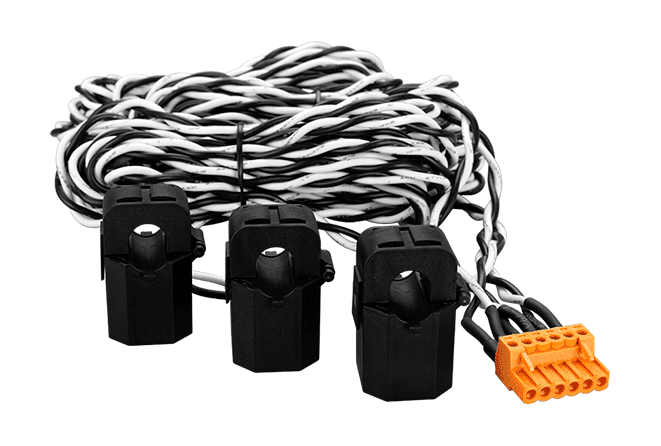

The CA-SCT10P-60A-L040-3P is a split-core current transformer for energy monitoring. Its 10 mm aperture clamps around an existing conductor without disconnecting the circuit, which suits retrofit metering in distribution panels.This ordering code is supplied as a set of three CTs, each with a 4 m leader cable, and is rated for up to 60A with a 12:1 CT ratio and 1% accuracy. It is designed for the PM-2133DP, PM-3133P and PM-4324(A)P power meters.Choose this variant when your measured current falls in the 0.05A to 60A range and a 10 mm conductor aperture is sufficient. Larger conductors or higher currents need one of the other CA-SCT series ratings.ApplicationsEnergy management and power meteringCurrent monitoring in distribution panelsRetrofit submetering on existing conductors

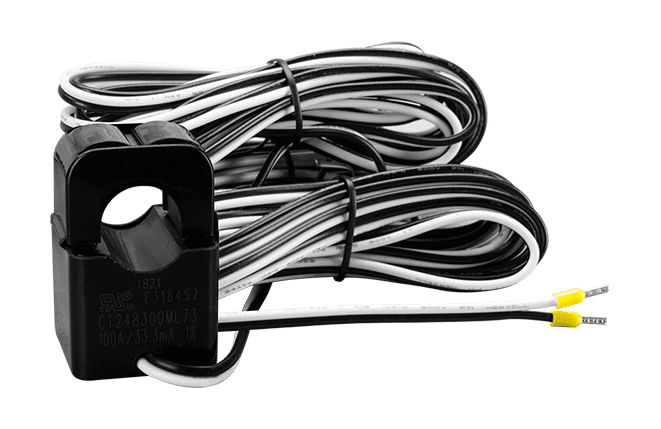

The CA-SCT16I-100A-L080 is a split-core current transformer for measuring AC current on existing conductors. Its split design lets it be clamped around a cable without disconnecting the circuit, which suits retrofit energy monitoring. It provides one channel with a 100A rating and a Φ16mm aperture.This variant is intended for use with the iWSN and iXN series. The 8 m wire gives room to route the sensor from the conductor to the measuring device. The source data states a maximum input voltage of 500 VAC at 50/60 Hz.Accuracy is specified as 1% for the CT alone. When used with iWSN-1110X, iWSN-1131P, iWSN-750P or iWSN-757P, the stated accuracy is ±3% or ±0.3 A. The unit is RoHS and WEEE certified.ApplicationsCurrent measurement for power metering with iWSN and iXN series systemsRetrofit energy monitoring on existing conductors

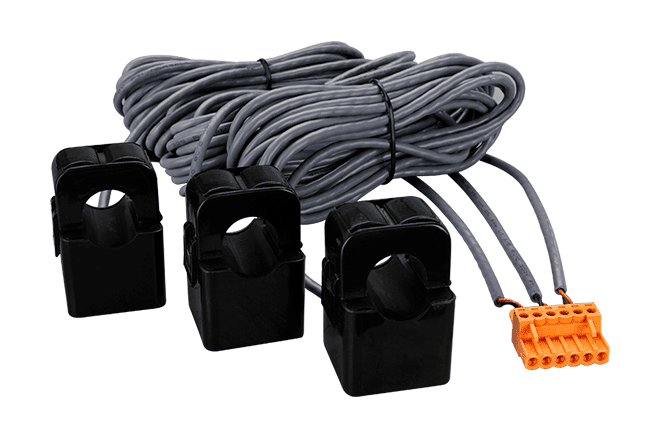

CA-SCT16P-100A-L040-3P is a split-core current transformer rated for 100 A input with a 16 mm inner diameter. Its split core lets it be fitted around an existing conductor without disconnecting the circuit, which suits retrofit energy monitoring.The transformer is designed for use with the PM-2133DP, PM-3133P and PM-4324(A)P power meter series. It has a 1% accuracy rating, a 0.1 A minimum input current and a CT ratio of 20:1, with a 4 M leader cable supplied.This ordering code is sold as a set of three CTs, one per phase. Specify it when your 100 A feeder falls within the 16 mm aperture; other ratings and apertures are listed separately in the series.ApplicationsEnergy management and sub-meteringPower monitoring with PM-2133DP, PM-3133P or PM-4324(A)P power metersRetrofit current measurement on existing installations

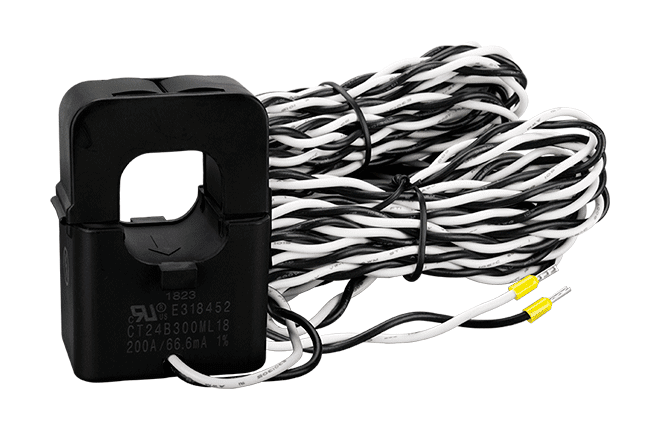

The CA-SCT24I-200A-L080 is a single-channel split-core current transformer rated at 200A, with a Φ24mm aperture. Its split-core construction lets it be fitted around an existing conductor, which suits retrofit metering work where the circuit cannot easily be disconnected.Supplied with an 8 m lead, this CT is intended for use with the iWSN and iXN series. The maximum input voltage is 500VAC at 50/60Hz. Accuracy is rated at 1% for the CT alone, and at ±3% or ±0.3A when used with the iWSN-1110X, iWSN-1131P, iWSN-750P and iWSN-757P.Choose this variant when you need a 200A-rated CT with a Φ24mm aperture and an 8 m lead for iWSN or iXN metering installations.ApplicationsEnergy managementPower meteringCurrent monitoring on iWSN and iXN series installations
