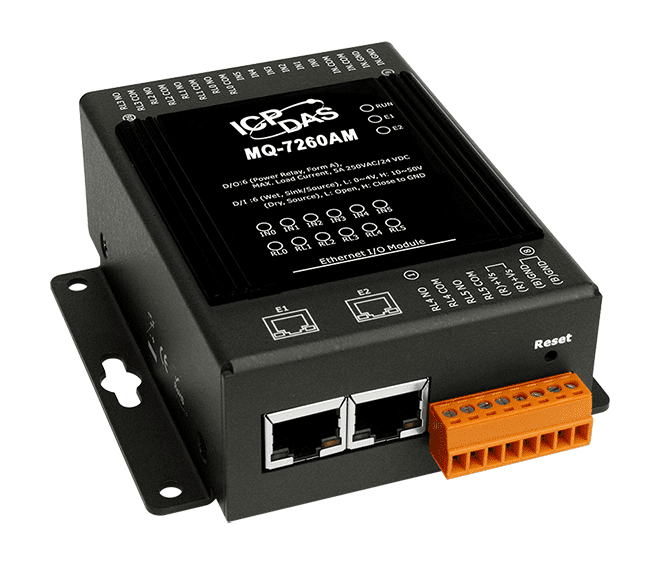

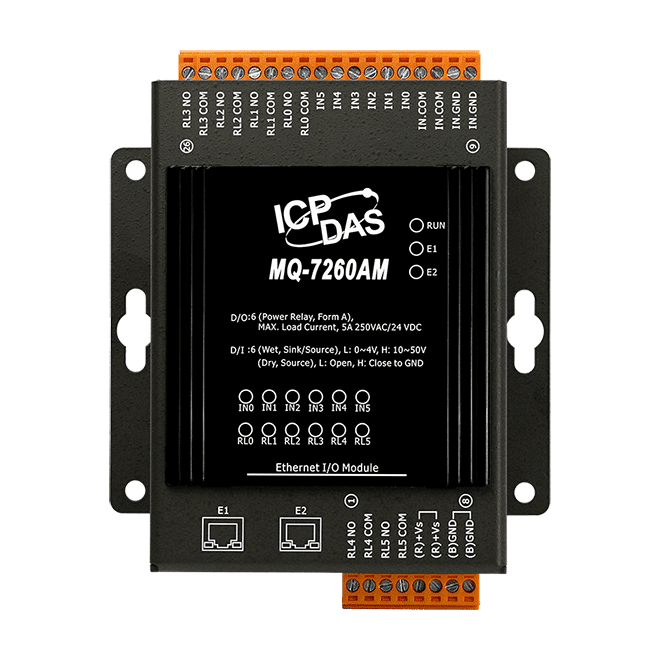

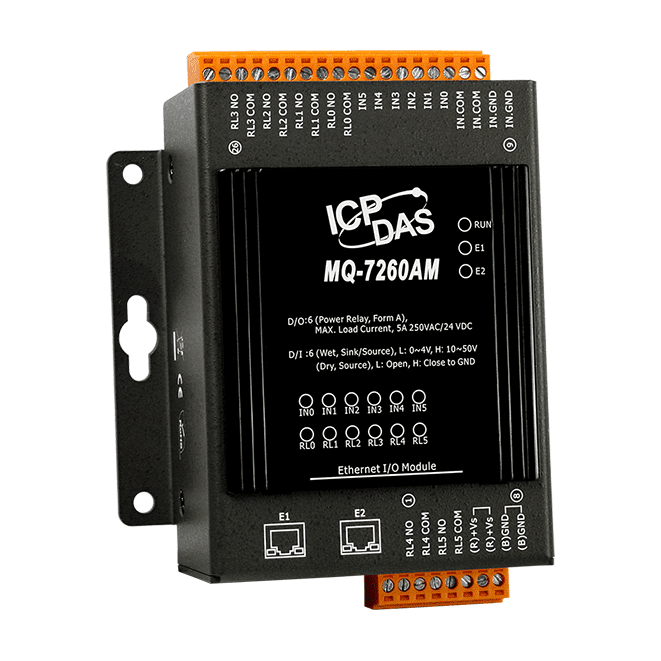

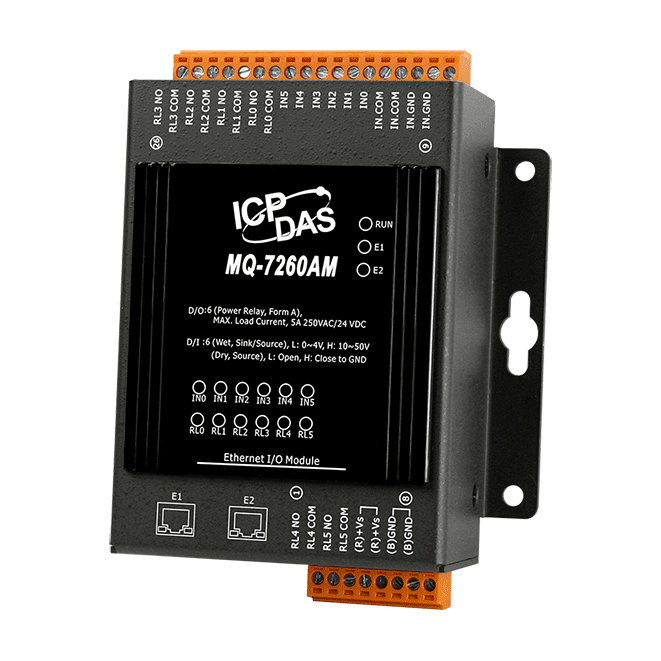

MQ-7260AM MQTT I/O Module with 6-ch DI and 6-ch Power Relay
MQTT and Modbus TCP Ethernet I/O module with 6 dry/wet digital inputs, 6 Form A power relay outputs and a 2-port switch for daisy-chain wiring.
- Six digital inputs supporting dry and wet contact types
- Six Form A (SPST N.O.) power relays rated 5 A @ 250 VAC/24 VDC (resistive load)
- MQTT 3.1 and Modbus TCP protocol support
- Built-in web server with web HMI for configuration and monitoring
- 2-port Ethernet switch with LAN bypass for daisy-chain wiring
- Dual watchdog: module and communication (programmable)
2.257,18 kr. pr. stk.
| 1–9 stk. | 2.257,18 kr. | |
|---|---|---|
| 10–30 stk. | 2.189,91 kr. | −3 % |
| 31+ stk. | 2.145,07 kr. | −5 % |
Produktinformation "MQ-7260AM MQTT I/O Module with 6-ch DI and 6-ch Power Relay"
The MQ-7260AM CR is an Ethernet I/O module for connecting digital sensors and switching loads in IIoT installations. It combines six digital inputs, which accept both dry and wet contacts, with six Form A power relay outputs, and reports status over MQTT 3.1 or Modbus TCP.
A built-in web server provides a browser-based interface, accessible from a computer or mobile device, for configuring the module, monitoring network and I/O status, and switching relay outputs. A 2-port 10/100 Base-TX switch with LAN bypass supports daisy-chain wiring, and dual watchdogs (module and communication) are available for supervision.
The module offers optical isolation with 3000 VDC transient overvoltage protection, but there is no channel-to-channel isolation. For inductive loads, fit a flyback diode on DC circuits or a metal oxide varistor on AC circuits to protect the relay contacts and extend relay life.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, MQTT 3.1 |
| Digital inputs: | 6 |
| Relay outputs: | 6 |
| Ports: | 2 |
| Isolation: | Optical, 3000 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |

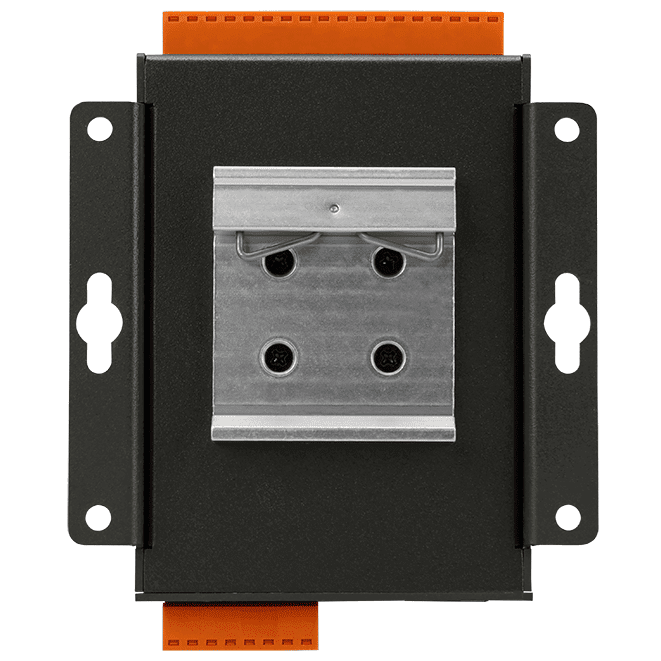

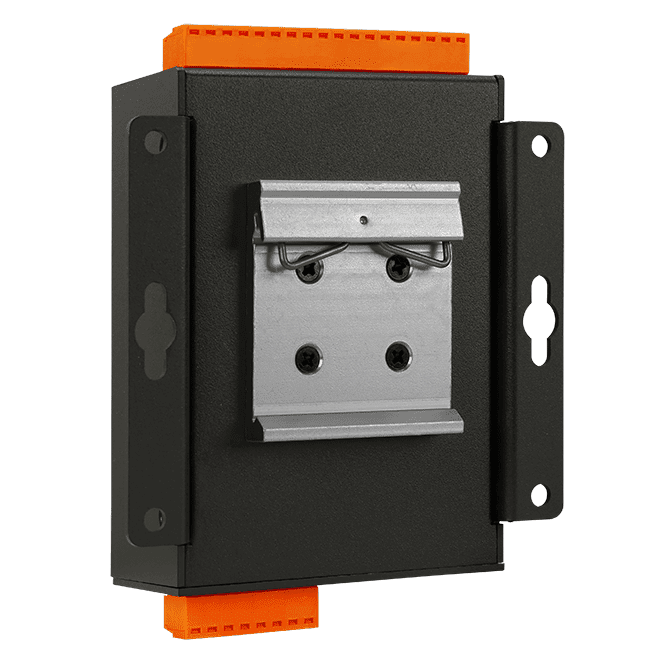

| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Digital Input | |
| Channels | 6 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 ~ +50 VDC |
| OFF Voltage Level | Dry: Open Wet: +4 VDC max. |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Effective Distance | 500m max. |
| Relay Output | |
| Channels | 6 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 5 A @ 250 VAC/24 VDC (Resistive Load) |
| Operate Time | 10 ms max. |
| Release Time | 5 ms max. |
| Electrical Endurance | 10^5 ops. |
| Mechanical Endurance | 2 × 10^7 ops. |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |

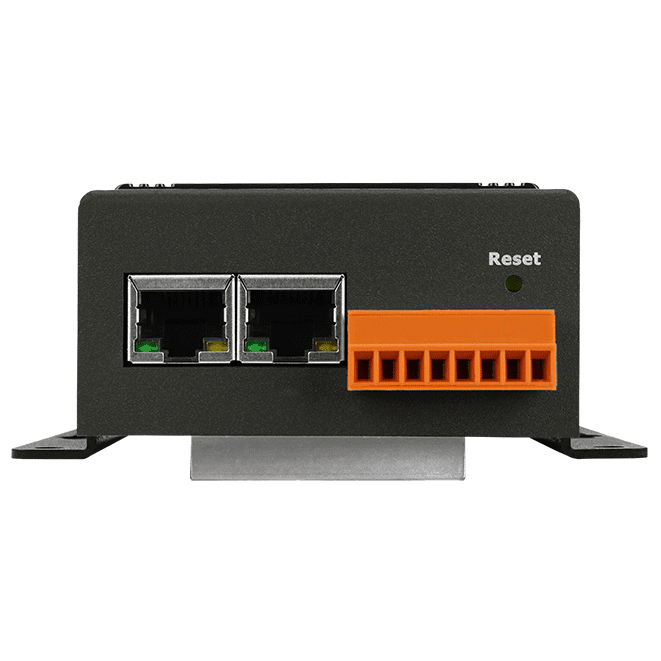

| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass | Yes |
| Protocol | MQTT 3.1 Modbus TCP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 3.6 W max. |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 97 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
