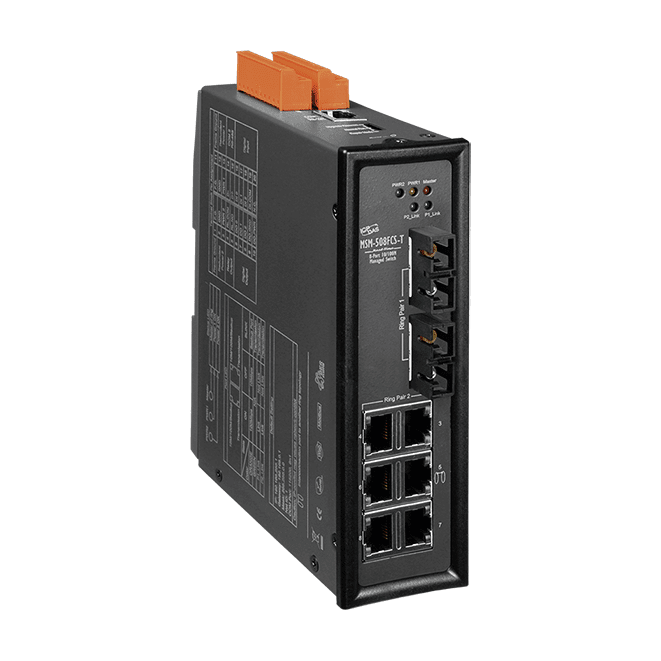

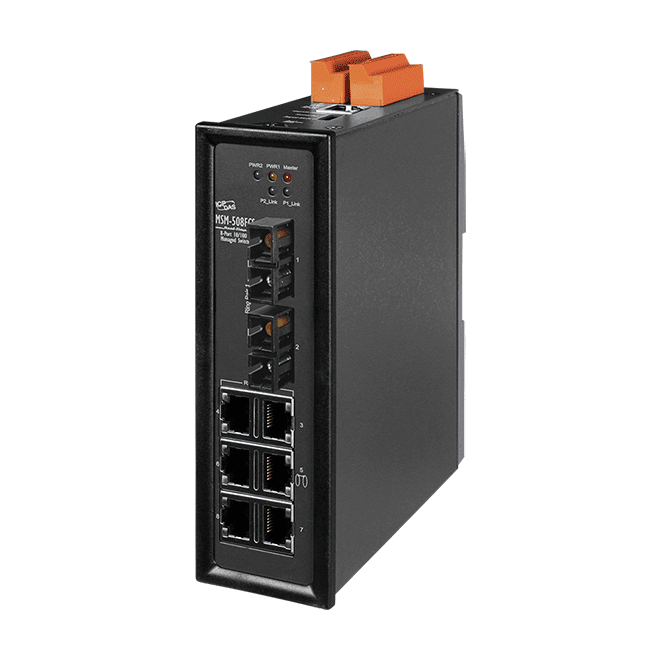

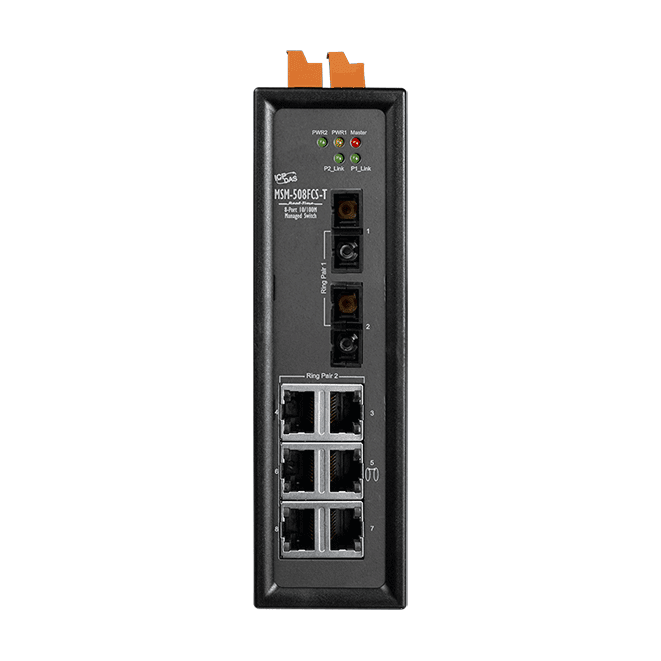

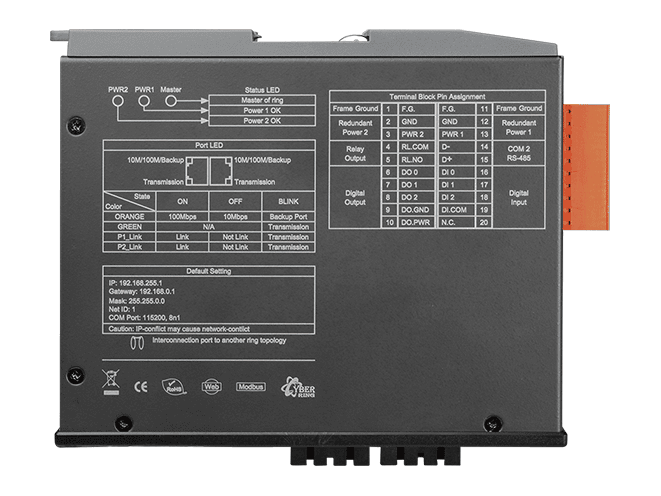

MSM-508FCS-T Layer 2 Managed Switch, 6x RJ-45 + 2-Port 100Base-FX SC Single-Mode
8-port Layer 2 managed Ethernet switch with two single-mode SC fibre ports, Cyber-Ring redundancy and fibre-optic isolation from electrical interference, for industrial networks.
- Layer 2 managed switch with 6 x RJ-45 10/100Base-TX ports and 2 single-mode 100Base-FX fibre ports with SC connectors
- Built-in Cyber-Ring redundant ring technique, typically recovering from a link failure in approximately 20 ms, alongside STP
- Store-and-forward architecture with wire-speed switching and a 2048-entry MAC table
- Managed via RS-232 console or Ethernet using Telnet or web browser
- VLAN (802.1Q tag-based and port-based), 802.1p QoS, port trunking, port mirroring and cable testing
- Modbus/TCP, Modbus/RTU and OPC support for SCADA monitoring of Ethernet and fibre port status
4.469,51 kr. pr. stk.
| 1–9 stk. | 4.469,51 kr. | |
|---|---|---|
| 10–30 stk. | 4.334,98 kr. | −3 % |
| 31+ stk. | 4.245,29 kr. | −5 % |
Produktinformation "MSM-508FCS-T Layer 2 Managed Switch, 6x RJ-45 + 2-Port 100Base-FX SC Single-Mode"
MSM-508FCS-T is an 8-port industrial Ethernet Layer 2 managed switch with two single-mode 100Base-FX fibre ports using SC connectors. Because data travels over fibre optic links, transmission is immune to EMI and RFI. It suits installations where the network must be kept clear of electrical exposure, surges, lightning and chemical corrosion.
The switch can be configured through its RS-232 console port or over Ethernet using Telnet or a web browser. Its management feature set includes 802.1Q tag-based VLAN, port-based VLAN, 802.1p QoS, port trunking, spanning tree, cable testing and port mirroring. The built-in Cyber-Ring technique allows several switches to be arranged in a redundant ring, typically recovering from a fibre or copper link failure in approximately 20 ms.

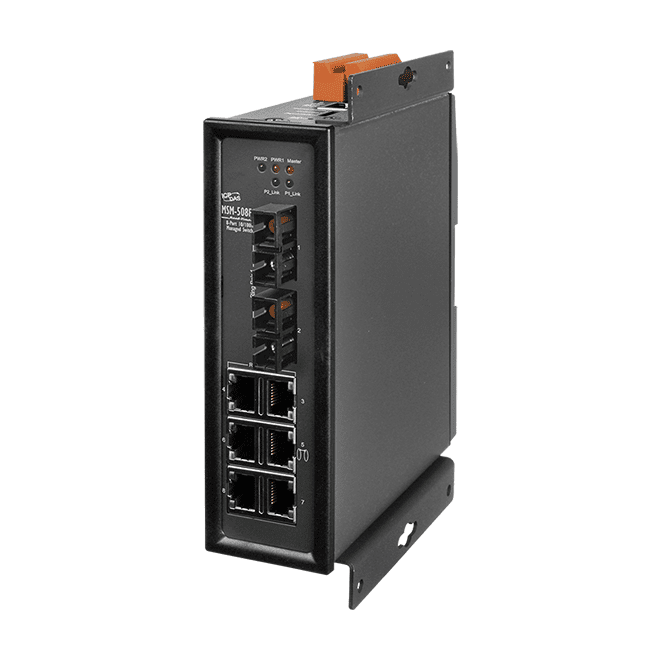

Two DC power inputs can be connected at the same time, so a failed supply is covered by the second live source. A relay alarm output signals power or network link failures, and Modbus/TCP, Modbus/RTU and OPC support allow a SCADA system to monitor the status of the Ethernet and fibre ports. This ordering code includes a CA-090510 console cable and a 4SIX1K0000003 wall mount.
Applications
- Industrial Ethernet backbones where transmission must be protected from electrical exposure, surges, lightning or chemical corrosion
- Redundant ring networks requiring fast link-failure recovery
- SCADA systems monitoring Ethernet and fibre port status over Modbus or OPC
| Product type: | Layer 2 managed switch |
|---|---|
| Interface: | 2x 100Base-FX SC, 6x RJ-45 |
| Protocol: | Modbus RTU, Modbus TCP, OPC |
| Digital inputs: | 3 |
| Digital outputs: | 3 |
| Relay outputs: | Alarm relay, 2 A @ 30 VDC |
| Ports: | 8 |
| Isolation: | 1500 Vrms 1 minute |
| Power input: | +12 VDC ~ +48 VDC, redundant dual inputs |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 10/100M, Link/Act, Full duplex/Half duplex (Fiber Port) |
| Ethernet | |
| Ports | 6 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u and 802.3x |
| Processing Type | Store & forward, wire speed switching |
| MAC Table | 2048 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | VLAN, QoS, Port Trunk, SMTP, TELNET |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, Normal Run / Repair Mode |
| Fiber | |
| Ports | 2-port 100 Base-FX SC connector |
| Mode | Single-Mode |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Distance | 30 km, (9/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310 nm |
| TX Output | -15 dBm Min. -8 dBm Max. |
| RX Sensitivity | -36 ~ -31 dBm |
| Digital Input | |
| Channels | 3 |
| Type | Wet Contact |
| ON Voltage Level | +19 VDC ~ +30 VDC |
| OFF Voltage Level | +11 VDC Max. |
| Digital Output | |
| Channels | 3 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Current | 30V/100 mA Max. |
| COM Ports | |
| Ports | 1 x RS-232 (Console) 1 x RS-485 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC Redundant Dual Inputs (Non-isolated) |
| Redundant Power Inputs | Yes |
| Consumption | 0.3 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 47 x 175 x 142 (W x L x H) Wall mounting: 51 x 190 x 142 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
