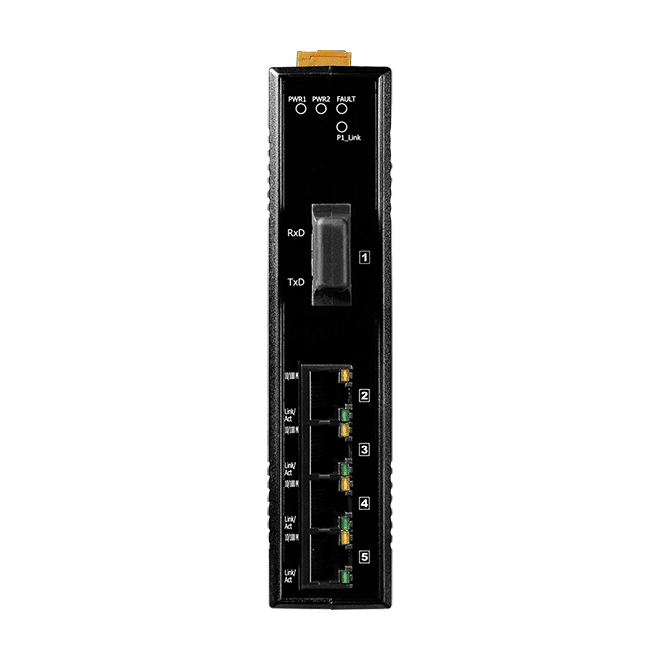

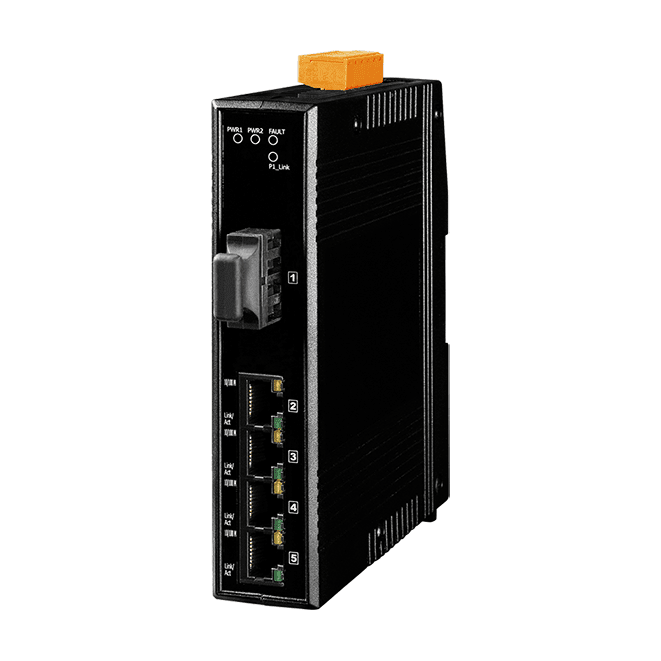

NS-205AFCS-60T Unmanaged Fiber Ethernet Switch, 4x 10/100M + 1x SC Single-Mode
Unmanaged switch with four 10/100Base-TX ports and one 100Base-FX single-mode SC fibre port for links up to 60 km, with redundant +12 to +48 VDC power inputs.
- Single-mode 100Base-FX fibre port with SC connector, rated for up to 60 km
- Four 10/100Base-TX RJ-45 ports, IEEE 802.3, 802.3u and 802.3x compliant

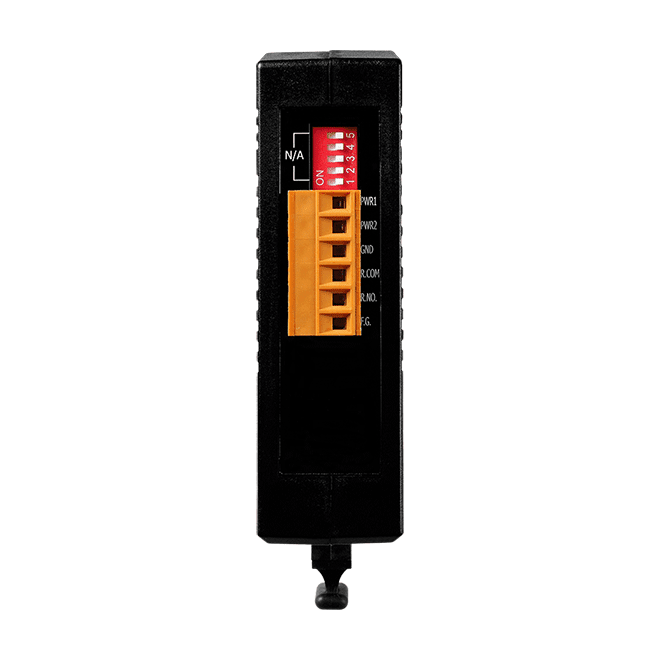

- Redundant dual +12 ~ +48 VDC power inputs with reverse polarity protection
- Relay alarm output rated 2 A @ 30 VDC for power fault signalling
- IEEE 802.3x flow control and broadcast storm protection
- Isolation of 1500 Vrms for 1 minute
2.167,52 kr. pr. stk.
| 1–9 stk. | 2.167,52 kr. | |
|---|---|---|
| 10–30 stk. | 2.100,25 kr. | −3 % |
| 31+ stk. | 2.055,41 kr. | −5 % |
Produktinformation "NS-205AFCS-60T Unmanaged Fiber Ethernet Switch, 4x 10/100M + 1x SC Single-Mode"
The NS-205AFCS-60T is an unmanaged Ethernet switch that combines four RJ-45 copper ports with one 100Base-FX single-mode fibre port. It suits engineers who need to extend a 10/100 Mbps segment over long distances while keeping electrical noise out of the link.
The fibre port uses an SC connector and supports up to 60 km, with 9/125 μm fibre recommended for full duplex operation. Redundant dual +12 to +48 VDC inputs with reverse polarity protection allow the switch to run from common industrial supply voltages without an external converter, and a relay alarm output reports power faults.
- Store and forward processing with a 2048-entry MAC table and 1 Mbit frame buffer memory
- Mounts on DIN-rail in a plastic housing measuring 31 x 157 x 123 mm (W x L x H)
- Operating range of -30 °C to +75 °C, suitable for demanding cabinet environments
Applications
- Long-distance 10/100 Mbps Ethernet links between buildings or remote machine sites
- Electrically noisy industrial environments where fibre isolates the link
- Industrial automation panels operating from 12 to 48 VDC supplies
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45, SC fiber |
| Protocol: | IEEE 802.3 |
| Ports: | 4 x RJ-45, 1 x SC |
| Isolation: | 1500 Vrms |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -30 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
| Status | PWR1, PWR2, PWR_Fault, Link/Act, 10/100M |
| Ethernet | |
| Ports | 4 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x |
| Processing Type | Store & forward |
| MAC Table | 2048 |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control |
| Isolation | 1500 Vrms 1 minute |
| Fiber | |
| Ports | 1 x 100 Base-FX, SC connector |
| Mode | Single-Mode |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Distance | 60 km, (9/125 μm recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -5 dBm Min. 0 dBm Max. |
| RX Sensitivity | -35 dBm |
| RX Overload | -5 dBm |
| Budget | 30 dBm |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +48 VDC (Redundant input) |
| Redundant Power Inputs | Yes |
| Consumption | 0.2 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 123 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
