NS-205PSE Unmanaged 5-port PoE (PSE) Ethernet Switch, 10/100 Mbps
Unmanaged 5-port 10/100 Mbps Ethernet switch with four IEEE 802.3af PoE (PSE) ports, up to 15.4 W per port, for DIN-rail mounting from -40 °C to +75 °C.
- Four IEEE 802.3af compliant PoE ports acting as PSE, up to 15.4 W per channel
- Five RJ-45 10/100Base-TX ports with auto negotiation and automatic MDI/MDI-X crossover
- Store-and-forward, wire speed switching with a 2048-entry MAC table and 768 Kbit frame buffer
- IEEE 802.3x and back pressure flow control
- Power input +46 VDC ~ +55 VDC with reverse polarity protection
- 1500 Vrms isolation and operating temperature -40 °C ~ +75 °C
1.263,12 kr. pr. stk.
| 1–9 stk. | 1.263,12 kr. | |
|---|---|---|
| 10–30 stk. | 1.225,75 kr. | −3 % |
| 31+ stk. | 1.195,86 kr. | −5 % |
Produktinformation "NS-205PSE Unmanaged 5-port PoE (PSE) Ethernet Switch, 10/100 Mbps"

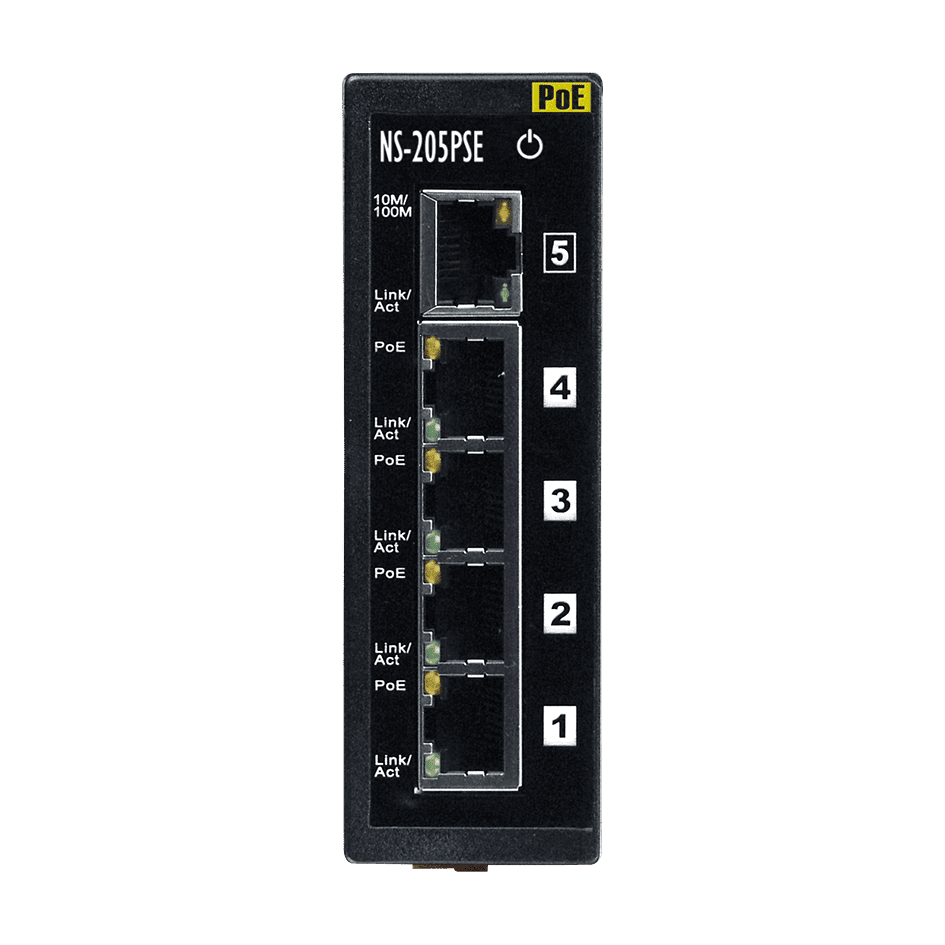

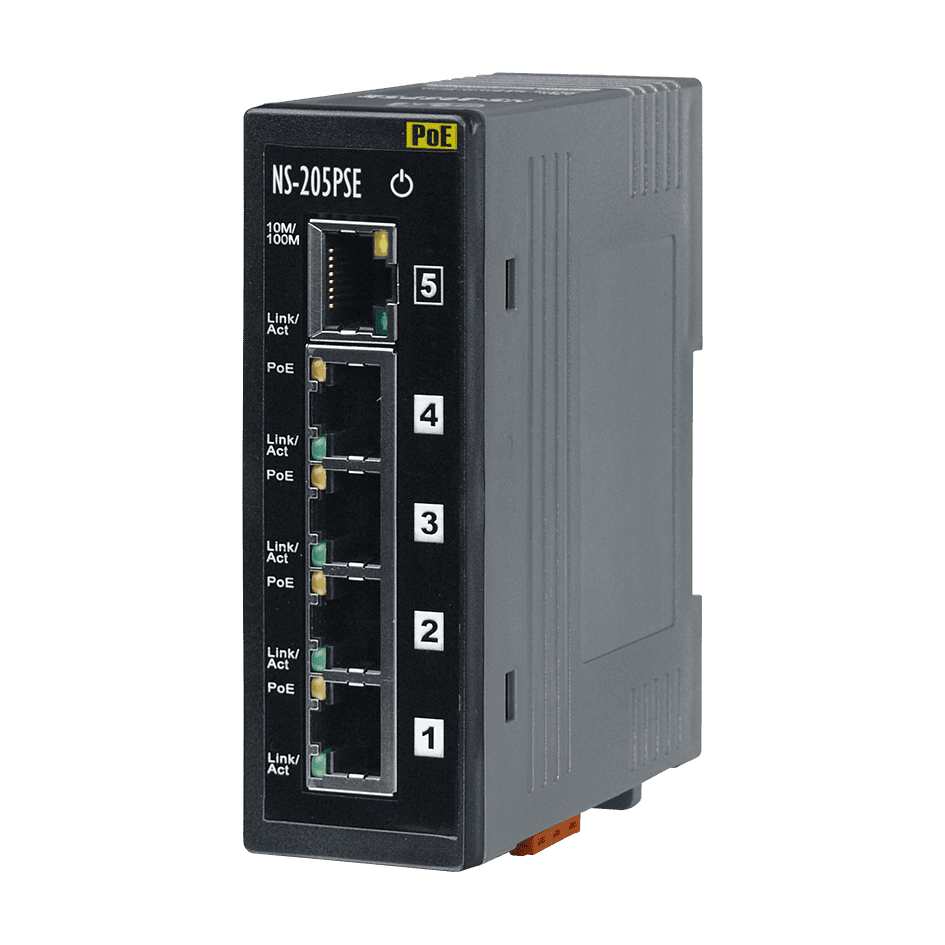

The NS-205PSE is an unmanaged industrial Ethernet switch with five RJ-45 10/100Base-TX ports, four of which act as IEEE 802.3af power sourcing equipment. It lets a single DC supply feed PoE-powered devices over the same cable that carries their data, which reduces the need for separate local power at each device location. Ordering code NS-205PSE CR.
Each port auto-negotiates between 10 and 100 Mbps and uses automatic MDI/MDI-X crossover, so straight or crossed cables can be used without configuration. Store-and-forward switching with full duplex IEEE 802.3x and half duplex back pressure flow control suits networks where reliable frame handling matters.

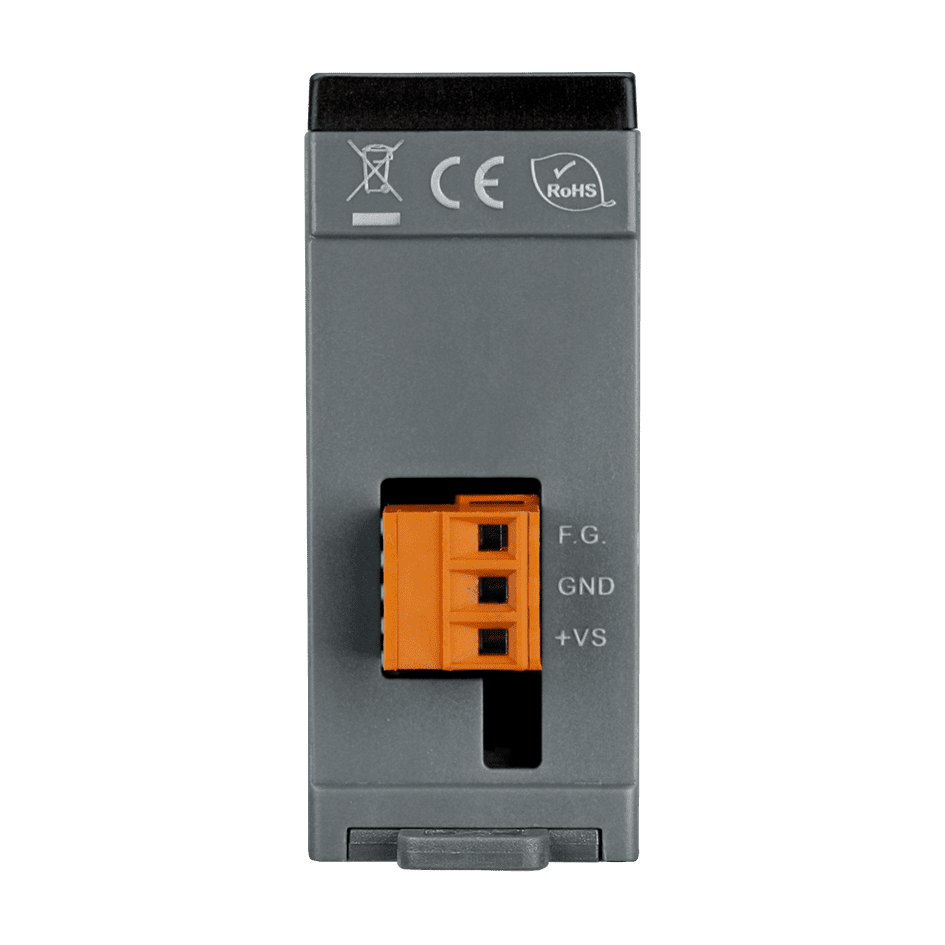

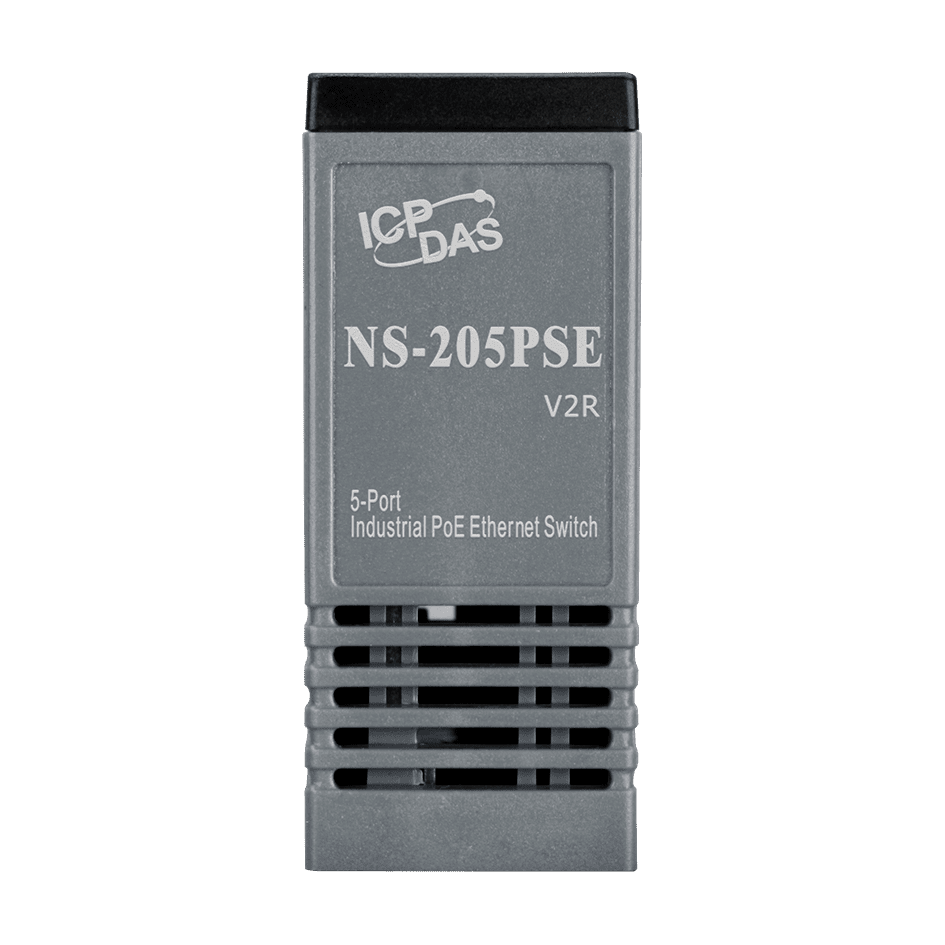

The unit accepts a +46 VDC to +55 VDC input with reverse polarity protection and is rated for operation from -40 °C to +75 °C. Its slim plastic housing mounts on a DIN rail, and it carries CE, UKCA, FCC, RoHS and WEEE markings.
Applications
- Centralised DC power distribution to PoE-powered Ethernet devices
- Industrial Ethernet networks in control cabinets and panels
- Compact DIN-rail installations in harsh temperature environments
| Product type: | Unmanaged Ethernet switch |
|---|---|
| Interface: | RJ-45 |
| Ports: | 5 |
| PoE: | 802.3af PSE, 4 ports |
| Isolation: | 1500 Vrms |
| Power input: | +46 VDC ~ +55 VDC |
| Operating temperature: | -40 °C ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | Power, Link/Act , 10/100M, Power Device is detected |
| Ethernet | |
| Ports | 5 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 2048 |
| Frame Buffer Memory | 768 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 watts per channel |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (Pin 1, 2), V- (Pin 3, 6) |
| PoE Disconnect Mode | DC disconnect |
| PoE Voltage | +48 VDC depending on power input |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +46 VDC ~ +55 VDC |
| Consumption | 0.05 A @ 48 VDC without PD loading 1.45 A @ 48 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 107 x 78 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
