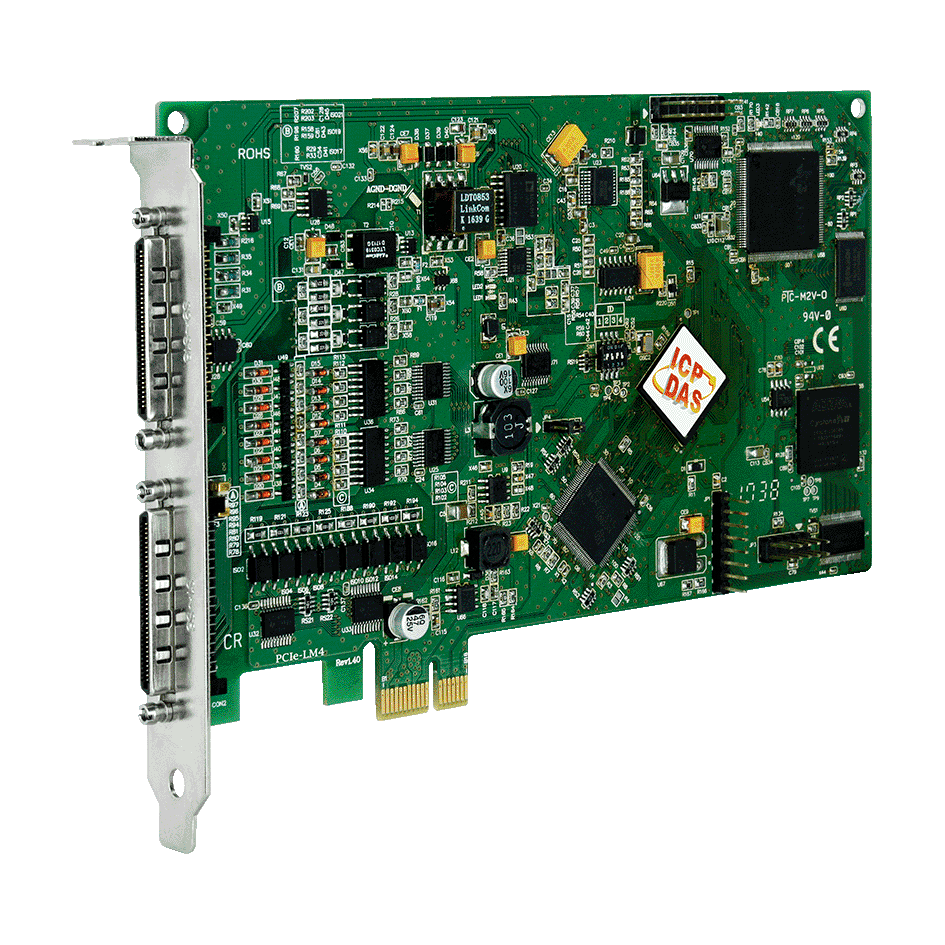

PCIe-LM4 PCI Express Board, 4-ch Load Cell Input and 2-axis Motion Control
PCIe-LM4 CR PCI Express multifunction card combining load cell and analog inputs, 2-axis pulse motion control, analog outputs and 16 isolated digital inputs and outputs.
- PCI Express x1 interface with a 32-bit data bus
- Four full-bridge strain gauge / load cell input channels with 24-bit resolution
- Four differential analog inputs, up to 15 kS/s sampling rate
- 2-axis pulse output and encoder input, pulse output up to 4 MHz
- Two 16-bit analog outputs with 512-sample FIFO and waveform generation
- 16 isolated digital inputs and 16 open-drain digital outputs, 2500 VDC isolation
8.505,53 kr. pr. stk.
| 1–9 stk. | 8.505,53 kr. | |
|---|---|---|
| 10–30 stk. | 8.251,41 kr. | −3 % |
| 31+ stk. | 8.079,50 kr. | −5 % |
Produktinformation "PCIe-LM4 PCI Express Board, 4-ch Load Cell Input and 2-axis Motion Control"
The PCIe-LM4 CR is a multifunction PCI Express x1 board for PC-based measurement and control. It brings together four strain gauge (load cell) inputs, four differential analog inputs, a 2-axis pulse output and encoder interface, two 16-bit analog outputs and sixteen isolated digital inputs and sixteen digital outputs on a single card.
Each load cell and analog input uses a 24-bit ADC with a sampling rate of up to 15 kS/s. The motion section supports CW/CCW, Pulse/DIR and EA/EB modes, which suits engineers who need pulse-based axis control and encoder feedback alongside sensor measurement in one host PC.
A 4-bit Card ID switch lets you tell boards apart in software when two or more PCIe-LM4 cards are fitted to the same computer. Software support includes DLL access and sample programs for several development environments.
Applications
- Load cell and strain gauge measurement
- Two-axis pulse-based motion control with encoder feedback
- Multi-channel analog and digital I/O in PC-based systems
| Product type: | DAQ board |
|---|---|
| Interface: | PCI Express x1 |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog inputs: | 4 |
| Analog outputs: | 2 |
| Ports: | 2 x SCSI VHDCI 68-pin |
| Isolation: | 2500 VDC |
| Power input: | 1 A @ +5 V |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | SCSI VHDCI 68-pin x 2 |
| Card ID | Yes (4-bit) |
| Encoder Input | |
| No. of Axes | 2-axis |
| Mode | A/B pulse, Up/Down |
| Ring Counter Mode | 32-bit |
| Counting Rate | 12 MHz (Max.) |
| Counter Width | 32-bit |
| Isolation | 3 KVrms |
| Pulse Output | |
| No. of Axes | 2-axis |
| Mode | CW/CCW, PULSE/DIR |
| Rate | 4 MHz (Max.) |
| Isolation | 3 KVrms |
| Analog Input | |
| Channels | 4 differential |
| Range | ±10 V, ±5 V, ±2.5 V, ±1.25 V |
| Resolution | 24-bit |
| Accuracy | 0.05% of FSR ±1 LSB @ 25°C, ±10 V |
| Sampling Rate | 15 kS/s |
| Input Impedance | 10,000 MΩ/4 pF |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Trigger Mode | Software |
| Data Transfer | Polling |
| Analog Output | |
| Channels | 2 |
| Range | ±5 V, ±10 V |
| Resolution | 16-bit |
| Accuracy | ±10 LSB |
| Response Time | 500 kS/s (Max.) |
| Voltage Output Capability | ±5 mA |
| Slew Rate | 2.8 V/µs |
| FIFO Size | 512 Samples |
| Operation Mode | Static update, Waveform generation |
| Digital Input | |
| Channels | 16 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source, Photo coupler isolated channel with common power or ground |
| ON Voltage Level | 5 ~ 24 V |
| OFF Voltage Level | 0 ~ 1 V |
| Response Speed | 4 kHz (Typical) |
| Trigger Mode | Static Update |
| Data Transfer | Polling |
| Isolation | 2500 VDC |
| Digital Output | |
| Channels | 16 |
| Sink/Source (NPN/PNP) | Sink, Open Drain |
| Operation Mode | Static Update |
| Load Current | 100 mA/+ 30V for each channel @100% duty |
| Response Speed | 4 kHz (Typical) |
| Isolation | 2500 VDC |
| DO Readback | No |
| Strain Gauge, Load Cell Input | |
| Channels | 4 |
| Type | Strain Gauge |
| Range | ±227 mV |
| Wiring | Full-Bridge |
| Accuracy | 0.05% of FSR ±1 LSB @ 25°C, ±10 V |
| Resolution | 24-bit |
| Sampling Rate | 15 kS/s |
| Impedance | 10,000 MΩ/4 pF |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Excitation Voltage Output | |
| Channels | 4 differential |
| Range | + 10V (all 4-ch shared the same settings) |
| Max. Load Current | Driving up to four 120-ohm loadcells |
| Timer/Counter/Frequency | |
| Channels | 2 |
| PC Bus | |
| Type | PCI Express x 1 |
| Data Bus | 32-bit |
| Power | |
| Consumption | 1 A @ +5 V |
| Mechanical | |
| Dimensions (mm) | 102 x 149 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
