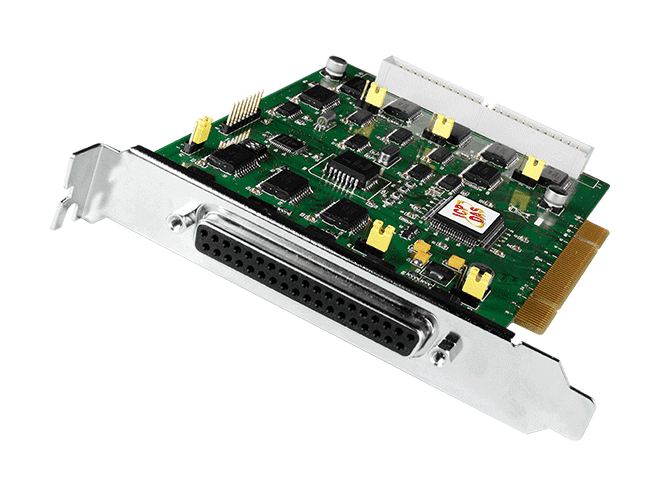

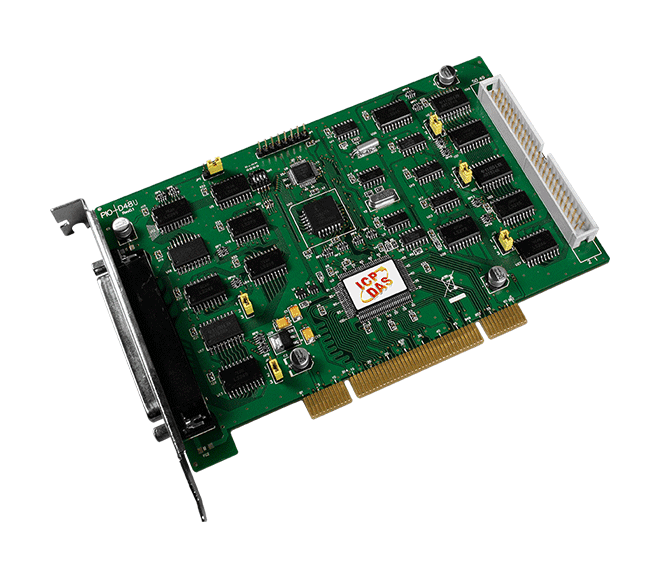

PIO-D48U Universal PCI Digital I/O Board, 48-ch TTL Buffered I/O
PIO-D48U universal PCI board with 48 buffered TTL digital I/O lines, six 8-bit bi-directional ports and 8255 PPI Mode 0 emulation for PC-based control.
- Universal PCI interface compatible with 3.3 V and 5 V bus signalling
- 48 buffered TTL digital I/O lines, typical response time of 1 MHz
- Six 8-bit bi-directional programmable ports, with 8255 PPI Mode 0 emulation for two ports
- 4-channel interrupt source
- Card ID switch (4-bit) for identifying boards in multi-card systems
- On-board pull-high/pull-low resistors for defined state on unconnected inputs
1.315,44 kr. pr. stk.
| 1–9 stk. | 1.315,44 kr. | |
|---|---|---|
| 10–30 stk. | 1.270,60 kr. | −3 % |
| 31+ stk. | 1.248,17 kr. | −5 % |
Produktinformation "PIO-D48U Universal PCI Digital I/O Board, 48-ch TTL Buffered I/O"
PIO-D48U is a 48-channel digital I/O board for industrial PCs, fitted to a universal PCI slot that accepts both 3.3 V and 5 V signalling. All 48 TTL lines are buffered on the board, which suits engineers who need to switch or sense signals directly from a PC without designing their own interface stage. The lines are organised as six 8-bit bi-directional ports, and the card emulates two industrial-standard 8255 PPI ports in Mode 0 for straightforward software migration.
Each board carries a 4-bit Card ID switch, so software can tell cards apart when two or more PIO-D48U boards are installed in one computer. On-board pull-high and pull-low resistors define a stable logic state for digital inputs that are left unconnected, rather than leaving them floating. Four interrupt sources and register-level readback of digital output status add to the control options.
Drivers and a DLL with an ActiveX control are supplied for Linux, DOS and Windows, along with sample programs for a range of development environments, including Visual C++, Delphi, Visual Basic, C#.NET and LabVIEW. This ordering code is the Universal PCI, 48-ch Digital I/O Board (RoHS) version.
Applications
- PC-based digital input and output monitoring and control
- Multi-card digital I/O systems in a single computer
- Interfacing TTL-level switches, relays and logic signals to a PC
- Software migration from 8255 PPI-based digital I/O designs
| Product type: | Digital I/O board |
|---|---|
| Interface: | Universal PCI (3.3 V/5 V) |
| Digital inputs: | 48 |
| Digital outputs: | 48 |
| Ports: | 6 x 8-bit |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 50-pin box header x 1 |
| Card ID | Yes (4-bit) |
| Digital Input | |
| Channels | 48 (Bi-Direction) |
| Type | 5 V/TTL |
| Sink/Source (NPN/PNP) | Sink: 64 mA @ 0.8 V Source: 32 mA @ 2.0 V |
| ON Voltage Level | Logic 1: 2.0 V Min. |
| OFF Voltage Level | Logic 0: 0.8 V Max. |
| Response Speed | 1 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 48 (Bi-Direction) |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Response Speed | 1 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 2 (Event Timer x 1/32-bit Timer x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
| Consumption | 900 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 156 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
