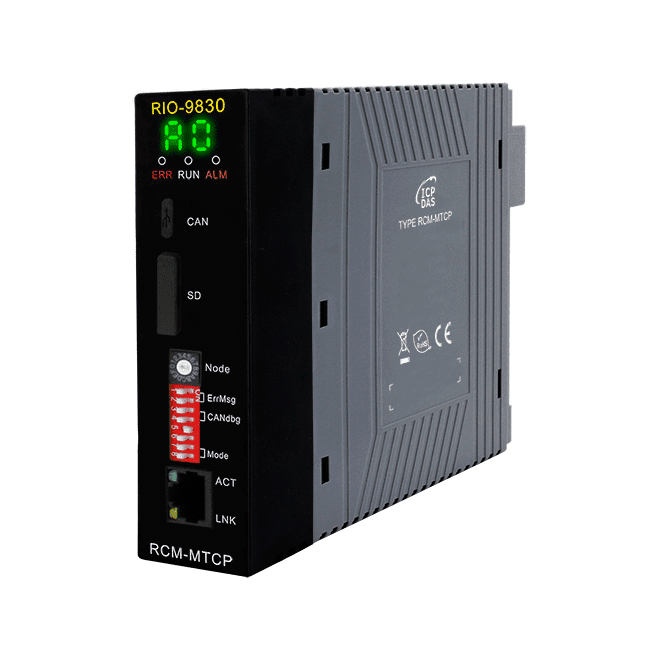

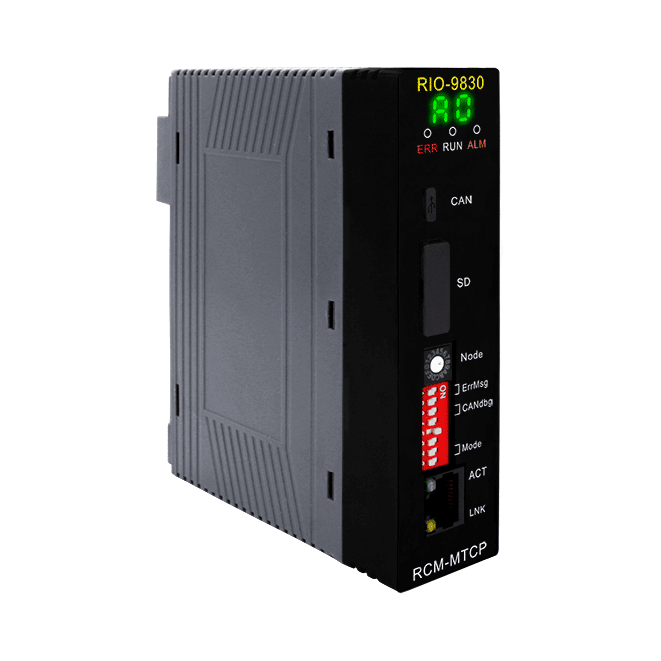

RCM-MTCP Modbus/TCP Communication Module for RIO-9830
Redundant Modbus/TCP server communication module for the RIO-9830 remote I/O system, with seven-segment exception display and SD card logging.
- Modbus/TCP server giving Modbus/TCP clients access to all RIO-9830 I/O information
- Communication redundancy so the system keeps running if a single communication module fails
- Seven-segment display for exception codes and built-in LED status indicators
- Rotary switch for setting the RIO-9830 network IP address
- SD card included for logging exception information
- 3000 VDC intra-module isolation between backplane and external signals
4.454,56 kr. pr. stk.
| 1–9 stk. | 4.454,56 kr. | |
|---|---|---|
| 10–30 stk. | 4.327,50 kr. | −3 % |
| 31+ stk. | 4.237,81 kr. | −5 % |
Produktinformation "RCM-MTCP Modbus/TCP Communication Module for RIO-9830"
The RCM-MTCP CR is a redundant communication module for the RIO-9830 remote I/O system. It runs a Modbus/TCP server, so a Modbus/TCP client can access and monitor all I/O data of the RIO-9830 over Ethernet without custom integration work.

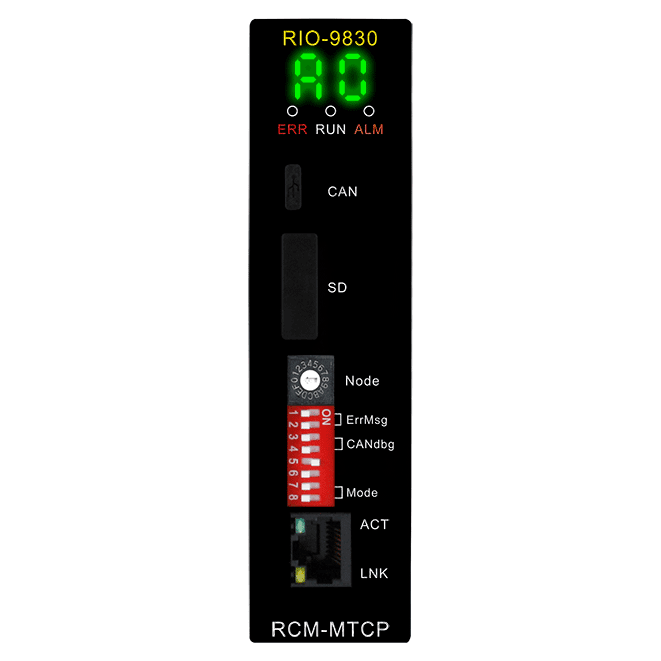

Commissioning and fault finding are supported on the module itself. A seven-segment display shows exception codes, LEDs indicate power, faults and link activity, and a rotary switch sets the network IP address. An SD card is included to record abnormal events for troubleshooting and later analysis.
The module provides 3000 VDC isolation between the backplane and external signals, which suits electrically noisy industrial sites. Because the system can be fitted with two communication modules, the RIO-9830 can continue operating if one module fails.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Communication module |
|---|---|
| Interface: | 10/100Base-TX |
| Protocol: | Modbus TCP |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +70 °C |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 Power, 2 Fault, 1 Link/Active/Speed |
| Ethernet | |
| Ports | 10/100BASE-TX (Auto negotiating, Auto MDIX) |
| Protocol | Modbus/TCP server |
| Power | |
| Consumption | 1.7 W |
| Mechanical | |
| Dimensions (mm) | 33 x 129 x 130 |
| Environment | |
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
