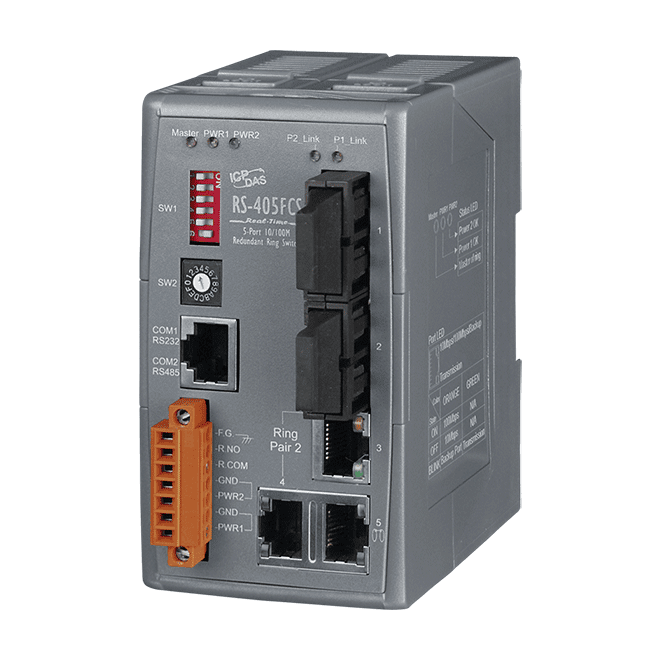

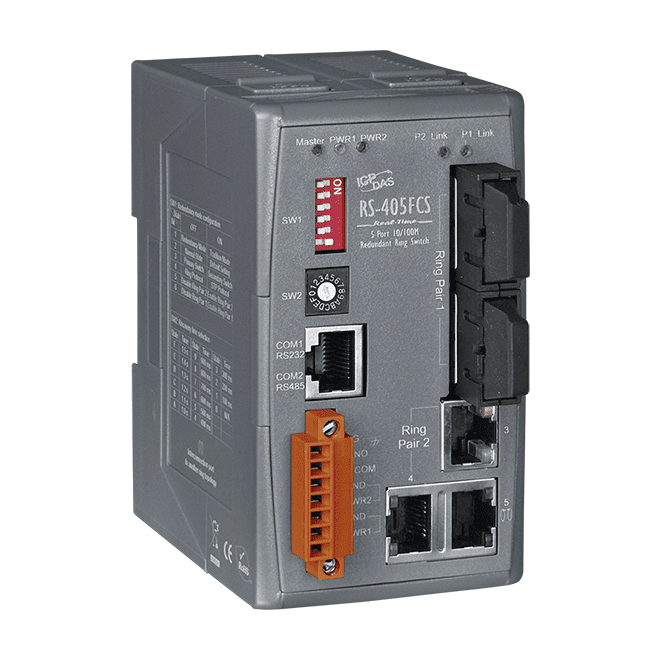

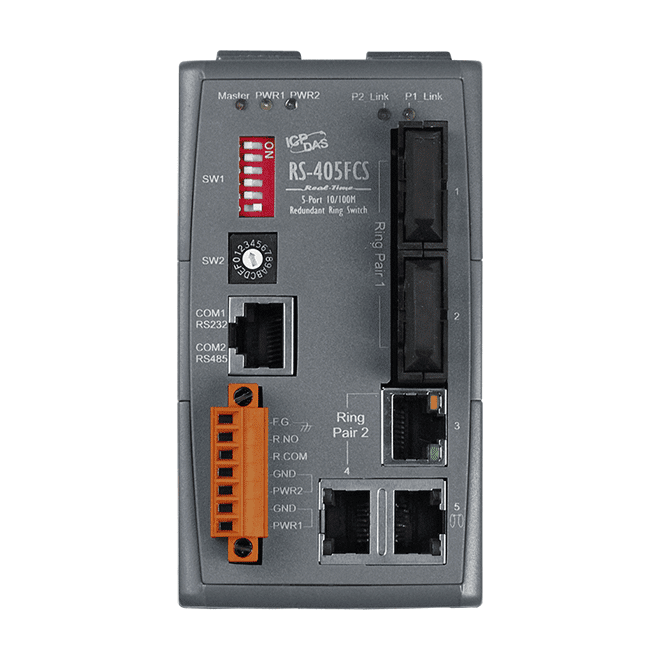

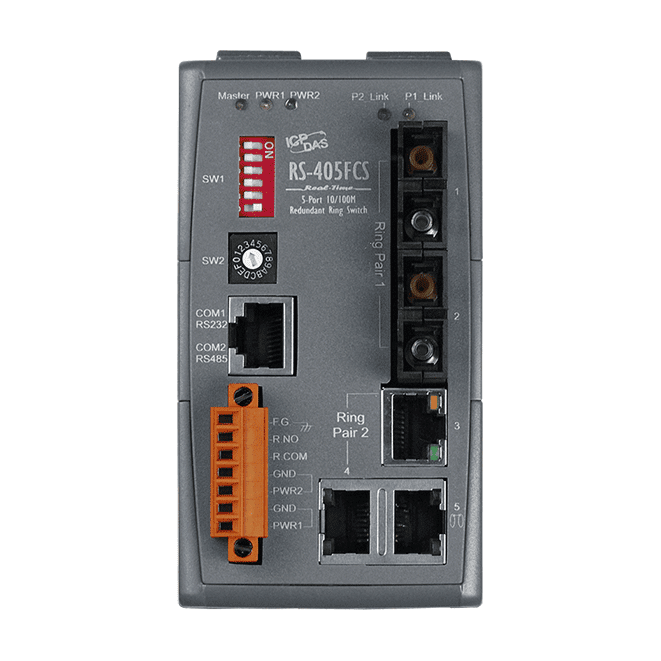

RS-405FCS 5-Port Redundant Ring Switch, 2-Fiber Single-Mode SC
Five-port industrial Ethernet redundant ring switch with three RJ-45 10/100Base-TX ports and two single-mode SC fibre ports, featuring Cyber-Ring redundancy and Modbus monitoring.
- Redundant ring operation with built-in Cyber-Ring technique, recovering from copper link failure in approximately 20 ms
- Three RJ-45 10/100Base-TX ports with automatic MDI/MDI-X crossover and speed auto-negotiation
- Two single-mode SC fibre ports at 100Base-FX, rated for 30 km in full duplex
- Redundant power inputs at +10 ~ +30 VDC with reverse polarity protection and relay power failure alarm
- Modbus/RTU and Modbus/TCP protocol support with Modbus remote monitoring and Modbus OPC Server
- Store-and-forward switching with 3.2 Gbps memory bandwidth, 512 Kbit frame buffer and 1024 MAC addresses
4.065,91 kr. pr. stk.
| 1–9 stk. | 4.065,91 kr. | |
|---|---|---|
| 10–30 stk. | 3.938,85 kr. | −3 % |
| 31+ stk. | 3.856,64 kr. | −5 % |
Produktinformation "RS-405FCS 5-Port Redundant Ring Switch, 2-Fiber Single-Mode SC"
The RS-405FCS is a five-port industrial Ethernet switch built for redundant ring topologies. It provides three shielded RJ-45 ports at 10/100Base-TX and two single-mode SC fibre ports at 100Base-FX. Its built-in Cyber-Ring technique lets multiple switches form a redundant ring, and it detects and recovers from a copper link failure within approximately 20 ms.
Setup needs no software. According to the source, one or two DIP or rotary switch settings are enough to put the unit into service. Two redundant power inputs accept +10 ~ +30 VDC, and a relay output signals a power failure or a network link failure. Modbus remote monitoring and Modbus OPC Server support are included.
The fibre ports support single-mode operation over up to 30 km in full duplex, with 9/125 fibre recommended. The unit operates from 0 °C to +70 °C and is designed for DIN-rail mounting.
Applications
- Industrial control and automation Ethernet networks
- Redundant Ethernet ring networks requiring single-mode fibre links
| Product type: | Redundant ring switch |
|---|---|
| Interface: | 10/100Base-TX, 100Base-FX |
| Protocol: | Modbus RTU, Modbus TCP |
| Relay outputs: | Yes |
| Ports: | 5 |
| Isolation: | 1500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | 0 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 10/100M, Link/Act/Backup, Full duplex/Half duplex (Fiber Port) |
| Ethernet | |
| Ports | 3 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE802.3x |
| Processing Type | Store & forward wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | Modbus/RTU, Modbus/TCP |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, 1x Redundancy mode confi guration 1x Max. Recovery time selection |
| Fiber | |
| Ports | 2-port 100 Base-FX SC connector |
| Mode | Single-Mode |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 gm |
| Distance | 30 km, (9/125 gm recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -15 dBm Min. -8 dBm Max. |
| RX Sensitivity | -34 dBm |
| RX Overload | -5 dBm |
| Budget | 19 dBm |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 0.4 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 64 x 118 x 101 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | 0 °C ~ + 70 °C |
| Storage Temperature | -20 °C ~ + 85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
