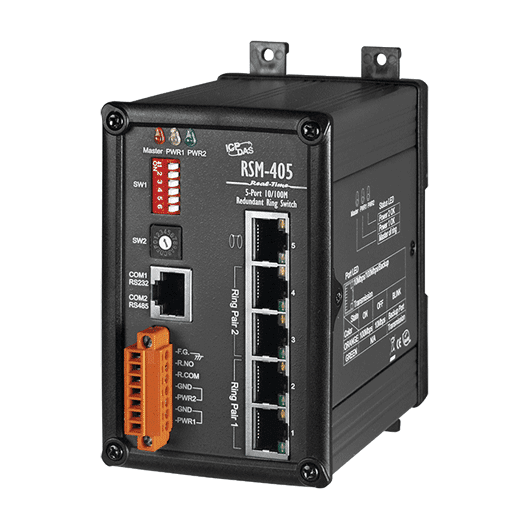

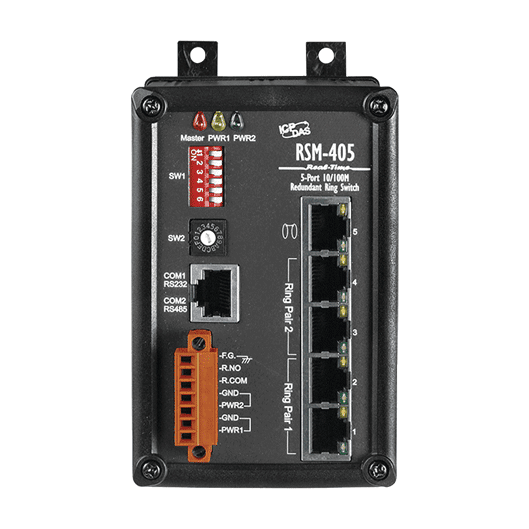

RSM-405 5-Port Redundant Ring Switch, 10/100Base-TX, Metal Case
5-port industrial Ethernet redundant ring switch with Cyber-Ring recovery from a copper link failure in about 20 ms, redundant +10 to +30 VDC inputs and a metal housing.
- Redundant ring switch with ICP DAS Cyber-Ring, recovering from a copper link failure in approximately 20 ms
- Five shielded RJ-45 ports at 10/100Base-TX with auto-negotiation and automatic MDI/MDI-X
- Store-and-forward switching with IEEE 802.3x and back pressure flow control, 2048 MAC addresses
- Redundant +10 to +30 VDC power inputs with isolation of 1500 Vrms for 1 minute
- Relay output for power failure or network link failure alarms, rated 2 A @ 30 VDC
- DIP switches set redundancy mode and maximum recovery time, with no software configuration needed
2.982,17 kr. pr. stk.
| 1–9 stk. | 2.982,17 kr. | |
|---|---|---|
| 10–30 stk. | 2.892,48 kr. | −3 % |
| 31+ stk. | 2.832,68 kr. | −5 % |
Produktinformation "RSM-405 5-Port Redundant Ring Switch, 10/100Base-TX, Metal Case"
The RSM-405 CR is a 5-port industrial Ethernet switch for building redundant ring networks. It uses ICP DAS Cyber-Ring technology so several switches can form a ring, and it typically detects and recovers from a copper link failure within about 20 ms, which is seamless for most applications.
Each RJ-45 port supports 10/100Base-TX with auto-negotiation and automatic MDI/MDI-X crossover. Redundancy mode and maximum recovery time are chosen with DIP switches, so the unit can be commissioned without any software configuration. The two DC inputs can be connected simultaneously, and a relay output signals a dual power or network link failure.
The metal casing carries an IP30 rating and operates from -40 °C to +75 °C. The CR ordering code includes the 4SNPNA010021G wall mount kit, and the unit can also be fitted to a DIN rail.
Applications
- Redundant Ethernet ring networks in industrial control and automation
- Industrial Ethernet backbones requiring fast copper link failure recovery
- Installations needing a power failure or link failure alarm signal via relay
| Product type: | Redundant ring switch |
|---|---|
| Interface: | RJ-45 |
| Protocol: | Modbus RTU, Modbus TCP |
| Relay outputs: | Yes |
| Ports: | 5 |
| Isolation: | 1500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| LED Indicators | |
|---|---|
| Status | Power, 10/100M, Link/Act, Master |
| Ethernet | |
| Ports | 5 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE802.3x |
| Processing Type | Store & forward wire speed switching |
| MAC Table | 2048 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | Modbus/RTU, Modbus/TCP |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, 1x Redundancy mode confi guration 1x Max. Recovery time selection |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC (Isolation redundant input) |
| Consumption | 0.22 A @ 24 VDC, +/-5% arrowed with 100M Full duplex |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 73 x 118 x 103 (W x L x H) Wall mounting: 73 x 132 x 103 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | -40 °C ~ + 75 °C |
| Storage Temperature | -40 °C ~ + 85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
