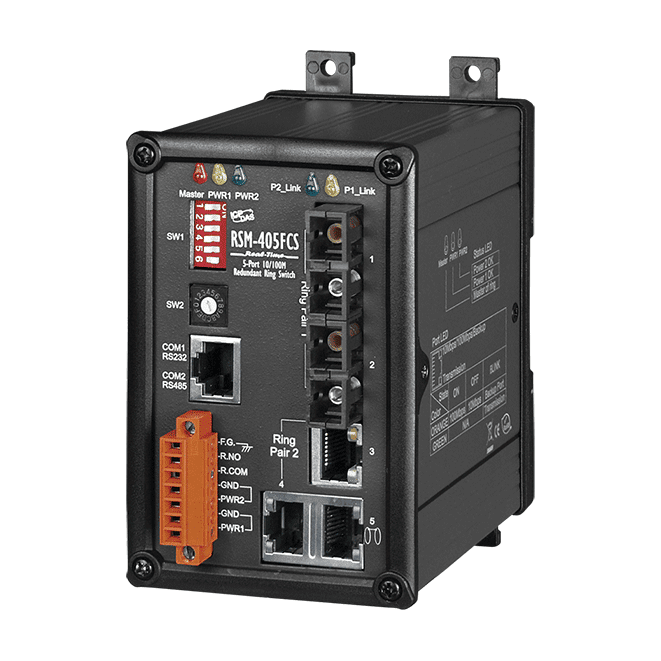

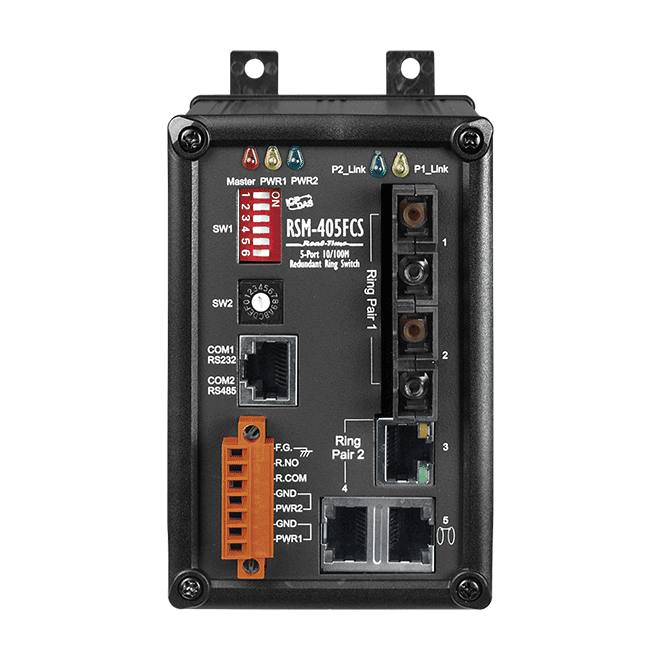

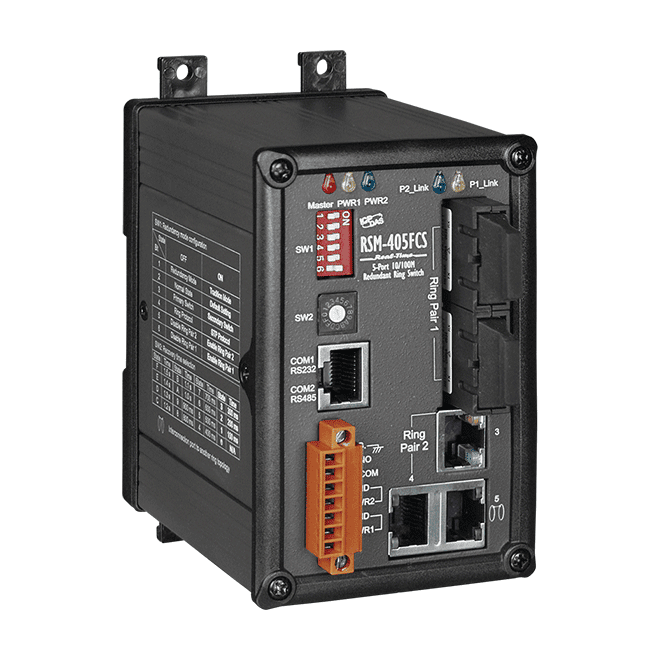

RSM-405FCS Real-Time Redundant Ring Switch, 5-Port, Single-Mode Fibre SC
5-port industrial Ethernet ring switch with a 2-fibre single-mode SC port, Cyber-Ring redundancy and Modbus monitoring, for DIN-rail or wall mounting.
- Built-in Cyber-Ring redundancy, with recovery from a copper link failure in approximately 20 ms
- 2-port 100Base-FX single-mode fibre with SC connectors, rated up to 30 km for full duplex (9/125 µm recommended)
- Redundant +10 VDC to +30 VDC power inputs with reverse polarity protection and relay alarm output
- Modbus/RTU and Modbus/TCP remote monitoring, plus Modbus OPC Server support
- Three 10/100Base-TX RJ-45 ports with auto-negotiation and automatic MDI/MDI-X crossover
- Store-and-forward switching with 3.2 Gbps memory bandwidth and a 1024-entry MAC table
4.320,03 kr. pr. stk.
| 1–9 stk. | 4.320,03 kr. | |
|---|---|---|
| 10–30 stk. | 4.185,50 kr. | −3 % |
| 31+ stk. | 4.103,28 kr. | −5 % |
Produktinformation "RSM-405FCS Real-Time Redundant Ring Switch, 5-Port, Single-Mode Fibre SC"
RSM-405FCS is a 5-port industrial Ethernet switch built for redundant ring networks. It combines three 10/100Base-TX copper ports with a 2-port 100Base-FX single-mode fibre uplink using SC connectors, and its built-in Cyber-Ring technique lets several switches form a self-recovering ring. Engineers choose it when a control network needs fast link-failure recovery over a mix of copper and long-reach fibre.
Configuration is kept simple. Ports use automatic MDI/MDI-X crossover, and redundancy mode and maximum recovery time are set with DIP switches. The unit accepts redundant +10 VDC to +30 VDC power inputs, and a relay output signals a power failure or network link fault to the control system.
The metal casing is rated IP30 and operates from 0 °C to +70 °C. It mounts on a DIN rail or on a wall, and the wall-mount bracket is supplied with this ordering code. Remote monitoring is available over Modbus/RTU and Modbus/TCP, with support for a Modbus OPC Server.
Applications
- Industrial control and automation
- Redundant Ethernet ring networks
| Product type: | Redundant ring switch |
|---|---|
| Interface: | Ethernet, SC fibre |
| Protocol: | Modbus/RTU, Modbus/TCP |
| Ports: | 5 |
| Isolation: | 1500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | 0 ~ +70 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 10/100M, Link/Act/Backup, Full duplex/Half duplex (Fiber Port) |
| Ethernet | |
| Ports | 3 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE802.3x |
| Processing Type | Store & forward wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | Modbus/RTU, Modbus/TCP |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, 1x Redundancy mode confi guration 1x Max. Recovery time selection |
| Fiber | |
| Ports | 2-port 100 Base-FX SC connector |
| Mode | Single-Mode |
| Fiber Cable | 8.3/125, 8.7/125, 9/125 or 10/125 gm |
| Distance | 30 km, (9/125 gm recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -15 dBm Min. -8 dBm Max. |
| RX Sensitivity | -34 dBm |
| RX Overload | -5 dBm |
| Budget | 19 dBm |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 0.4 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 73 x 118 x 105 (W x L x H) Wall mounting: 73 x 132 x 105 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | 0 °C ~ + 70 °C |
| Storage Temperature | -20 °C ~ + 85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
