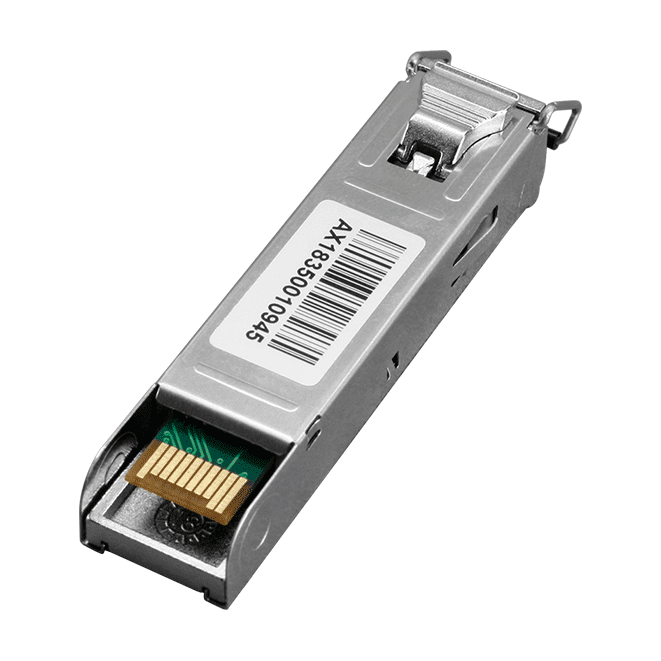

SFP-1G13M-SX2 1000Base-SX2 Multi-mode SFP Module, 1310 nm, 2 km
1000Base-SX2 multi-mode SFP module with an LC connector, operating at 1310 nm over up to 2 km. Hot-pluggable for adding fibre Ethernet links to fibre switches.
- 1000Base-SX2 gigabit speed over multi-mode fibre
- LC fibre connector
- 1310 nm wavelength
- Distance rating of 2 km
- Hot-plugging support for easy extension
- Operating temperature of -40 ~ +85 °C
575,51 kr. pr. stk.
| 1–9 stk. | 575,51 kr. | |
|---|---|---|
| 10–30 stk. | 553,08 kr. | −4 % |
| 31+ stk. | 545,61 kr. | −5 % |
Produktinformation "SFP-1G13M-SX2 1000Base-SX2 Multi-mode SFP Module, 1310 nm, 2 km"
The SFP-1G13M-SX2 is a 1000Base-SX2 SFP transceiver for multi-mode fibre links with an LC connector. It operates at 1310 nm and is rated for distances up to 2 km, making it a practical choice when a fibre switch needs an extra gigabit uplink or port.
Because the module is hot-pluggable, it can be fitted or replaced while the host switch is running, which simplifies network expansion and maintenance. According to the manufacturer, moving the Ethernet connection onto fibre also helps reduce EMI and noise interference compared with copper wiring.
The ordering code SFP-1G13M-SX2 CR is the item sold here. Its operating temperature range of -40 ~ +85 °C suits demanding industrial cabinets. The module carries CE, UKCA, FCC, RoHS and WEEE certification markings.
Applications
- Extending Ethernet connectivity on fibre switches
- Gigabit fibre uplinks and links within industrial networks
| Product type: | SFP module |
|---|---|
| Interface: | LC |
| Operating temperature: | -40 ~ +85 °C |
Specifikationer
| Fiber | |
|---|---|
| Connector | LC |
| Speed | 1000Base-SX2 |
| Mode | Multi-mode |
| Distance | 2 km |
| Wavelength | 1310 nm |
| Environment | |
| Operating Temperature | -40 ~ +85 °C |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
