SFP-1G13S-LX20 1000Base-LX20 Single-mode SFP Module, 1310 nm, 20 km
Single-mode 1000Base-LX20 SFP transceiver with an LC connector, 1310 nm wavelength and 20 km reach, for fibre switch uplinks and links. Rated for -40 ~ +85 °C operation.
- 1000Base-LX20 gigabit single-mode fibre link
- Up to 20 km reach at 1310 nm wavelength
- LC fibre connector
- Hot-pluggable SFP form factor
- Operating temperature range of -40 ~ +85 °C
- Fibre connectivity reduces EMI and noise interference on Ethernet wiring
448,45 kr. pr. stk.
| 1–9 stk. | 448,45 kr. | |
|---|---|---|
| 10–30 stk. | 433,50 kr. | −3 % |
| 31+ stk. | 426,03 kr. | −5 % |
Produktinformation "SFP-1G13S-LX20 1000Base-LX20 Single-mode SFP Module, 1310 nm, 20 km"

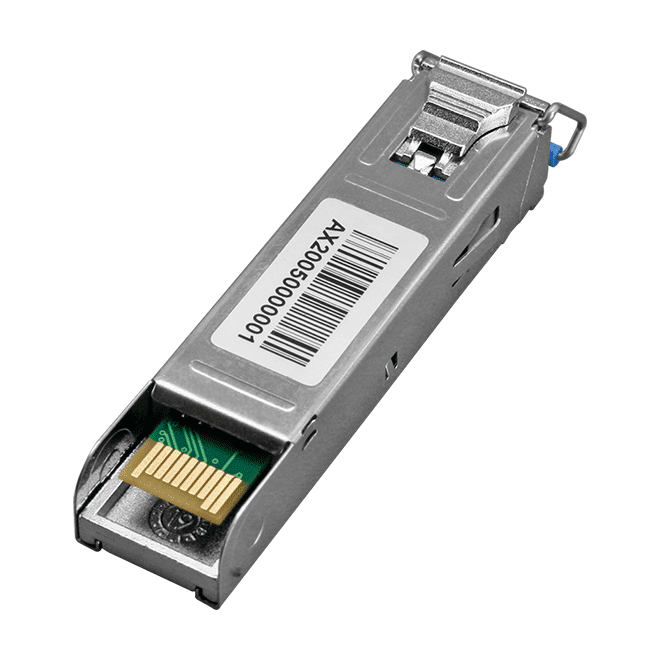

The SFP-1G13S-LX20 CR is a 1000Base-LX20 small form-factor pluggable module for single-mode fibre links of up to 20 km. Operating at a 1310 nm wavelength with an LC connector, it is intended for use with fibre switches where long-reach gigabit connectivity is needed without copper cabling.
Because the module supports hot plugging, it can be fitted or replaced while the host equipment is running, which simplifies network extension and maintenance. Moving the link onto fibre also helps reduce EMI and noise interference on the Ethernet wiring.
Key specifications from the manufacturer data:
- Speed: 1000Base-LX20
- Mode: Single-mode, LC connector
- Wavelength: 1310 nm
- Distance: 20 km
- Operating temperature: -40 ~ +85 °C
Applications
- Gigabit uplinks and extensions for fibre switches
- Long-distance single-mode Ethernet links in industrial networks
| Product type: | SFP module |
|---|---|
| Interface: | LC |
| Operating temperature: | -40 ~ +85 °C |
Specifikationer
| Fiber | |
|---|---|
| Connector | LC |
| Speed | 1000Base-LX20 |
| Mode | Single-mode |
| Distance | 20 km |
| Wavelength | 1310 nm |
| Environment | |
| Operating Temperature | -40 ~ +85 °C |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
