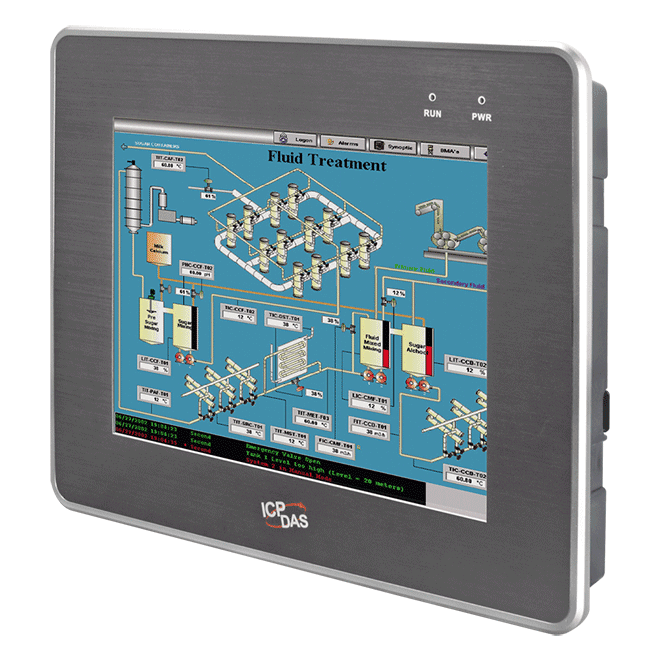

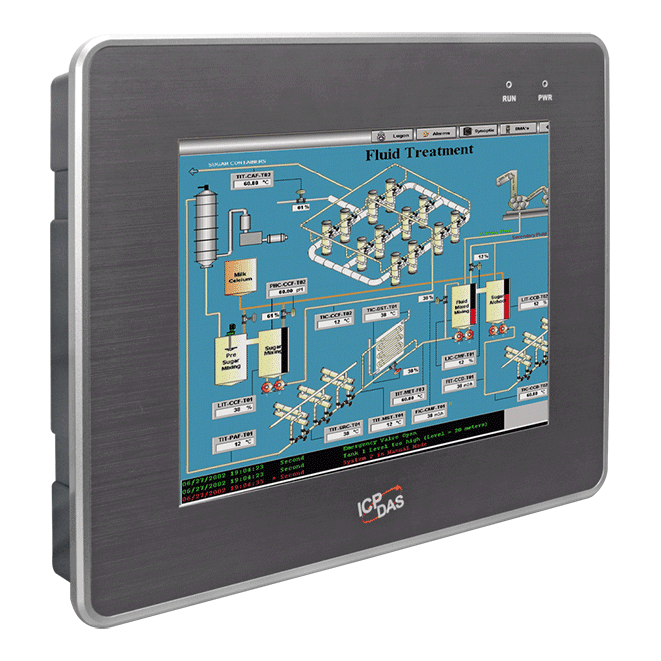

TP-3080 8.4" Resistive Touch Panel Monitor, 800 x 600 with RS-232/USB
8.4-inch 800 x 600 resistive touch monitor with RS-232 or USB interface, IP65 front panel and -20 ~ +70 °C operating range, for panel or VESA mounting.
- 8.4-inch LCD with 800 x 600 resolution and 400 cd/m2 brightness
- 5-wire analogue resistive touch panel with 80% light transmission
- Front panel rated IP65 with a rugged aluminium bezel
- Full-function OSD controls for brightness, contrast, clock, phase, position and sharpness
- RS-232 (combo) or USB touch interface, as selected in the CR ordering option
- Driver support for Windows, Windows IoT, WinCE and Linux
6.173,69 kr. pr. stk.
| 1–9 stk. | 6.173,69 kr. | |
|---|---|---|
| 10–30 stk. | 5.994,31 kr. | −3 % |
| 31+ stk. | 5.867,25 kr. | −5 % |
Produktinformation "TP-3080 8.4" Resistive Touch Panel Monitor, 800 x 600 with RS-232/USB"
The TP-3080 CR is an 8.4-inch LCD touch monitor for operator interfaces on industrial machines and control cabinets. It pairs an 800 x 600 display with a 5-wire analogue resistive touch layer, so it can be operated with a finger, a gloved hand or a stylus. The CR variant ships with a power supply and a touch interface of RS-232 or USB, as set out in the ordering description.

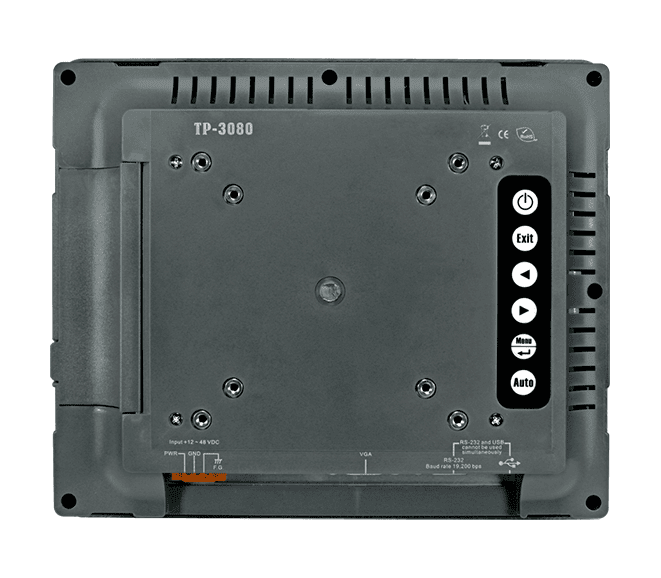

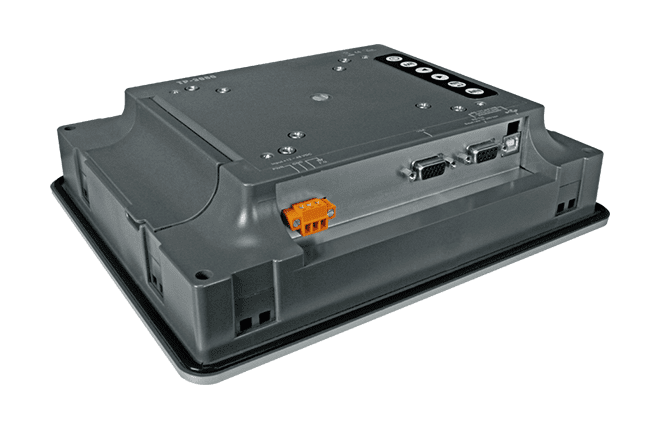

The front panel is rated IP65 and the display is adjusted through full-function on-screen display controls covering brightness, contrast, clock, phase, horizontal and vertical position, and sharpness. Two LED indicators show power and display status. Installation is possible with panel mounting or VESA mounting at 75 mm x 75 mm or 100 mm x 100 mm.
Driver support is listed for Windows, Windows IoT, Windows Embedded Standard, Windows Embedded Compact (WinCE) and Linux. The unit is specified for an operating range of -20 ~ +70 °C and a 12 ~ 48 VDC supply input, making it suitable as a local HMI for ICP DAS PAC controllers such as the WP8000 series, LinPAC series and XP-9000 series.
Applications
- Local operator interface (HMI) for ICP DAS PAC control systems such as the WP8000, LinPAC and XP-9000 series
- Panel-mounted touch operator stations in control cabinets and machine enclosures
| Product type: | Touch monitor |
|---|---|
| Interface: | RS-232, USB |
| Ports: | 1 x RS-232, 1 x USB |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | Panel, VESA |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS Support | Windows 10/11/ 8/7/ XP (32/64-bit), Windows 10 IoT Enterprise, Windows Embedded Standard 7 Windows Embedded Compact (WinCE 5.0/6.0/7.0), Linux (32/64-bit) |
| Display | |
| Size | 8.4" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, analog resistive; light transmission: 80% |
| Contrast Ratio | 500：1 |
| LED Indicators | |
| Status | 1 x Power, 1 x Display |
| HMI | |
| OSD Control | Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position and Sharpness |
| COM Ports | |
| Ports | 1 x RS-232 (Combo) |
| USB | |
| Ports | 1 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 7.0 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 249 x 207 x 65 (W x L x H) |
| Installation | Panel Mounting, VESA Mounting (75 mm x 75 mm, 100 mm x 100 mm) |
| Ingress Protection Rating | Front panel: IP65 |
| Weight | 1020 g |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
